Toyota COROLLA Headlamp — Figure 8101

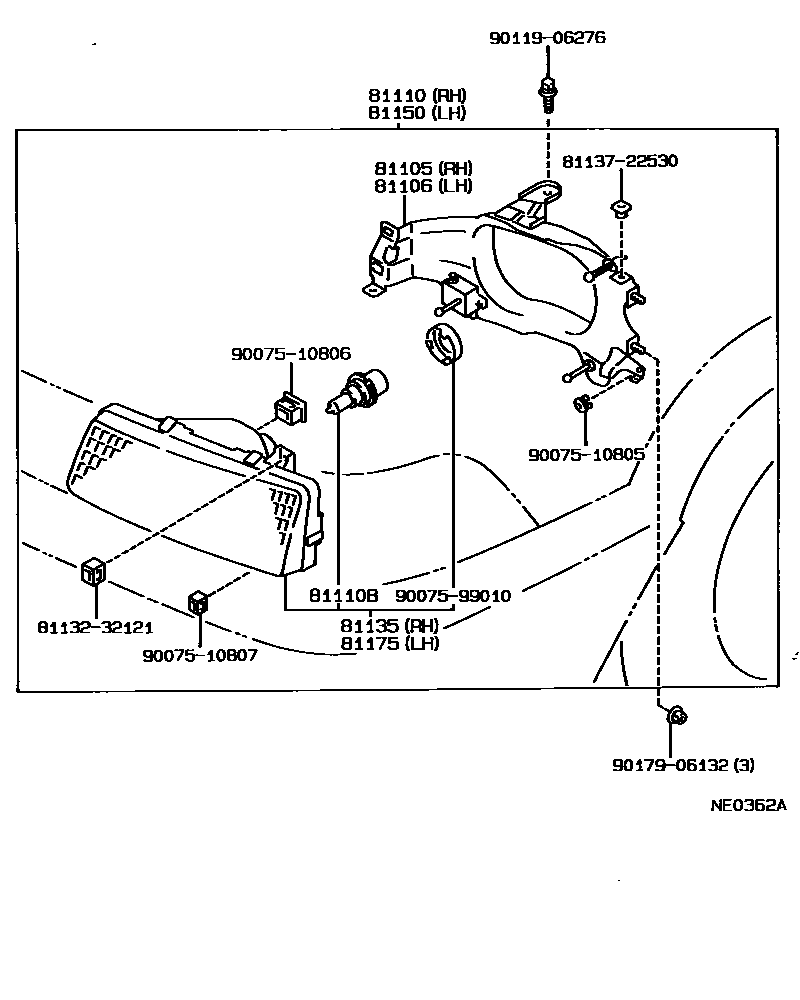

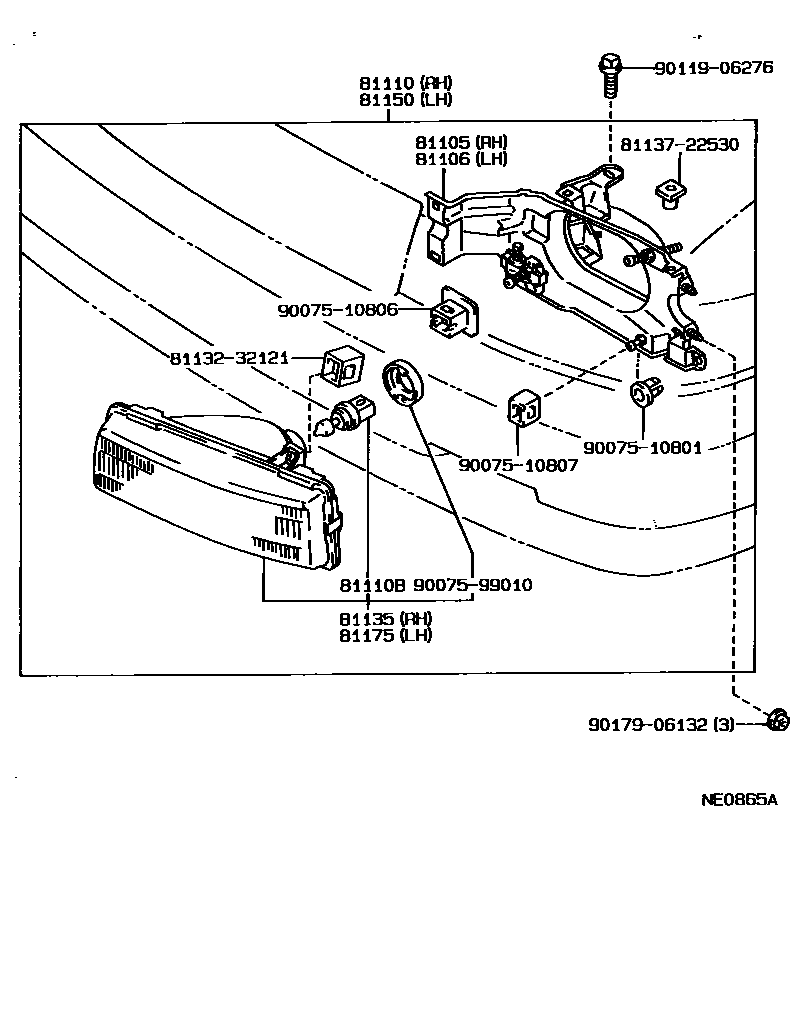

Toyota COROLLA EPC diagram 8101, Headlamp, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81105 | Right headlight housing sub-assembly | 81105-1A660 · 81105-1A750 |
| 81106 | Left headlight housing sub-assembly | 81106-1A660 · 81106-1A750 |
| 81110 | Right headlight assembly | 81110-1A660 · 81110-1A750 |
| 81110B | Bulb (for headlight No. 1) | 90981-13032 |
| 81135 | Right headlight assembly | 81130-1A660 · 81130-1A750 |
| 81150 | Left headlight assembly | 81150-1A660 · 81150-1A750 |
| 81175 | Left headlight assembly | 81170-1A660 · 81170-1A750 |
