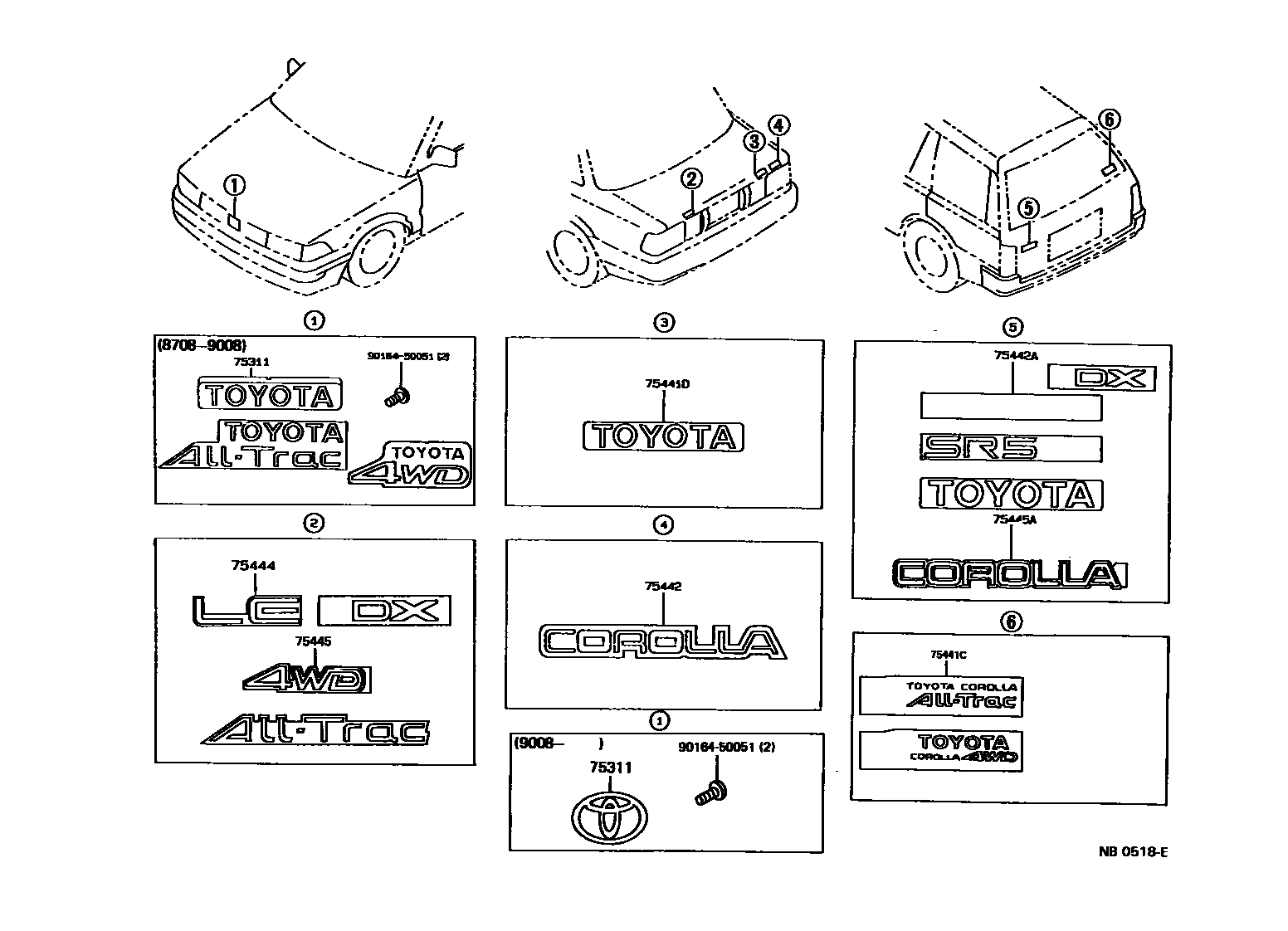

Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501
Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-1A490 · 75311-1A570 · 75311-1A580 · 75311-1A660 |
| 75441C | Back door nameplate | 75441-12520 · 75441-12530 |
| 75441D | Trunk door No. 1 name plate | 75441-12490 |
| 75442 | Trunk door number plate No. 2 | 75442-12860 |
| 75442A | No. 2 nameplate on back door | 75441-13100 · 75442-1A030 · 75442-1A040 · 75442-1A110 |
| 75444 | Trunk door No. 4 nameplate | 75444-12210 · 75444-12300 |
| 75445 | Trunk door No. 5 name plate | 75445-12110 · 75445-12120 |
| 75445A | No. 5 nameplate on back door | 75442-13070 · 75445-13020 |
