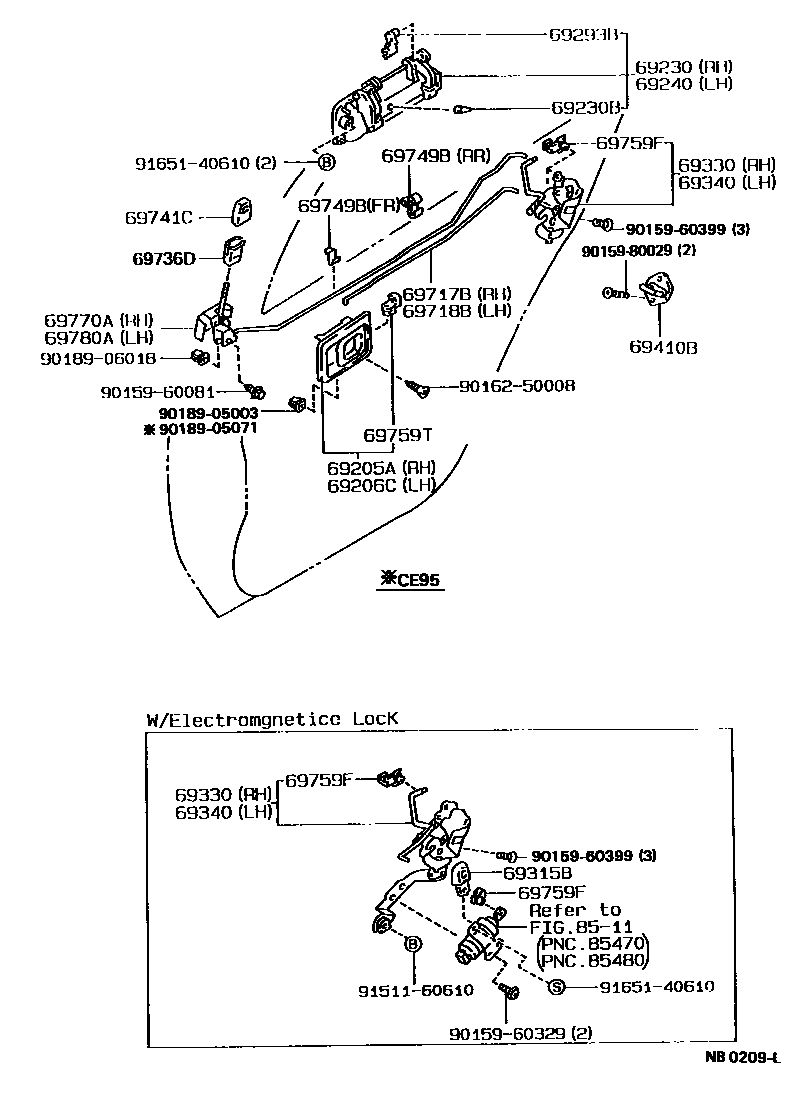

Toyota COROLLA 后门锁和后门把手 — Figure 6706
Toyota COROLLA EPC diagram 6706, 后门锁和后门把手, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69230 | Right rear door outer handle assembly | 69230-12110 |
| 69230B | Cushion pad (for rear door outer handle) | 90541-04014 |
| 69240 | Left rear door outer handle assembly | 69240-12110 |
| 69293B | Rear door outer handle buckle | 69293-12030 · 69293-12040 |
| 69315B | Rear door lock solenoid valve retainer | 69315-12010 |
| 69330 | Right rear door door lock assembly | 69330-12180 · 69330-12181 · 69330-12200 · 69330-12201 · 69330-12240 · 69330-12241 |
| 69340 | Left rear door lock assembly | 69340-12180 · 69340-12181 · 69340-12200 · 69340-12201 · 69340-12240 · 69340-12241 |
| 69410B | Rear door lock plate assembly | 69410-87001 |
| 69717B | Right rear door lock remote control lever | 69713-12040 |
| 69718B | Left rear door lock remote control lever | 69714-12050 |
| 69736D | Rear door locking link guide block | 69736-12030 · 69736-20090 |
| 69749B | Rear door lock link clamp | 69749-12040 · 69749-20010 |
| 69759F | Rear door lock control link buckle | 69759-12070 · 69759-20040 · 69759-20100 · 69759-20110 |
| 69759T | Rear door inner handle buckle | 69759-20060 · 69759-20070 |
| 69770A | Right rear door inner locking link assembly | 69770-12040 |
| 69780A | Left rear door inner locking link assembly | 69780-12040 |
