Toyota COROLLA 后门板和后门玻璃 — Figure 6705

Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 31 PNC and OE references.

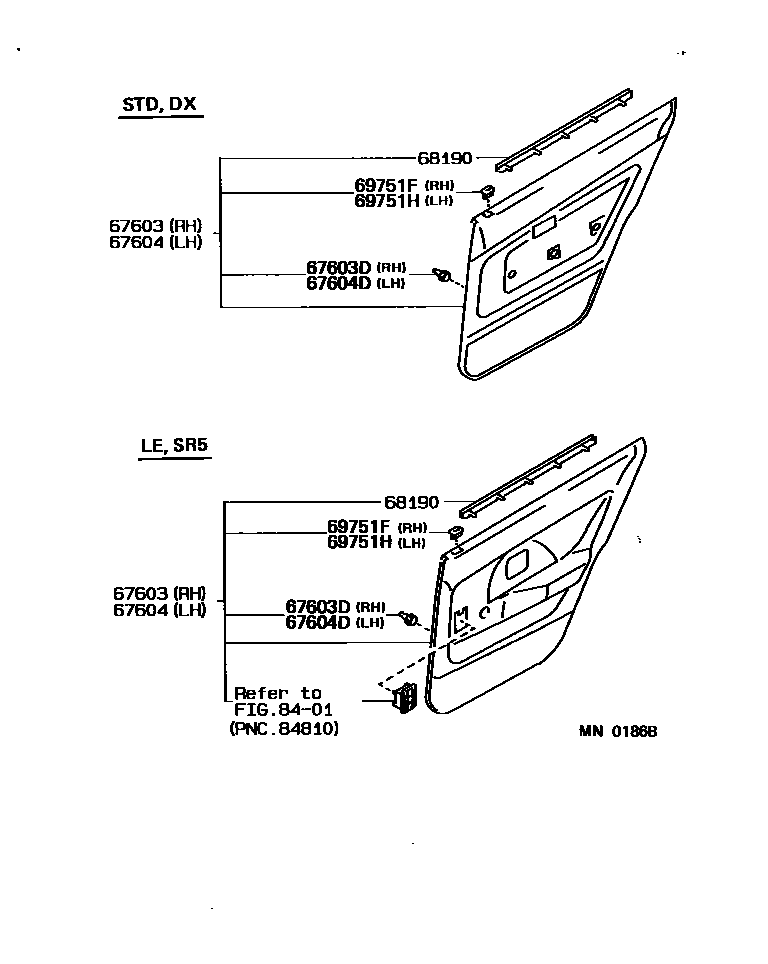

Toyota COROLLA 后门板和后门玻璃 EPC diagram — MN0186B
后门板和后门玻璃 — MN0186B (198708 – 999999)

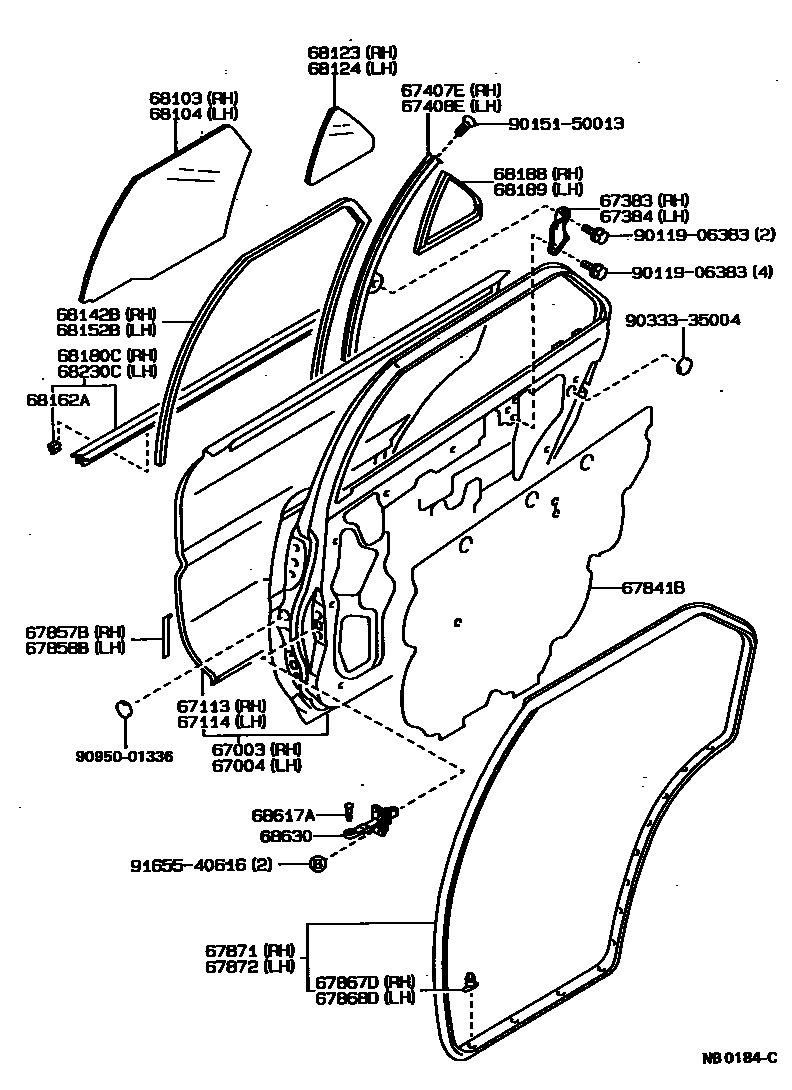

Toyota COROLLA 后门板和后门玻璃 EPC diagram — NB0184C
后门板和后门玻璃 — NB0184C (198708 – 999999)

PNC and OE references

PNCPart nameOE numbers
67003Right rear door panel sub-assembly67003-12510 · 67003-12620 · 67003-13220
67004Left rear door panel sub-assembly67004-12510 · 67004-12620 · 67004-13220
67113Right rear door outer panel67113-12140 · 67113-12171
67114Left rear door outer panel67114-12140 · 67114-12171
67383No. 2 right rear door inner panel bracket67383-12030
67384No. 2 left rear door inner panel bracket67384-12030
67407ERight rear door window divider sub-assembly67407-12140 · 67407-13020
67408ELeft rear door window divider sub-assembly67408-12140 · 67408-13020
67603DRight rear door trim panel fixing67771-12030 · 67771-12040 · 67771-12050 · 67771-89104
67604DLeft rear door trim panel fixing67771-12030 · 67771-12040 · 67771-12050 · 67771-89104
67841BRear door access hole cover67841-12210 · 67841-12220
67857BRight rear door panel protector67857-12010 · 67857-12020
67858BLeft rear door panel protector67858-12010 · 67858-12020
67867DRight rear door seal strip fixing67867-12120 · 67868-12050
67868DLeft rear door seal strip fixing67868-12050 · 67868-12070 · 67868-12080
67871Right rear door sealing strip67871-12290 · 67871-12330 · 67871-13110 · 67871-13112
67872Left rear door sealing strip67872-12290 · 67872-12330 · 67872-13100 · 67872-13102
68103Right rear door glass sub-assembly68113-12190 · 68113-13100
68104Left rear door glass sub-assembly68114-12190 · 68114-13100
68123Right rear door window glass68123-12390 · 68123-12540 · 68123-13110
68124Left rear door window glass68124-12390 · 68124-12540 · 68124-13100
68142BRight rear door window lift chute68142-12090 · 68142-13050
68152BLeft rear door window lift chute68152-12010 · 68152-13010
68162ACatch (for rear door glass outer sealing strip)68211-12160
68180CRight rear door glass outer sealing strip assembly68180-12080
68188Right rear door corner window seal68188-12200 · 68188-12230 · 68188-13050
68189Left rear door corner window seal68189-12190 · 68189-12240 · 68189-13050
68190Rear door glass inner sealing strip assembly68173-12120 · 68173-12140 · 68173-12160
68230CLeft rear door glass outer sealing strip assembly68230-12050
68617ARear door opening limiter pin68617-12030 · 68617-22020
68630Rear door opening limiter assembly68630-12040
