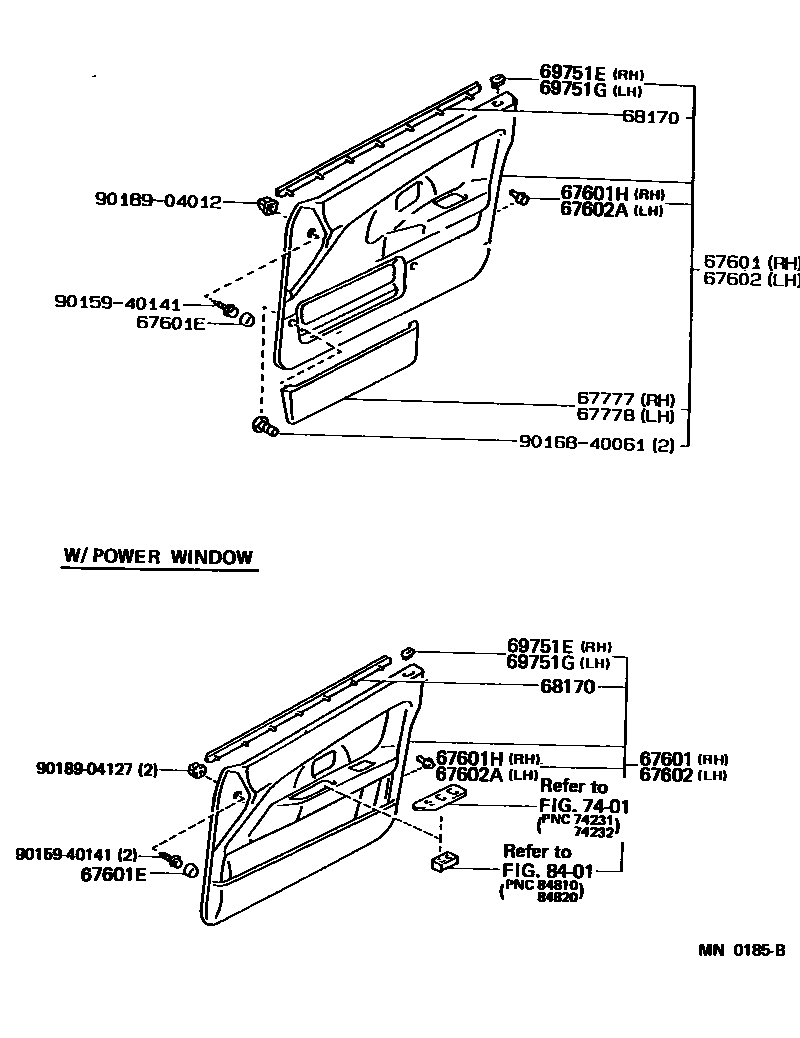

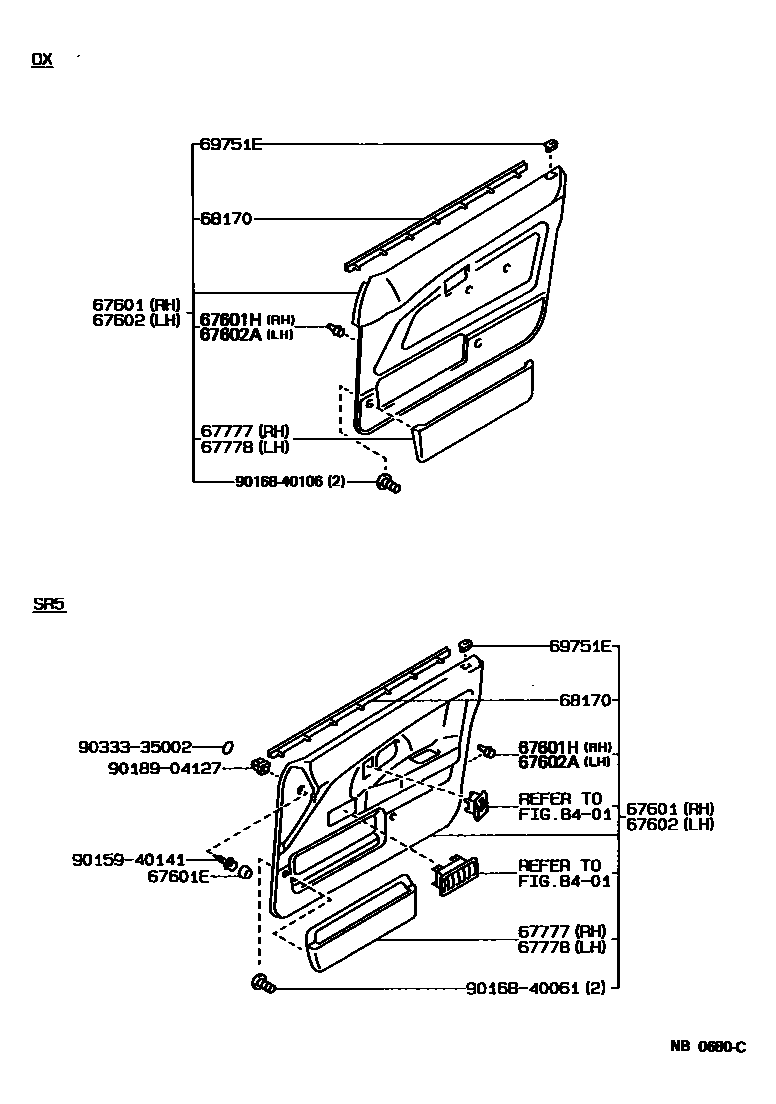

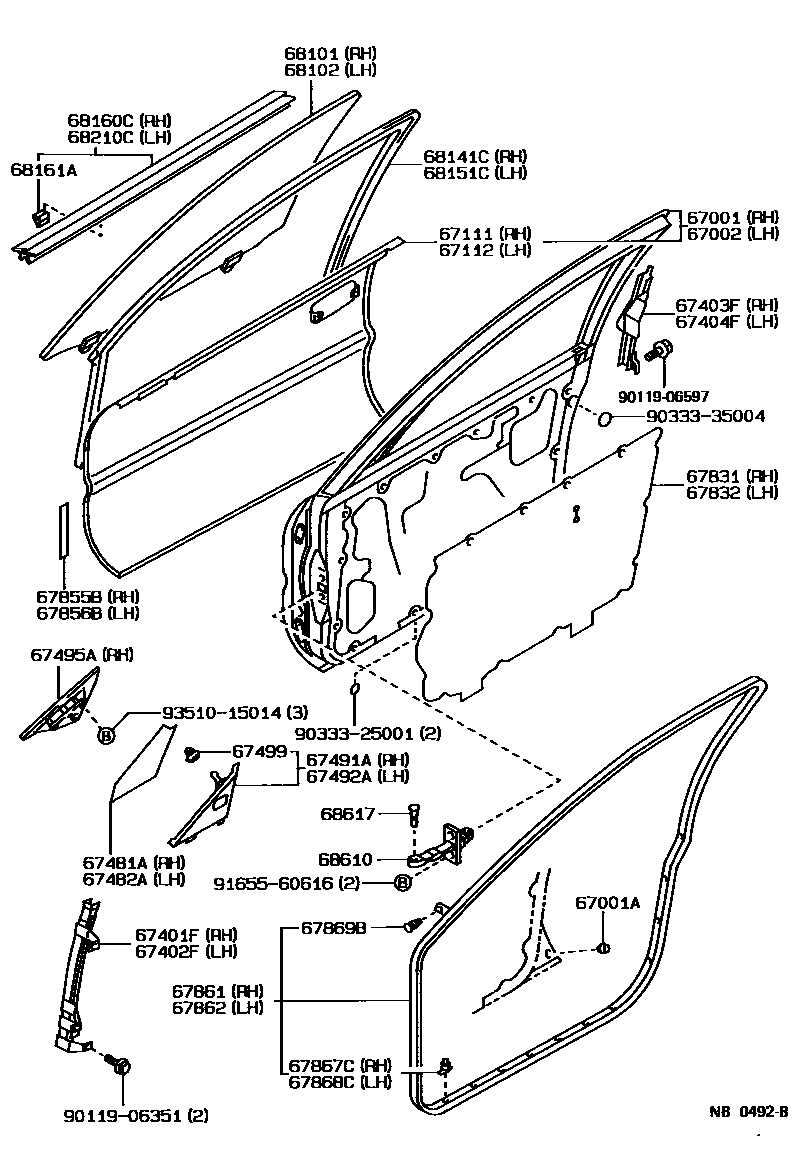

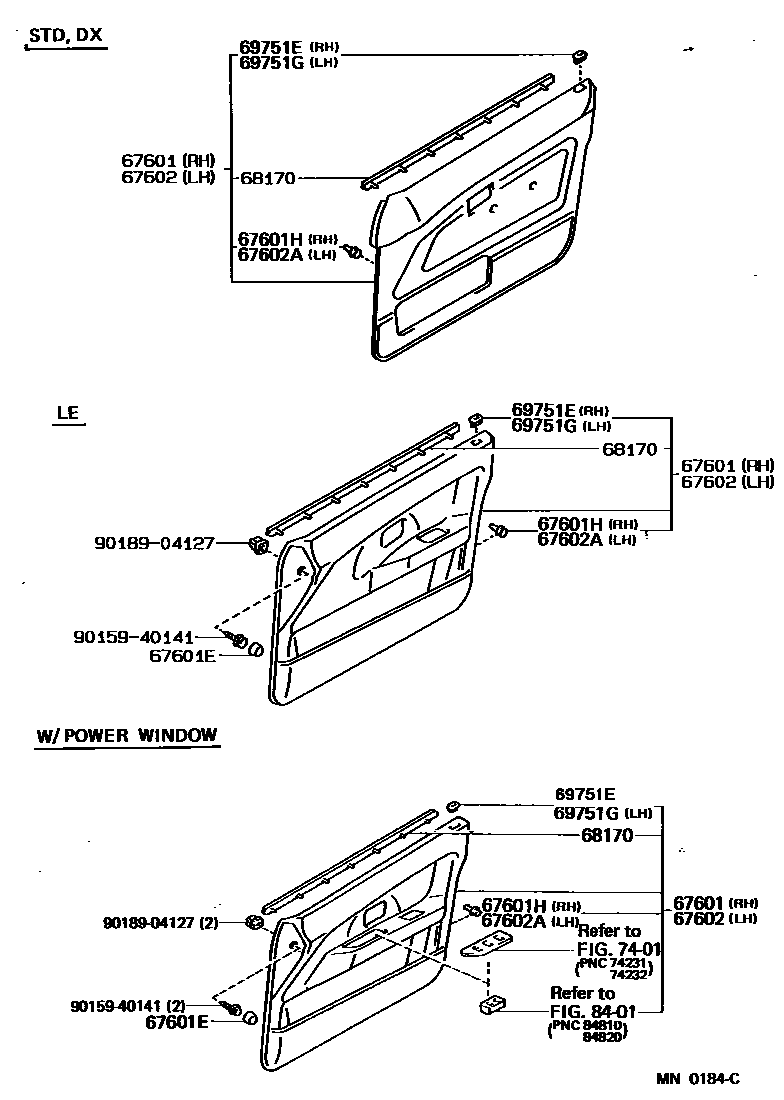

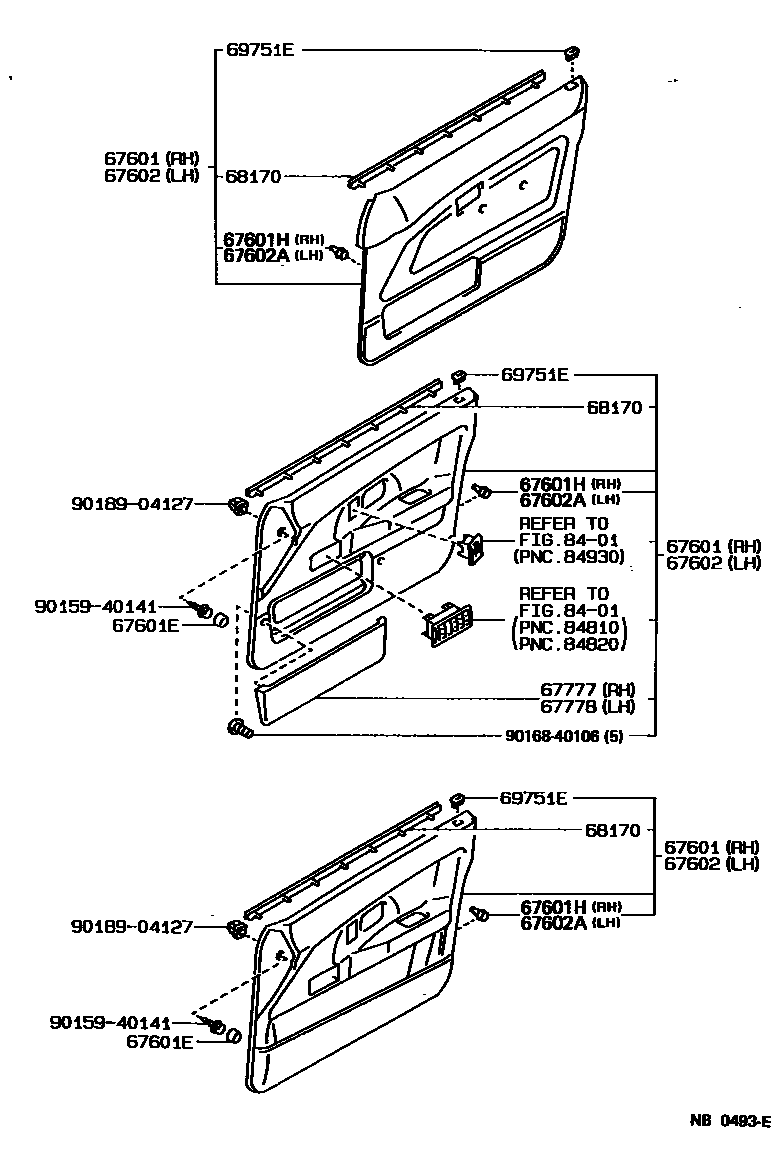

Toyota COROLLA 前门板和前门玻璃 — Figure 6701
Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 5 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-1A160 · 67001-1A161 · 67001-1A210 · 67001-1A230 · 67001-1A260 · 67001-1A261 |
| 67001A | Front door panel cushion | 90541-09035 |
| 67002 | Left front door panel sub-assembly | 67002-1A140 · 67002-1A141 · 67002-1A190 · 67002-1A210 · 67002-1A240 · 67002-1A241 |
| 67111 | Outer right front door panel | 67111-12440 · 67111-12460 |
| 67112 | Outer left front door panel | 67112-12430 · 67112-12450 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-12290 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-12310 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-12100 · 67403-12150 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-12100 · 67404-12150 |
| 67481A | Right front door front lower door frame seal | 67481-12210 |
| 67482A | Left front door front lower door frame seal | 67482-12140 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-12150 · 67491-12160 · 67491-12170 · 67491-12180 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-12130 · 67492-12160 · 67492-12170 · 67492-12180 |
| 67495A | Right front door front lower door frame upper cover | 67495-12120 · 67495-12130 |
| 67499 | Front door lower door frame bracket trim strip fixing | 67499-12030 · 67499-32010 |
| 67601H | Right door trim panel fixing | 67771-12030 · 67771-12040 · 67771-12050 · 67771-89104 |
| 67602A | Left door trim panel fixing | 67771-12030 · 67771-12040 · 67771-12050 · 67771-89104 |
| 67831 | Right front door access hole cover | 67831-12350 · 67831-12360 |
| 67832 | Left front door access hole cover | 67831-12350 · 67831-12360 · 67832-12210 |
| 67855B | Right front door panel protector | 58741-12060 |
| 67856B | Left front door panel protector | 58741-12060 |
| 67861 | Right front door seal | 67861-12440 · 67861-12671 · 67861-12710 · 67861-12730 · 67861-12760 |
| 67862 | Left front door seal | 67862-12580 · 67862-12591 · 67862-12670 · 67862-12690 · 67862-12720 |
| 67867C | Right front door seal strip fixing | 67868-12050 |
| 67868C | Left front door seal strip fixing | 67868-12030 · 67868-12050 |
| 67869B | Front door seal strip clip | 67869-12020 |
| 68101 | Right front door glass sub-assembly | 68101-12540 · 68101-12570 · 68101-12700 |
| 68102 | Left front door glass sub-assembly | 68102-12540 · 68102-12570 · 68102-12700 |
| 68141C | Right front door glass lift channel | 68141-12310 · 68141-12311 · 68141-12350 · 68141-12351 |
| 68151C | Left front door glass lift channel | 68151-12030 · 68151-12031 · 68151-12070 · 68151-12071 |
| 68160C | Right front door glass outer sealing strip assembly | 68160-12170 |
| 68161A | Catch (for front door glass outer sealing strip) | 68211-12160 |
| 68170 | Front door glass inner sealing strip assembly | 68171-12170 · 68171-12180 · 68171-12200 · 68172-12100 · 68172-12110 · 68172-12130 |
| 68210C | Left front door glass outer sealing strip assembly | 68210-12120 |
| 68610 | Front door opening limiter assembly | 68610-12050 |
| 68617 | Front door opening limiter pin | 68617-12030 · 68617-22020 |
