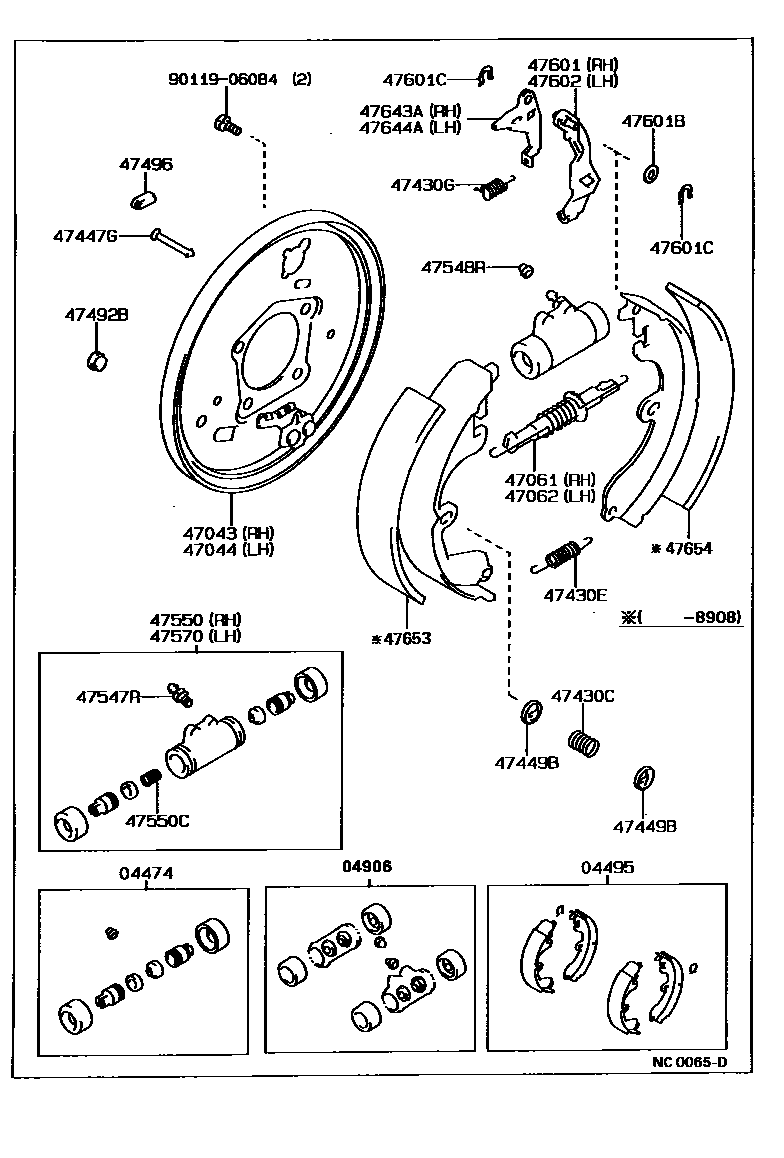

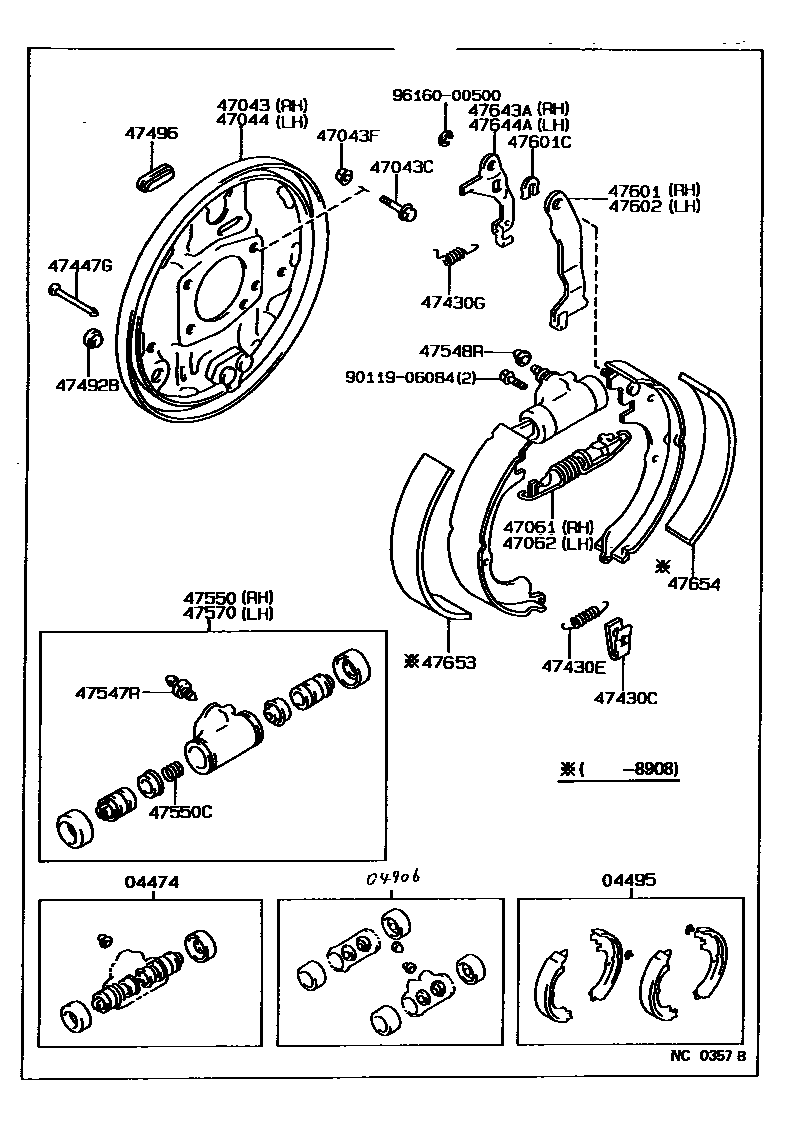

Toyota COROLLA 后鼓式制动器分泵和底板 — Figure 4706
Toyota COROLLA EPC diagram 4706, 后鼓式制动器分泵和底板, with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04474 | rear wheel pump assembly | 04474-10032 · 04474-16020 |
| 04495 | Rear brake shoe assembly | 04495-12100 · 04495-12101 · 04495-12130 · 04495-12131 · 04495-12171 · 04495-12181 · 04495-20100 · 04495-20101 · 04495-20150 |
| 04906 | Rear wheel pump cup assembly | 04906-10021 · 04906-16020 |
| 47043 | Right rear brake base plate sub-assembly | 47043-12070 · 47043-16030 |
| 47043C | Bolts (used to secure the base plate to the rear axle housing) | 42184-22020 |
| 47043F | Nut (used to fix the base plate to the rear axle housing) | 90179-10095 |
| 47044 | Left rear brake base plate sub-assembly | 47044-12070 · 47044-16030 |
| 47061 | Right parking brake shoe push rod assembly | 47061-12020 · 47061-32010 |
| 47062 | Left parking brake shoe push rod assembly | 47062-12020 · 47062-32010 |
| 47430C | Limit spring (for rear brake shoe) | 47446-10010 · 90501-18017 |
| 47430E | Tension spring (for rear brake shoe return) | 90506-18034 · 90506-18299 |
| 47430G | Tension spring (for rear wheel brake automatic adjustment lever) | 90506-12036 · 90506-12276 |
| 47447G | Brake shoe limit spring pin (for rear wheel brake) | 47447-10010 · 47447-30010 |
| 47449B | Brake shoe limit spring seat (for rear wheel brake) | 47449-30030 |
| 47492B | Brake shoe inspection plug (for rear brake) | 47492-32010 |
| 47496 | Hole plug (for rear brake) | 47491-20011 |
| 47547R | Bleed plug (for rear drum brake) | 47547-20010 |
| 47548R | Bleeder plug cap (for rear drum brake) | 31478-30010 |
| 47550 | Rear wheel brake cylinder assembly (for front right or upper right) | 47550-10042 · 47550-16030 · 47550-20120 · 47550-20130 · 47550-32010 |
| 47550C | Compression spring (for rear wheel brake cylinder) | 90501-07006 |
| 47570 | Rear wheel brake cylinder assembly (for front left or upper left) | 47550-10042 · 47570-16010 · 47570-20030 · 47570-20040 · 47570-32010 |
| 47601 | Right parking brake shoe lever sub-assembly (for rear wheel brake) | 47601-32010 · 47611-12050 |
| 47601B | Rear parking brake shoe lever gasket | 90564-08150 · 90564-08151 · 90564-08152 · 90564-08172 · 90564-08173 · 90564-08174 |
| 47601C | C-shaped washer (for rear brake) | 90213-06013 |
| 47602 | Left parking brake shoe lever sub-assembly (for rear wheel brake) | 47602-32010 · 47612-12050 |
| 47643A | Right rear wheel brake automatic adjustment lever | 47643-12030 · 47643-32010 |
| 47644A | Left rear wheel brake automatic adjustment lever | 47644-12030 · 47644-32010 |
| 47653 | Rear brake shoe friction lining (for front or upper side) | 47651-12020 · 47651-16030 · 47651-20170 |
| 47654 | Rear brake shoe friction lining (for rear or lower side) | 47651-12020 · 47651-16030 · 47651-20170 |
