Toyota COROLLA Parking Brake & Cable — Figure 4601

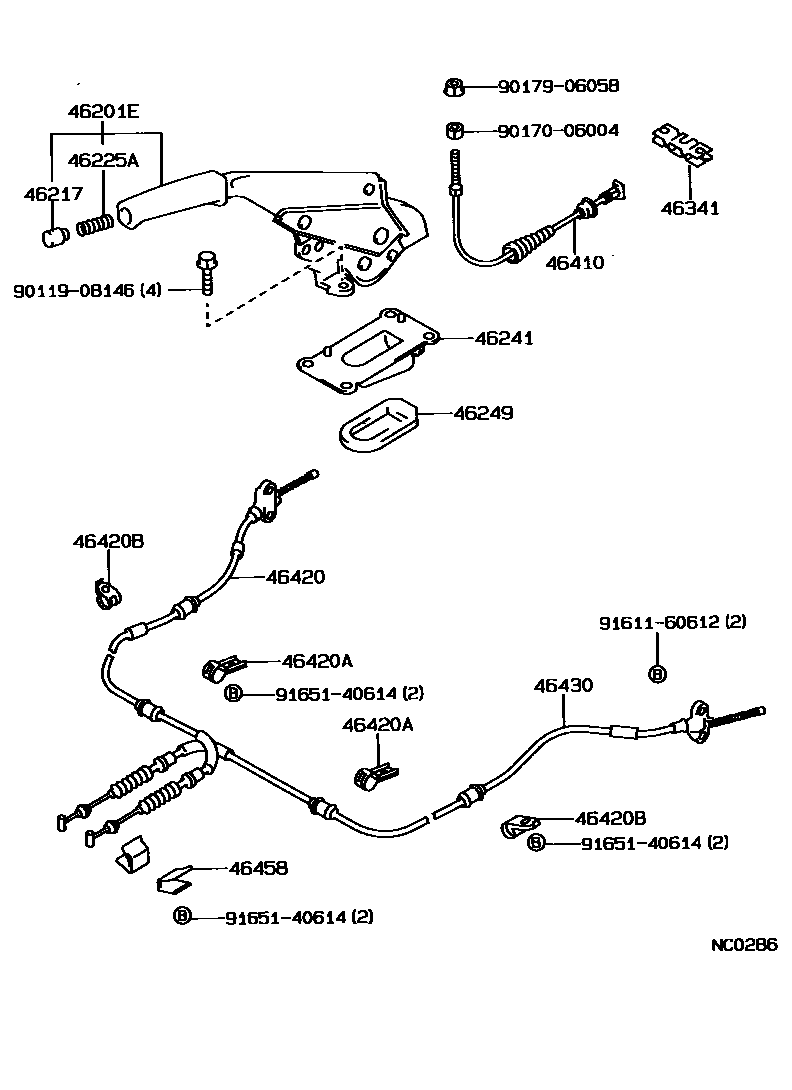

Toyota COROLLA EPC diagram 4601, Parking Brake & Cable, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46201E | Parking brake lever sub-assembly | 46201-12101 |
| 46225A | Compression spring (for parking brake pawl lever) | 90501-10069 |
| 46241 | Parking brake lever dust cover | 46241-12080 |
| 46249 | Parking brake hole cover | 46249-32010 |
| 46341 | Parking brake balancer | 46341-12010 · 46341-32010 |
| 46410 | Parking brake cable assembly No. 1 | 46410-12160 · 46410-12190 |
| 46420 | Parking brake No. 2 cable assembly | 46420-12340 · 46420-12371 |
| 46420A | Clamp No. 1 (for parking brake cable) | 90461-12121 · 90949-01016 · 90949-01479 |
| 46420B | Clamp No. 2 (for parking brake cable) | 90949-01015 · 90949-01746 |
| 46430 | Parking brake No. 3 cable assembly | 46430-12240 · 46430-12271 |
| 46458 | Cable fixings | 46458-20020 · 46458-50010 |
