Toyota COROLLA Steering Wheel — Figure 4504

Toyota COROLLA EPC diagram 4504, Steering Wheel, with 5 images and 6 PNC and OE references.

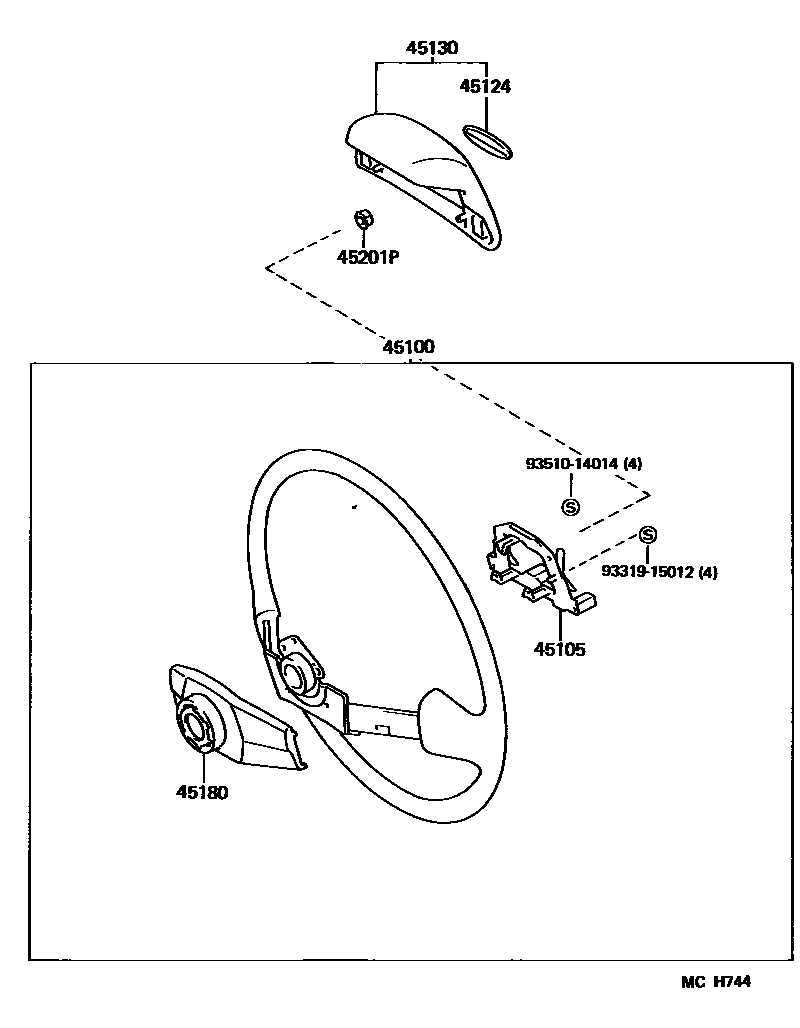

Toyota COROLLA Steering Wheel EPC diagram — MCH744
Steering Wheel — MCH744 (198908 – 999999)

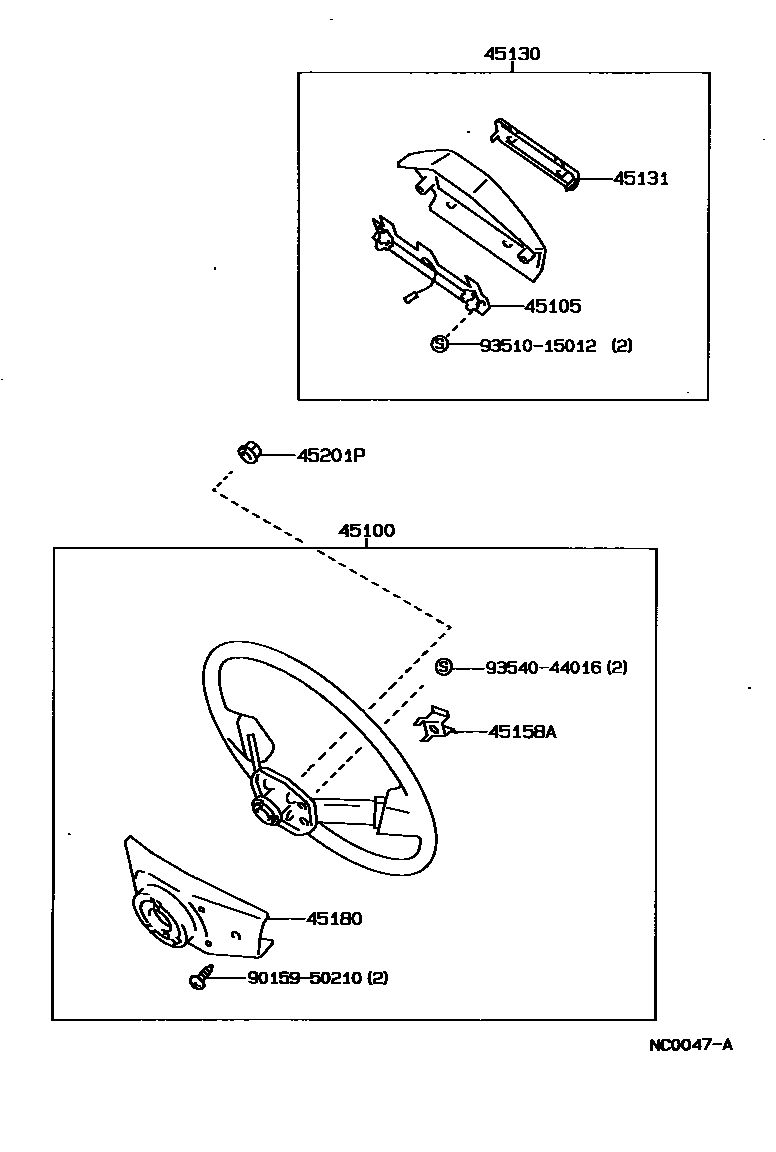

Toyota COROLLA Steering Wheel EPC diagram — NC0047A
Steering Wheel — NC0047A (198708 – 999999)

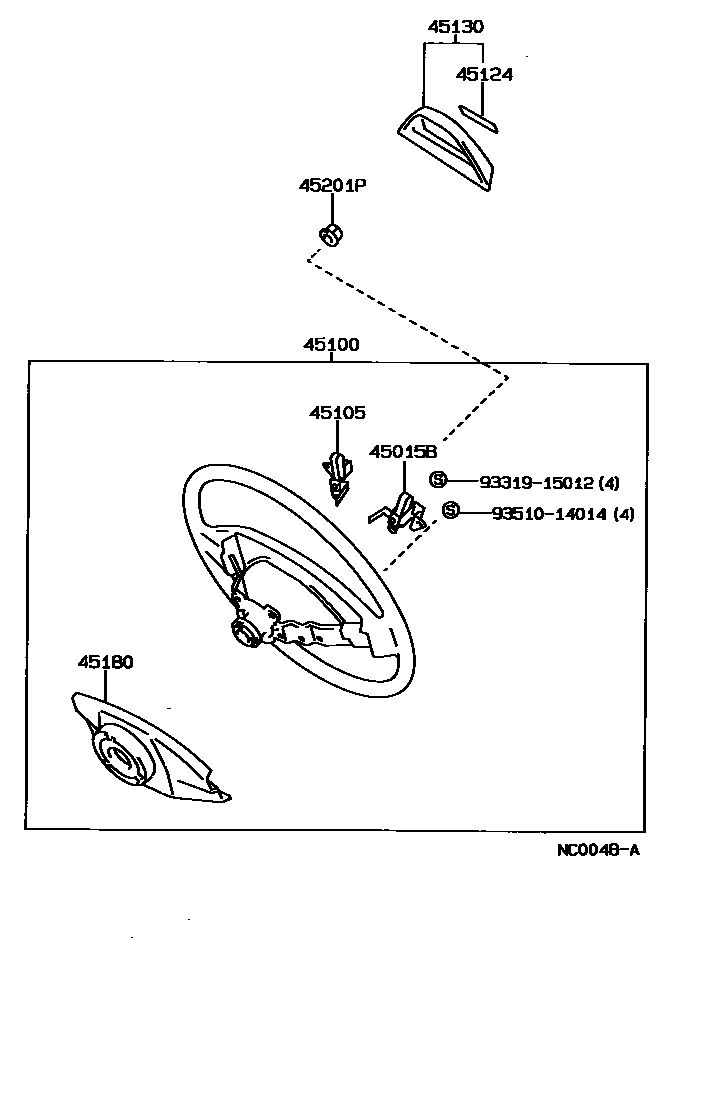

Toyota COROLLA Steering Wheel EPC diagram — NC0048A
Steering Wheel — NC0048A (198708 – 198908)

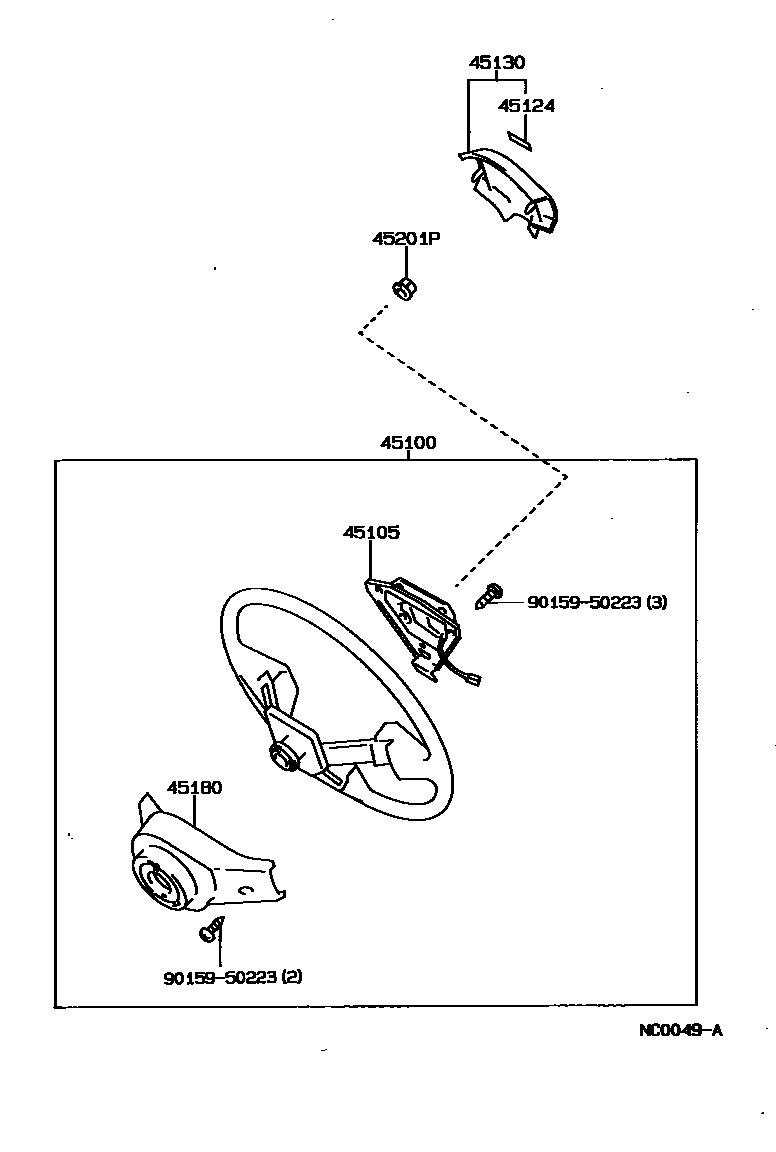

Toyota COROLLA Steering Wheel EPC diagram — NC0049A
Steering Wheel — NC0049A (198908 – 198910)

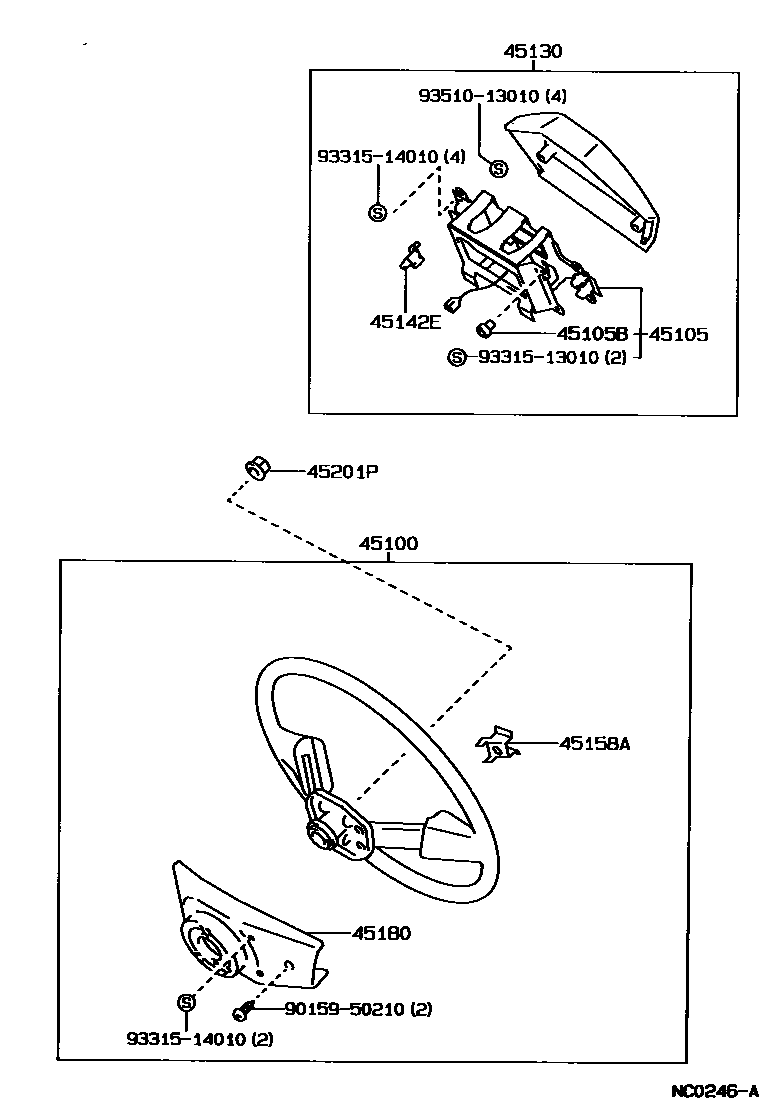

Toyota COROLLA Steering Wheel EPC diagram — NC0246A
Steering Wheel — NC0246A (198708 – 999999)

PNC and OE references

PNCPart nameOE numbers
45015BNo. 2 horn button contact piece sub-assembly45015-12010
45105No. 1 horn button contact piece sub-assembly45105-12050 · 45105-12060 · 45105-12070 · 45105-12090 · 45105-12091 · 45105-12110
45105BSpacer (for horn button contact piece)90561-02001
45142ESpeaker contacts45142-20060
45158ASpeaker button connector sleeve45158-12020
45201PSteering wheel fixing nut90179-12086
