Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

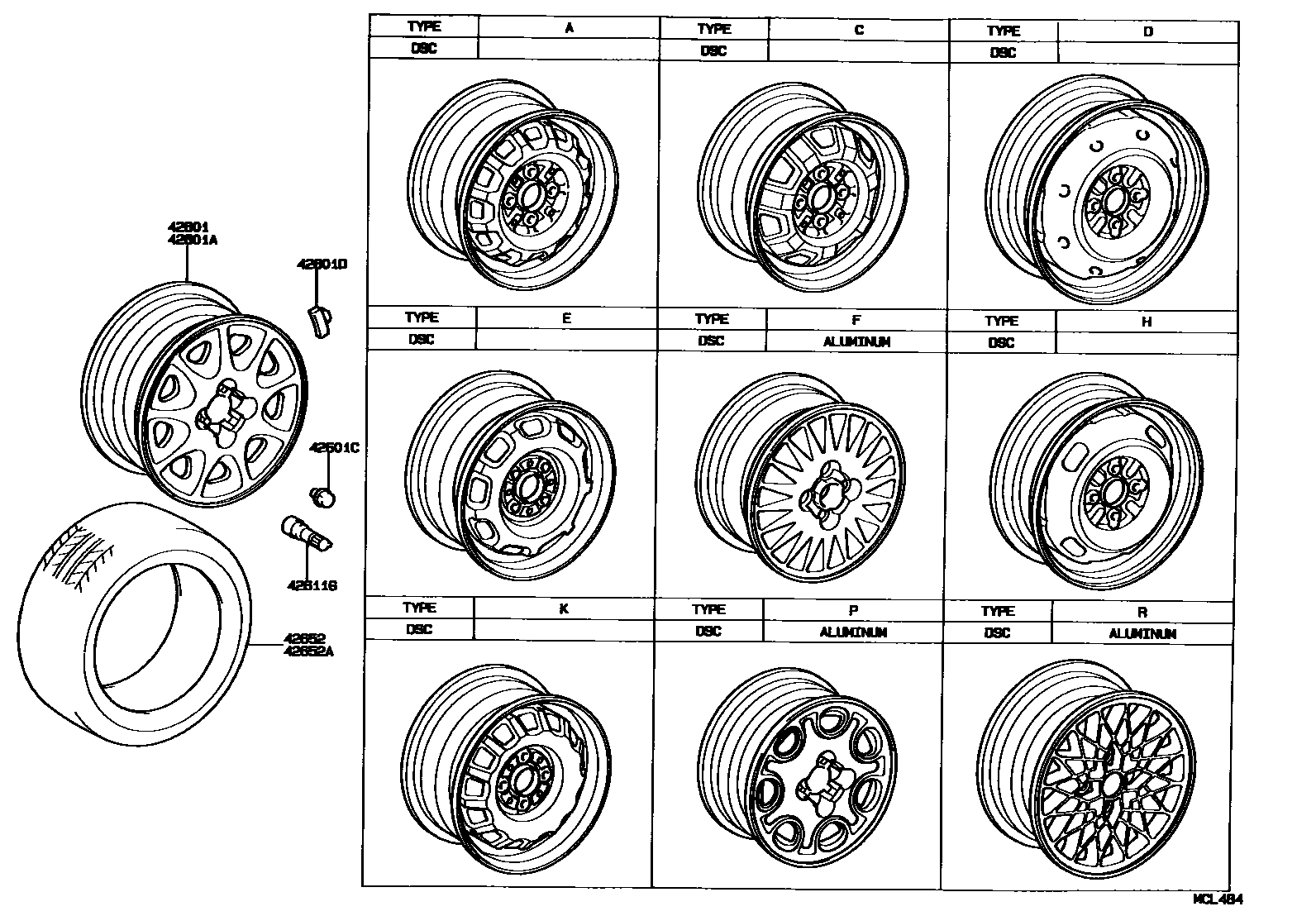

| 42601 | spoke wheel | 42611-12820 · 42611-12850 · 42611-12870 · 42611-1A030 · 42611-20300 |
| 42601A | Spoke wheel (for spare tire) | 42611-12820 · 42611-16220 · 42611-1A020 · 42611-1A030 · 42611-20300 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01021 · 90942-01033 |
| 42601D | Balance weight (for spoked wheels) | 90942-03017 · 90942-03020 · 90942-03022 · 90942-03025 · 90942-03027 · 90942-03029 · 90942-03031 · 90942-03041 · 90942-03098 · 90942-03099 · 90942-03100 · 90942-03101 · 90942-03102 · 90942-03108 · 90942-03109 · 90942-03146 · 90942-03147 · 90942-03148 · 90942-03149 · 90942-03150 · 90942-03151 · 90942-03152 · 90942-03153 · 90942-03154 · 90942-03155 · 90942-03156 · 90942-03157 · 90942-03158 · 90942-03159 · 90942-03160 · 90942-03161 · 90942-03167 |

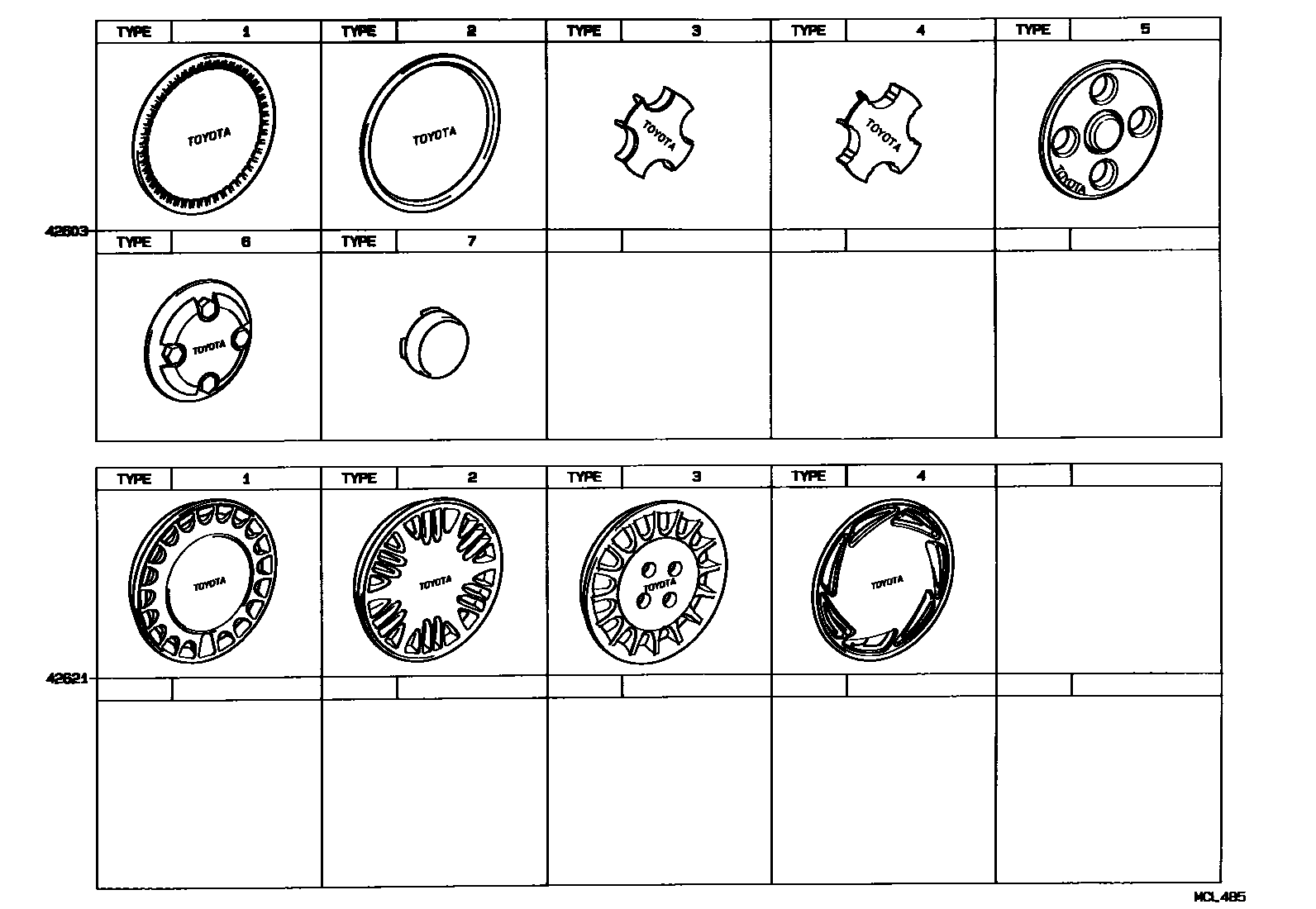

| 42603 | Wheel hub decorative parts sub-assembly | 42603-10140 · 42603-12230 · 42603-12370 · 42603-12380 · 42603-12390 · 42603-12410 · 42603-12450 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42621 | wheel cover | 42602-12130 · 42621-20460 |
| 42652 | tires | 42652-12670 · 42652-12720 · 42652-12740 · 42652-12760 |
| 42652A | Tire (for Spare Wheel) | 42652-12370 · 42652-12720 · 42652-12760 · 42652-14270 |
