Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 11 PNC and OE references.

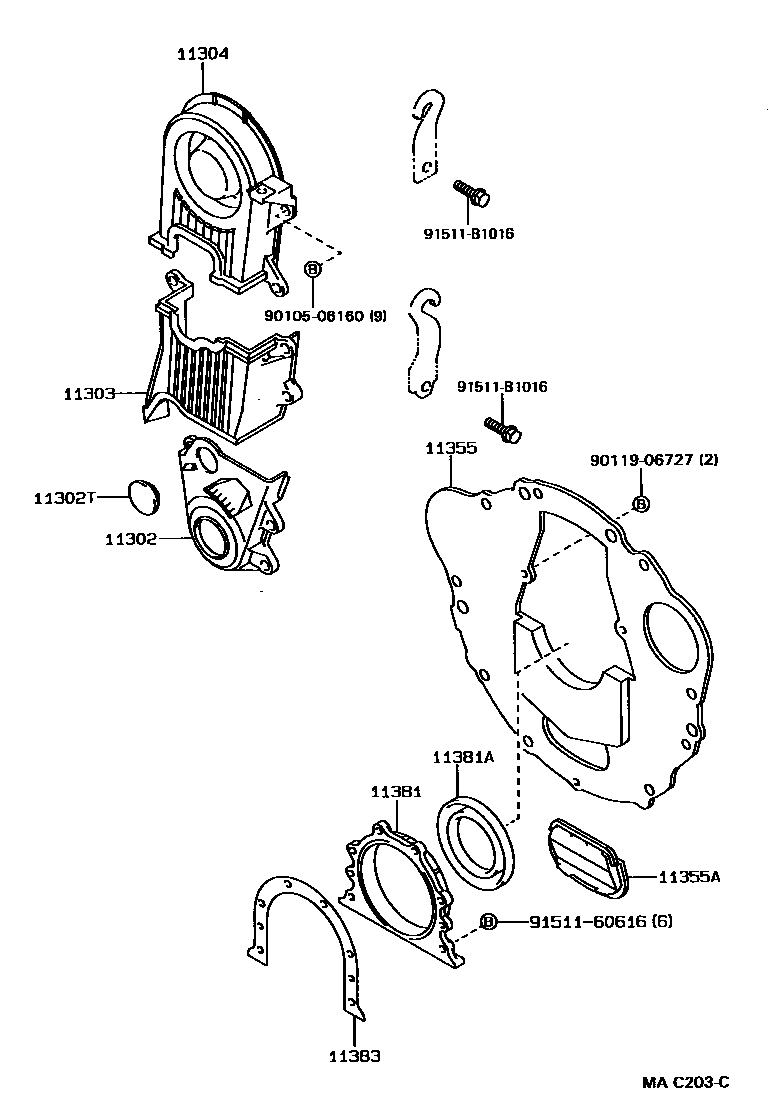

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — MAC203C
Timing Gear Cover & Rear End Plate — MAC203C (198708 – 999999)

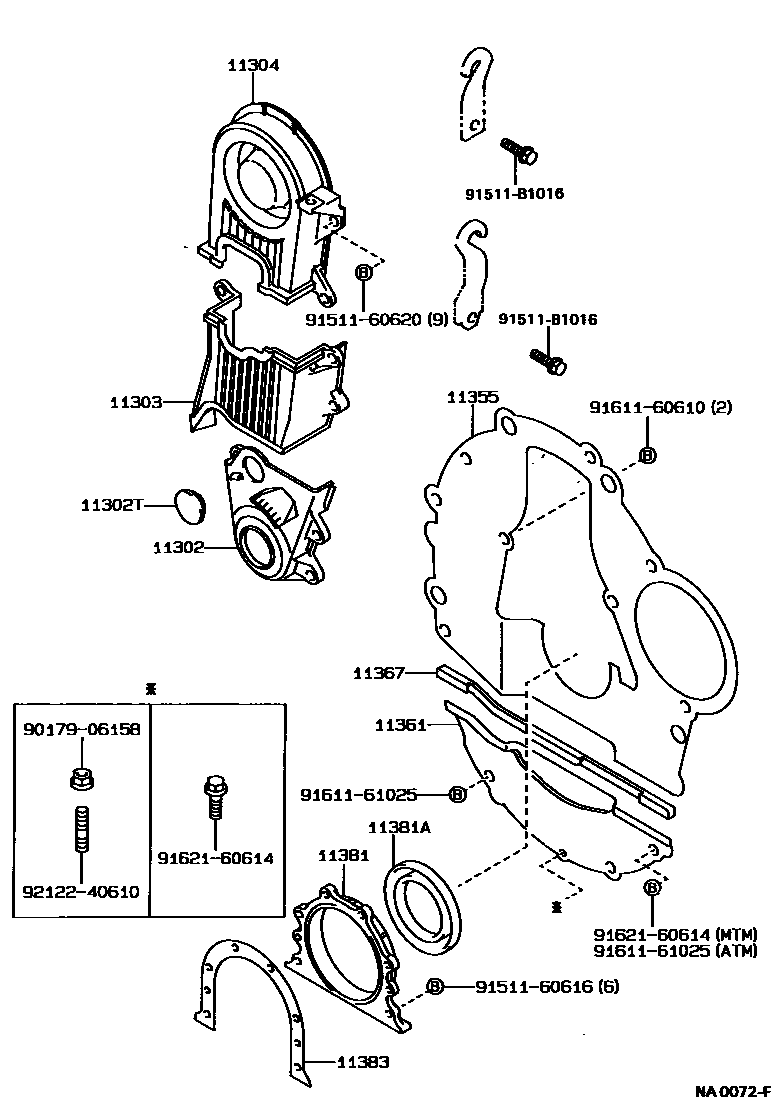

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — NA0072F
Timing Gear Cover & Rear End Plate — NA0072F (198802 – 999999)

PNC and OE references

PNCPart nameOE numbers
11302TIMING CHAIN OR BELT COVER SUB-ASSY11302-15040 · 11302-15041
11302Thole plug90950-01391
11303Crankshaft gear or crankshaft pulley cover sub-assembly11303-15040
11304No. 2 timing chain or timing belt cover11304-15020
11355rear end plate11355-15070 · 11355-15080 · 11355-16010
11355AHole plug (for rear end plate)90950-01264
11361Flywheel housing bottom cover11361-16040
11367Flywheel housing lower gasket11367-15030
11381RETAINER, ENGINE REAR OIL SEAL11381-15010
11381ASEAL, ENGINE REAR OIL90311-70004 · 90311-70007
11383Engine rear oil seal seat gasket11383-15010 · 11383-15011 · 11383-16010
