Toyota COROLLA 暖风和空调系统 - 真空管 — Figure 8717

Toyota COROLLA EPC diagram 8717, 暖风和空调系统 - 真空管, with 2 images and 5 PNC and OE references.

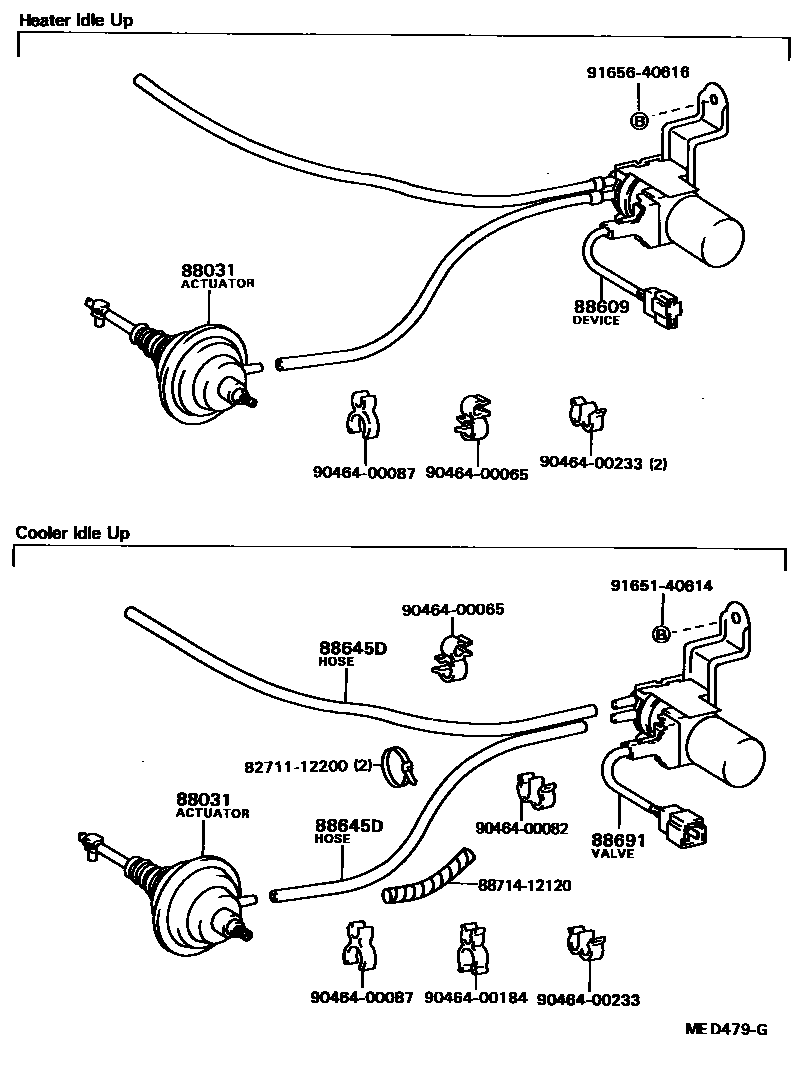

Toyota COROLLA 暖风和空调系统 - 真空管 EPC diagram — MED479G
暖风和空调系统 - 真空管 — MED479G (198308 – 198508)

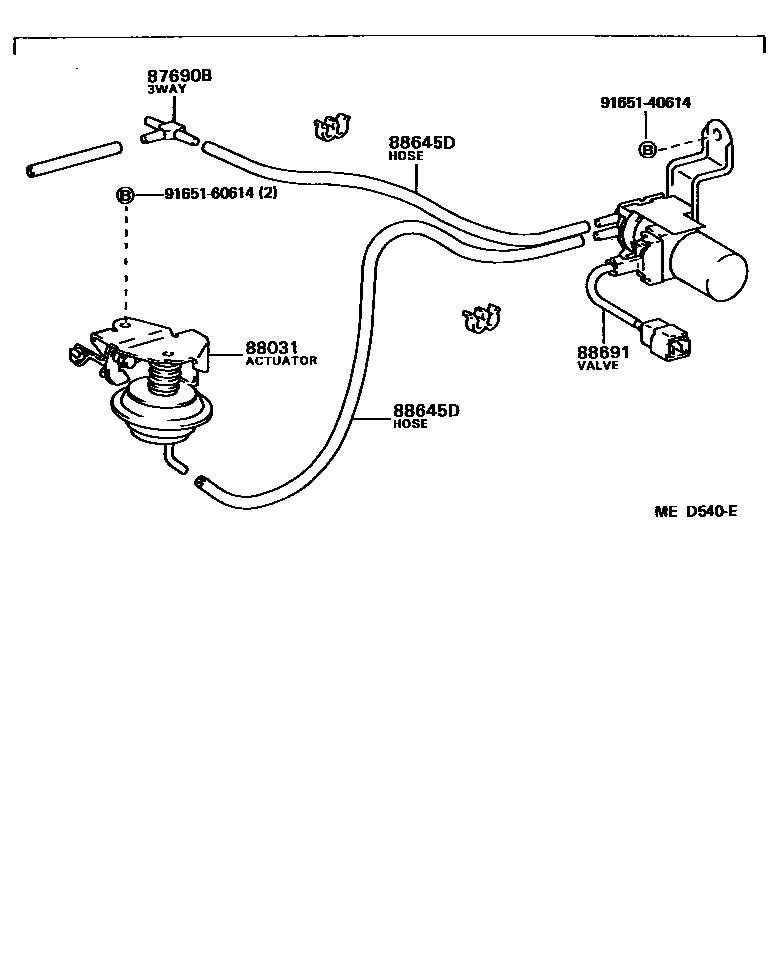

Toyota COROLLA 暖风和空调系统 - 真空管 EPC diagram — MED540E
暖风和空调系统 - 真空管 — MED540E (198308 – 999999)

PNC and OE references

PNCPart nameOE numbers
87690Btee pipe90413-04005
88031Idle speed lift actuator assembly88031-12140 · 88031-12150 · 88031-30070
88609Idle speed lifting device sub-assembly88609-12230
88645DHoses (for idle lift)95411-19930
88691Solenoid valve (for idle speed lifting device)88690-12280 · 88690-12281
