Toyota COROLLA 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712

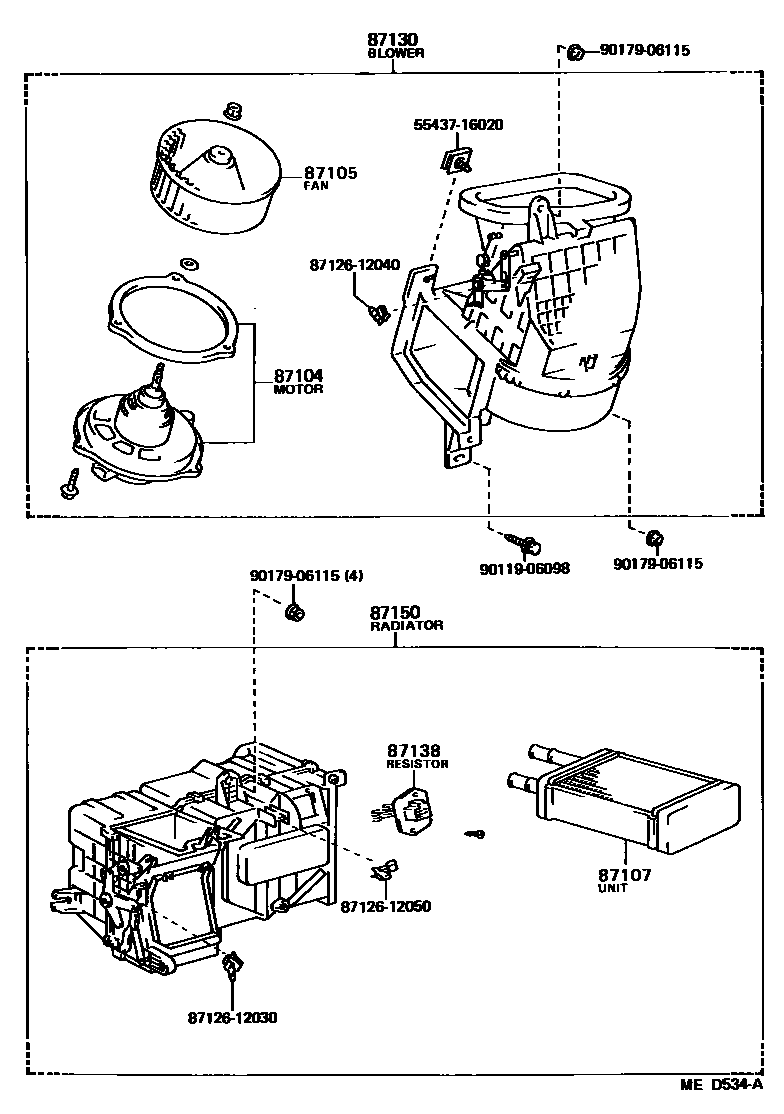

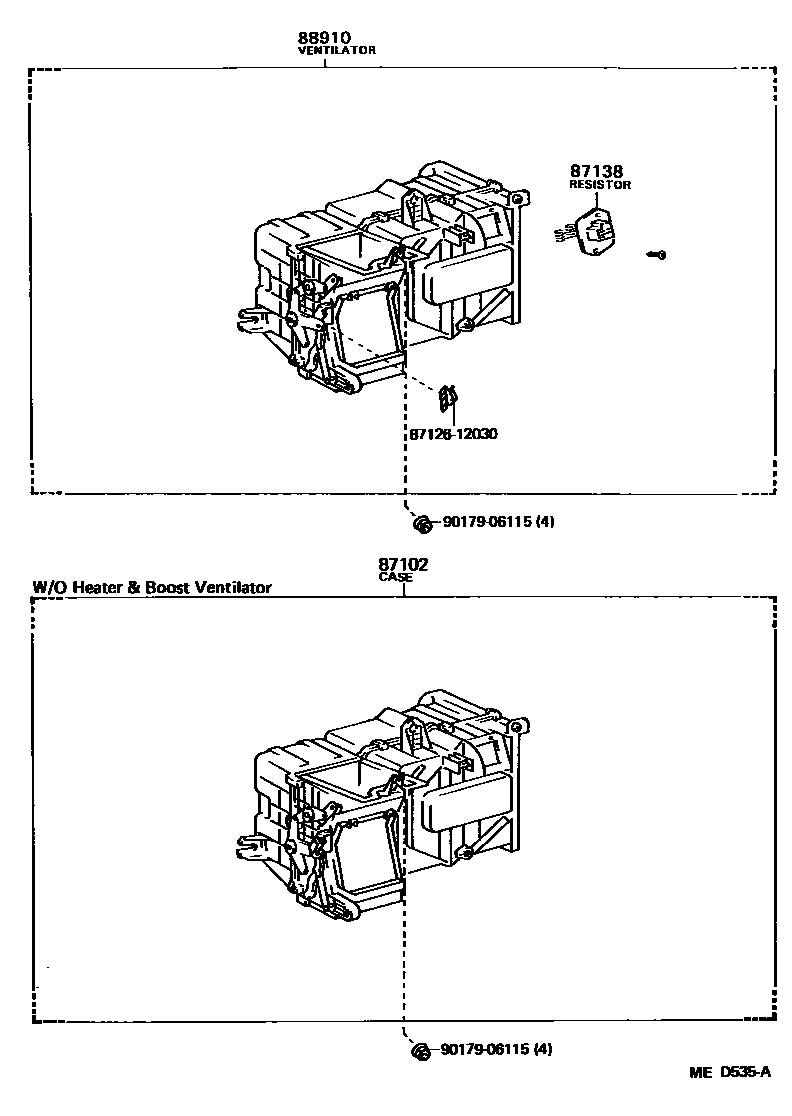

Toyota COROLLA EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87102 | Radiator box sub-assembly | 87102-12020 |
| 87104 | Heater blower motor sub-assembly | 87104-12150 · 87104-12170 · 87104-12210 |
| 87105 | Heater blower fan sub-assembly | 87105-14020 |
| 87107 | Heater radiator device sub-assembly | 87107-12320 · 87107-12340 |
| 87130 | Front heater blower assembly | 87130-12130 · 87130-12150 · 87130-12240 |
| 87138 | Heater Blower Resistor | 87138-12110 · 87138-16100 |
| 87150 | Heater radiator assembly | 87150-12200 · 87150-12201 · 87150-12220 · 87150-12221 · 87150-12270 |
| 88910 | Auxiliary ventilation device assembly | 88910-12040 |
