Toyota COROLLA 车门电机和车门电磁阀 — Figure 8511

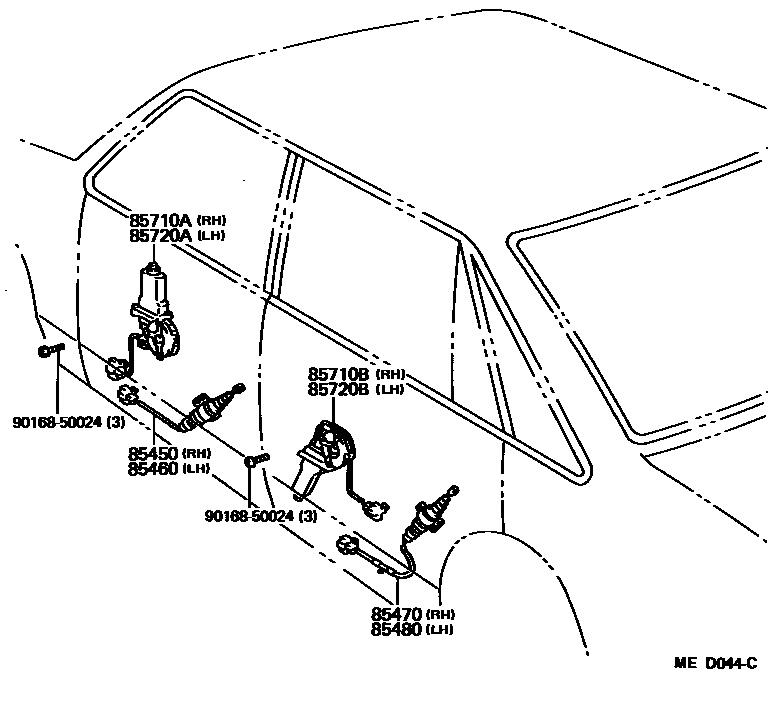

Toyota COROLLA EPC diagram 8511, 车门电机和车门电磁阀, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85450 | Right front door control solenoid valve assembly | 85450-12100 · 85450-12101 |
| 85460 | Left front door control solenoid valve assembly | 85450-12110 · 85450-12111 |
| 85470 | Right rear door control solenoid valve assembly | 85450-12120 |
| 85480 | Left rear door control solenoid valve assembly | 85450-12130 |
| 85710A | Right front electric window lift motor assembly | 85710-12030 |
| 85710B | Right rear electric window lift motor assembly | 85710-12040 |
| 85720A | Left front electric window lift motor assembly | 85720-12030 |
| 85720B | Left rear electric window lift motor assembly | 85720-12040 |
