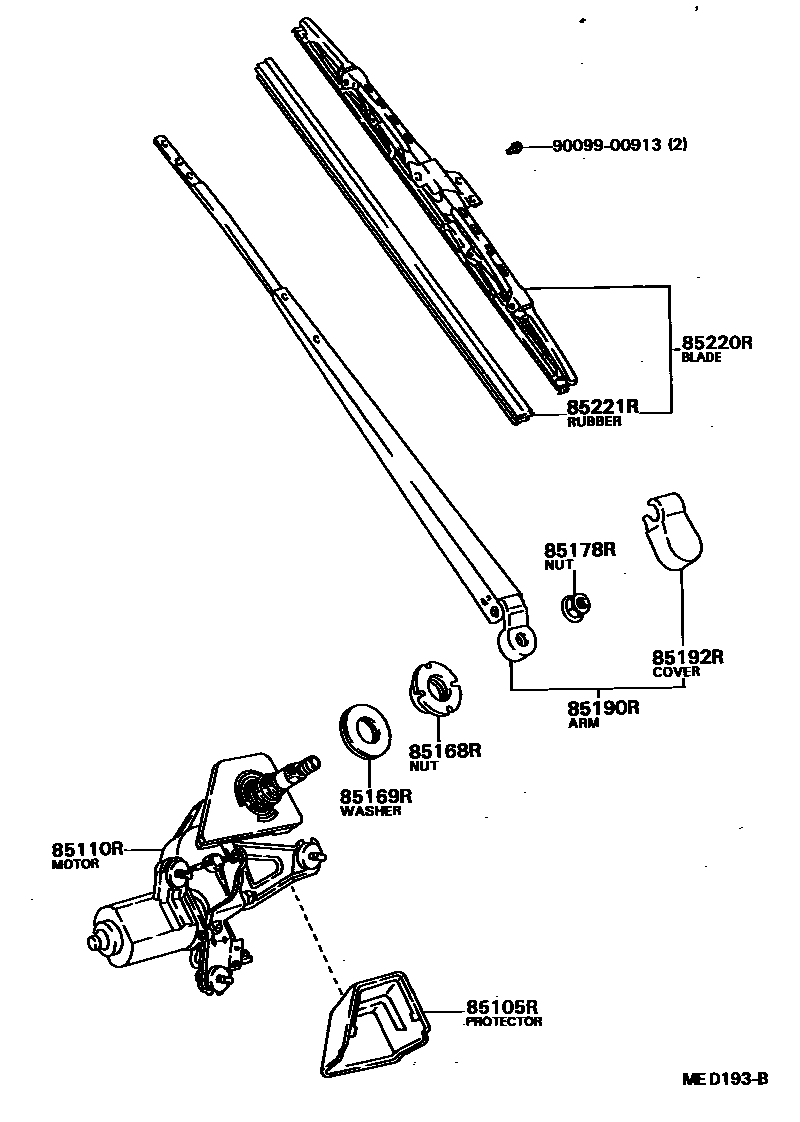

Toyota COROLLA 后刮水器 — Figure 8502
Toyota COROLLA EPC diagram 8502, 后刮水器, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110R | Rear wiper motor assembly | 85110-12400 · 85110-12530 |
| 85168R | No. 1 rear wiper link pivot nut | 90099-05176 · 90179-22012 |
| 85169R | No. 1 rear wiper link pivot washer | 85179-12400 · 90210-28001 |
| 85178R | Nut (for securing rear wiper arm) | 90179-06158 |
| 85190R | Rear wiper arm assembly | 85190-12650 · 85190-12770 |
| 85192R | Rear wiper arm cover | 85192-32010 |
| 85220R | Rear wiper blade assembly | 85220-16430 · 85220-16440 · 85220-32120 |
| 85221R | Rear wiper blade | 85221-14210 · 85221-16080 |
