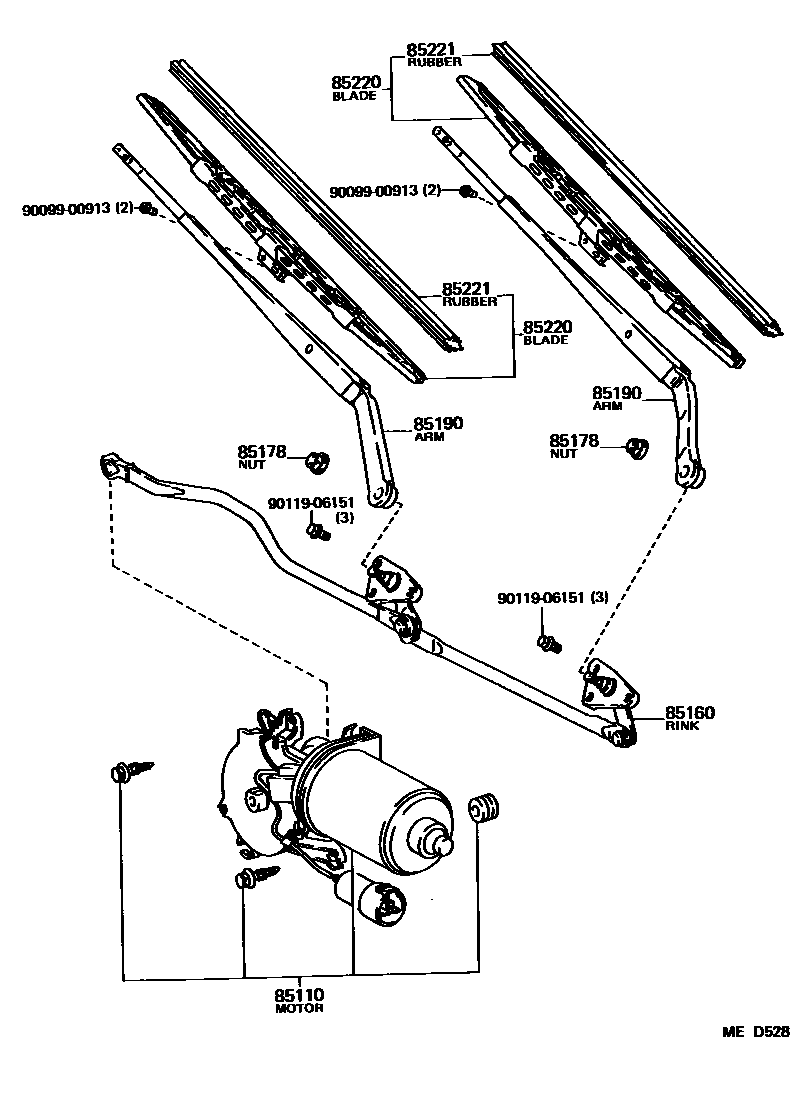

Toyota COROLLA 挡风玻璃刮水器 — Figure 8501
Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-12370 · 85110-12380 · 85110-12490 · 85110-12500 · 85110-12501 |
| 85160 | Windshield wiper connecting rod assembly | 85160-12410 · 85160-12420 · 85160-12421 |
| 85178 | Nut (for securing front wiper arm) | 90176-08029 · 90176-08033 |
| 85190 | Windshield wiper arm assembly | 85190-12640 · 85210-12170 |
| 85220 | Windshield wiper blade assembly | 85220-12510 · 85220-16270 |
| 85221 | Windshield wiper blade | 85221-12210 · 85221-17020 · 85221-30100 |
