Toyota COROLLA 仪表 — Figure 8301

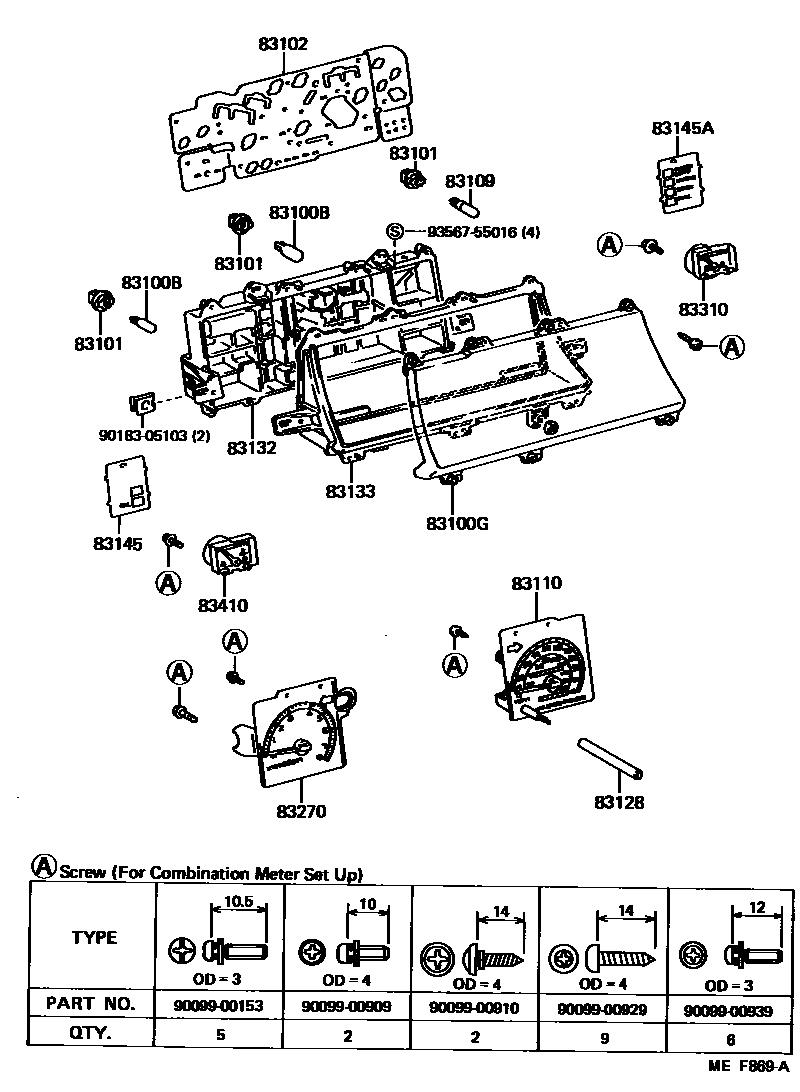

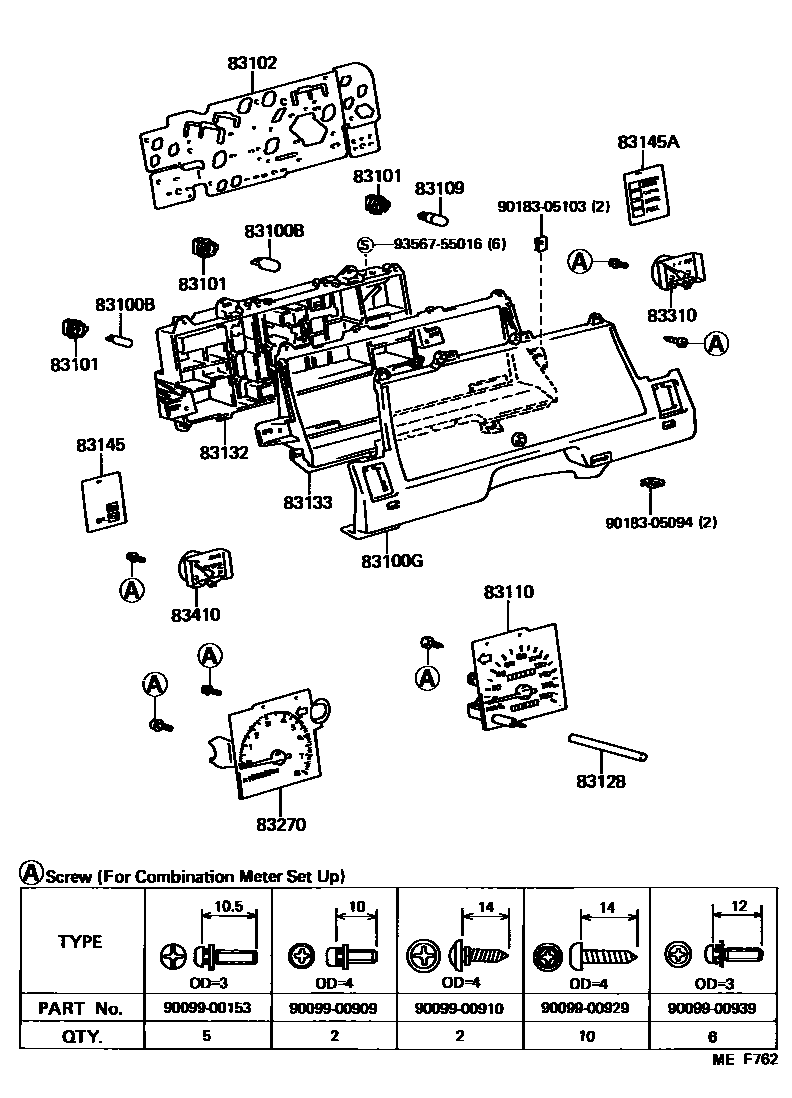

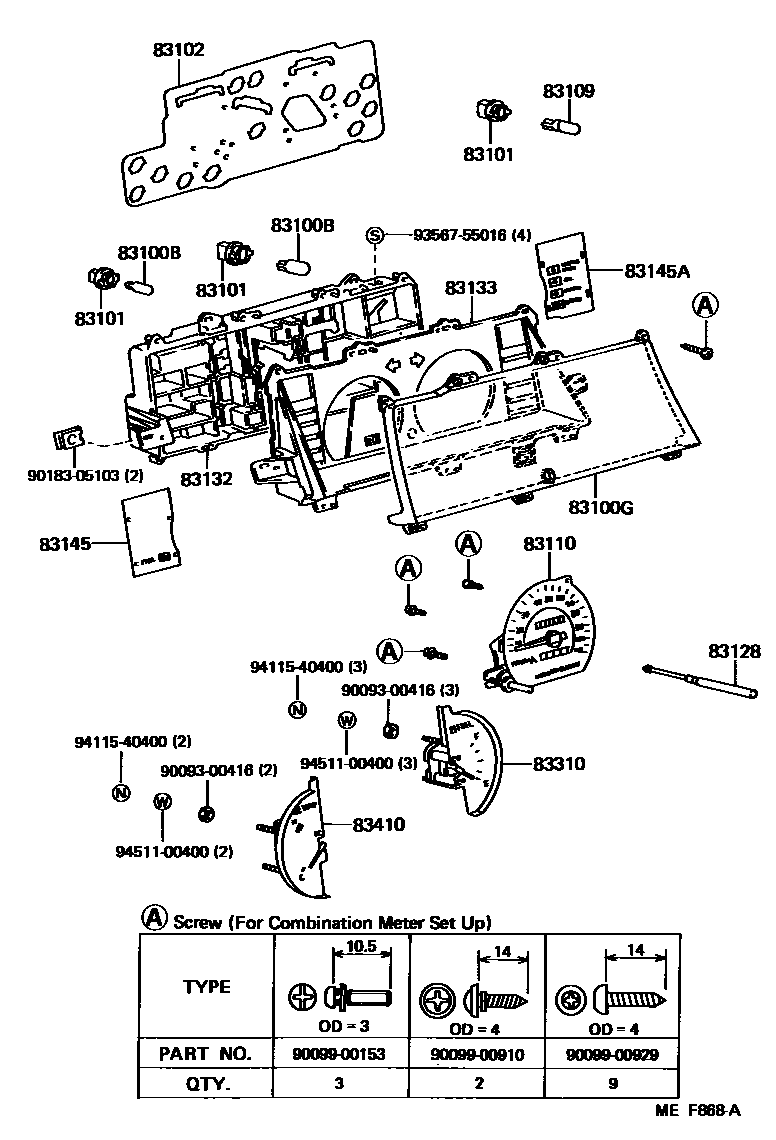

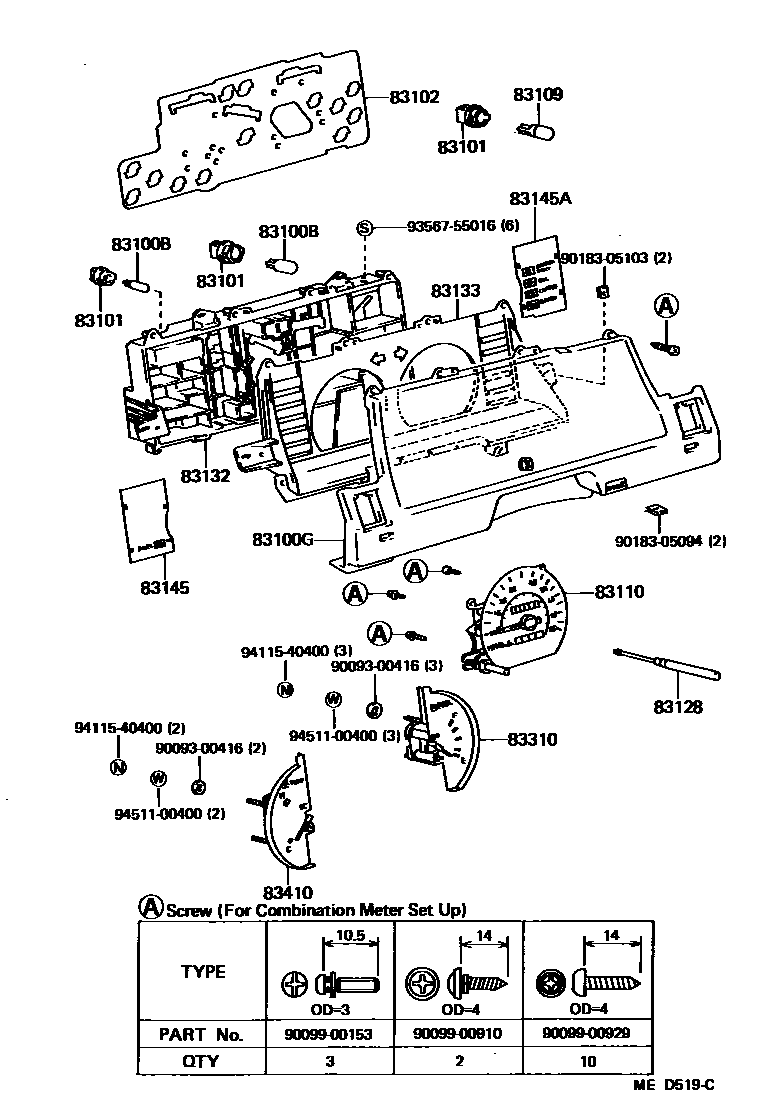

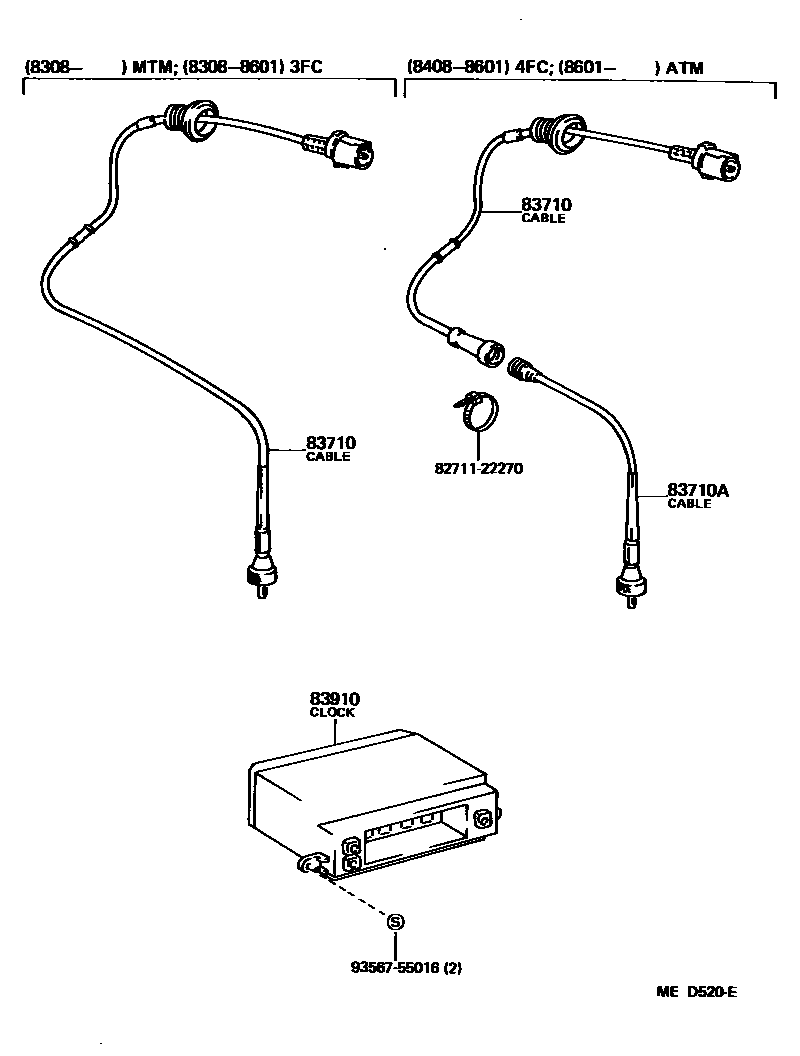

Toyota COROLLA EPC diagram 8301, 仪表, with 5 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100B | Combination instrument bulb No. 1 | 90981-11018 · 99132-12034 |
| 83100G | Instrument cluster glass | 83138-12470 · 83138-12490 · 83138-12530 · 83138-12730 · 83138-12810 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-14030 · 83101-14040 |
| 83102 | Combination instrument No. 1 circuit board sub-assembly | 83247-1A630 · 83247-1A650 · 83247-1A670 · 83247-1A690 · 83247-1E690 · 83247-1E710 |
| 83109 | Combined instrument bulb No. 2 | 83109-24030 |
| 83110 | Speedometer assembly | 83110-1A490 · 83110-1A491 · 83110-1A492 · 83110-1A500 · 83110-1A501 · 83110-1A502 · 83110-1A510 · 83110-1A511 · 83110-1A512 · 83110-1A520 · 83110-1A521 · 83110-1A522 · 83110-1A590 · 83110-1A591 · 83110-1A750 · 83110-1A751 · 83110-1A760 · 83110-1A761 |
| 83128 | trip odometer handle | 83128-12690 · 83128-12710 |
| 83132 | Instrument cluster housing | 83132-12530 · 83132-12570 |
| 83133 | Combined instrument panel No. 1 | 83133-12630 · 83133-12670 · 83133-1A110 · 83133-1A150 |
| 83145 | Instrument No. 1 lampshade | 83145-12710 · 83145-12730 · 83145-12750 · 83145-1A470 · 83145-1A630 · 83145-1E210 |
| 83145A | Instrument No. 2 lampshade | 83145-12850 · 83145-1A450 · 83145-1A750 · 83145-1E150 |
| 83270 | Engine tachometer assembly | 83242-1A210 · 83242-1A410 |
| 83310 | Fuel gauge assembly | 83243-12550 · 83243-12890 · 83243-1A070 |
| 83410 | Water temperature meter assembly | 83244-12790 · 83244-1A390 · 83244-1A490 |
| 83710 | No. 1 speedometer transmission cable assembly | 83710-12260 · 83710-12330 · 83710-12370 · 83710-12390 |
| 83710A | No. 2 speedometer transmission cable assembly | 83710-12360 · 83710-12530 |
| 83910 | clock assembly | 83910-12330 |
