Toyota COROLLA 线束和卡夹 — Figure 8202
Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 8 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82001 | Connection cable No. 1 | 90980-07206 · 90980-07228 · 90980-07236 |
| 82011 | Brake warning system wiring harness assembly | 82011-20040 |

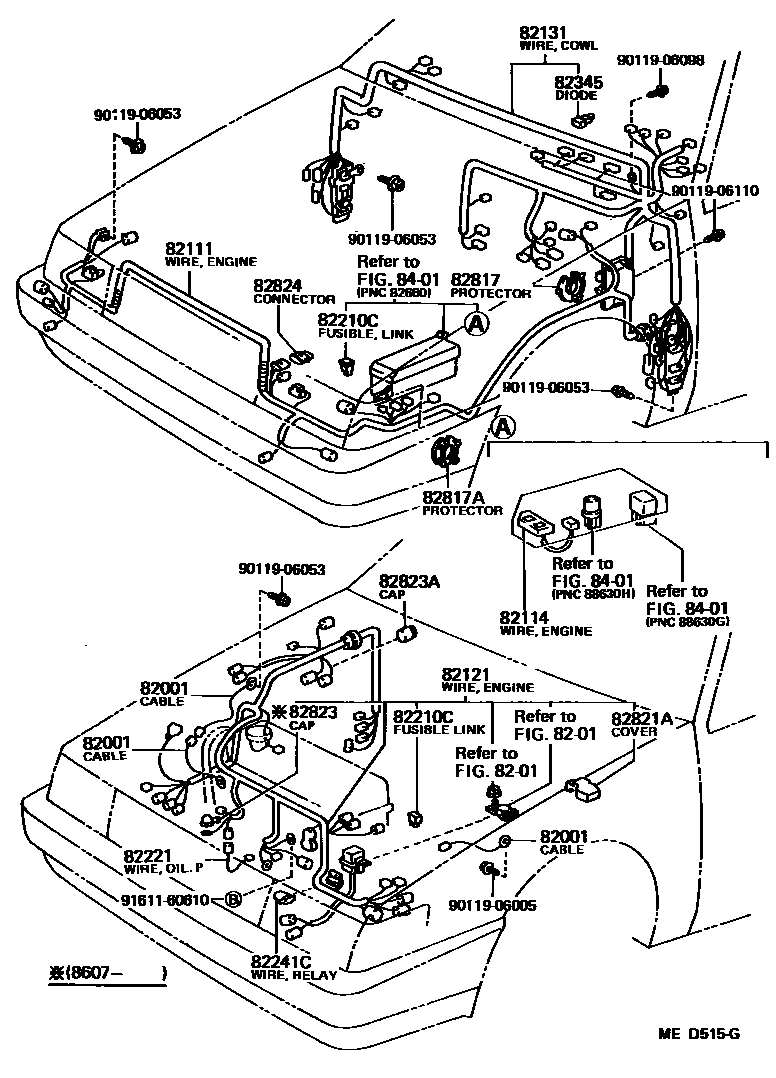

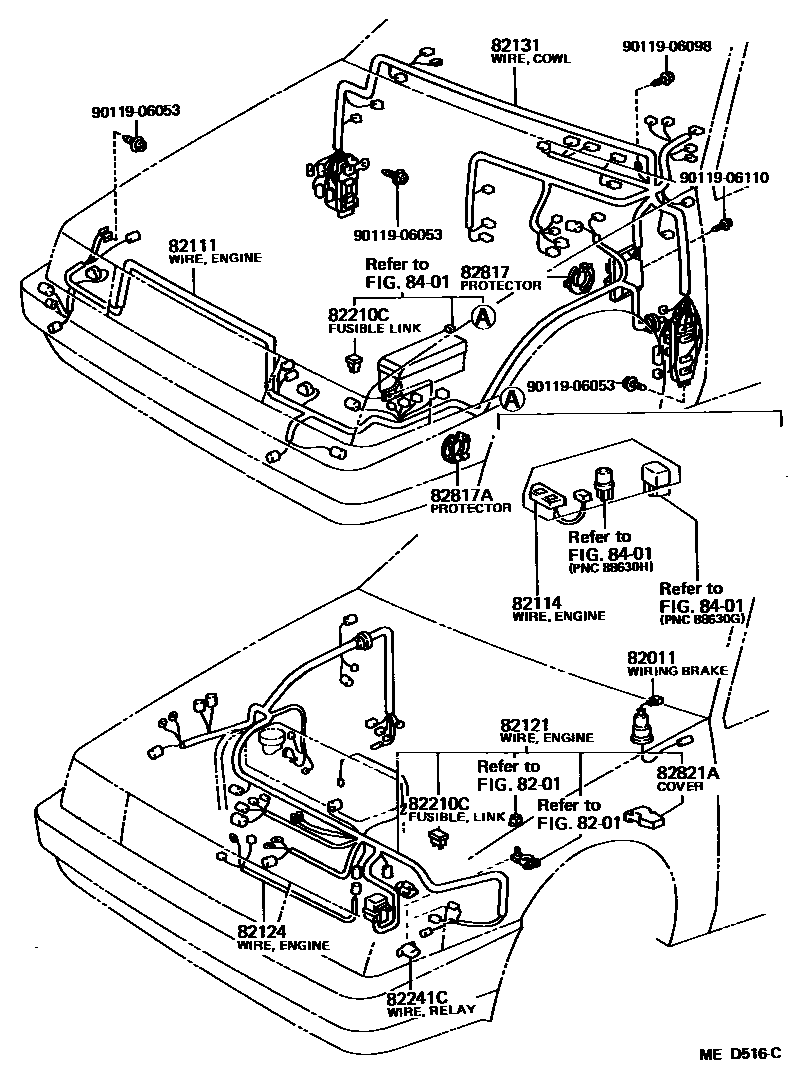

| 82111 | Engine room main wiring harness | 82111-12260 · 82111-12261 · 82111-12710 · 82111-12711 |
| 82114 | Engine room wiring harness No. 4 | 82114-12010 · 82114-12020 |
| 82121 | Engine wiring harness | 82121-12090 · 82121-12091 · 82121-12092 · 82121-12100 · 82121-12101 · 82121-12102 · 82121-12110 · 82121-12111 · 82121-12120 · 82121-12121 · 82121-12530 · 82121-12531 · 82121-12532 · 82121-12540 · 82121-12541 · 82121-12542 · 82121-12550 · 82121-12551 · 82121-12552 · 82121-12560 · 82121-12561 · 82121-12562 · 82121-12890 · 82121-1A010 |
| 82124 | Engine No. 4 wiring harness | 82124-12030 |
| 82131 | Front panel wiring harness | 82131-12450 · 82131-12451 · 82131-12452 · 82131-12453 · 82131-12460 · 82131-12461 · 82131-12462 · 82131-12463 · 82131-12470 · 82131-12471 · 82131-1A030 · 82131-1A031 · 82131-1A032 · 82131-1A033 · 82131-1A040 · 82131-1A041 · 82131-1A042 · 82131-1A050 · 82131-1A051 · 82131-1A052 · 82131-1A550 · 82131-1A551 · 82131-1A570 |
| 82151 | Right front door wiring harness | 82151-12030 · 82151-12120 · 82151-12140 · 82151-12180 · 82151-12190 |
| 82151A | Right front door wiring harness No. 2 | 82151-12060 |
| 82152 | Left front door wiring harness | 82152-12030 · 82152-12090 · 82152-12110 · 82152-12150 · 82152-12160 |
| 82152A | Left front door wiring harness No. 2 | 82151-12060 |
| 82153A | Right rear door wiring harness | 82153-12040 · 82153-12050 |
| 82154A | Left rear door wiring harness | 82154-12030 · 82154-12050 |

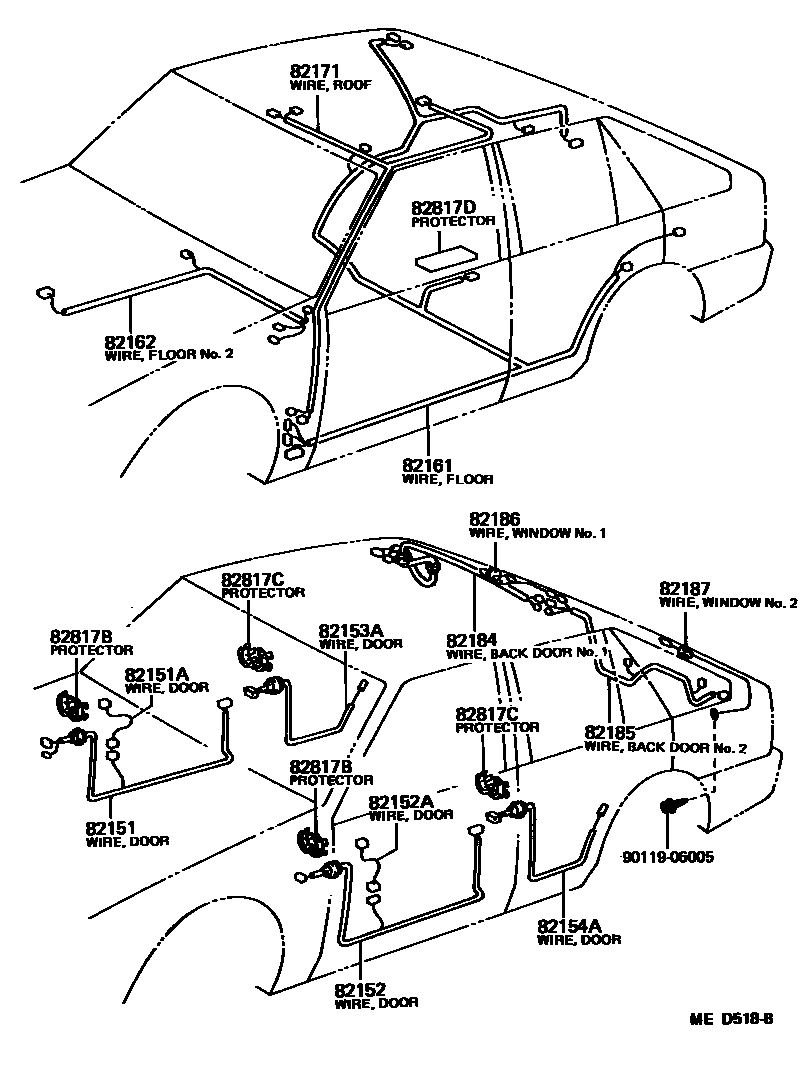

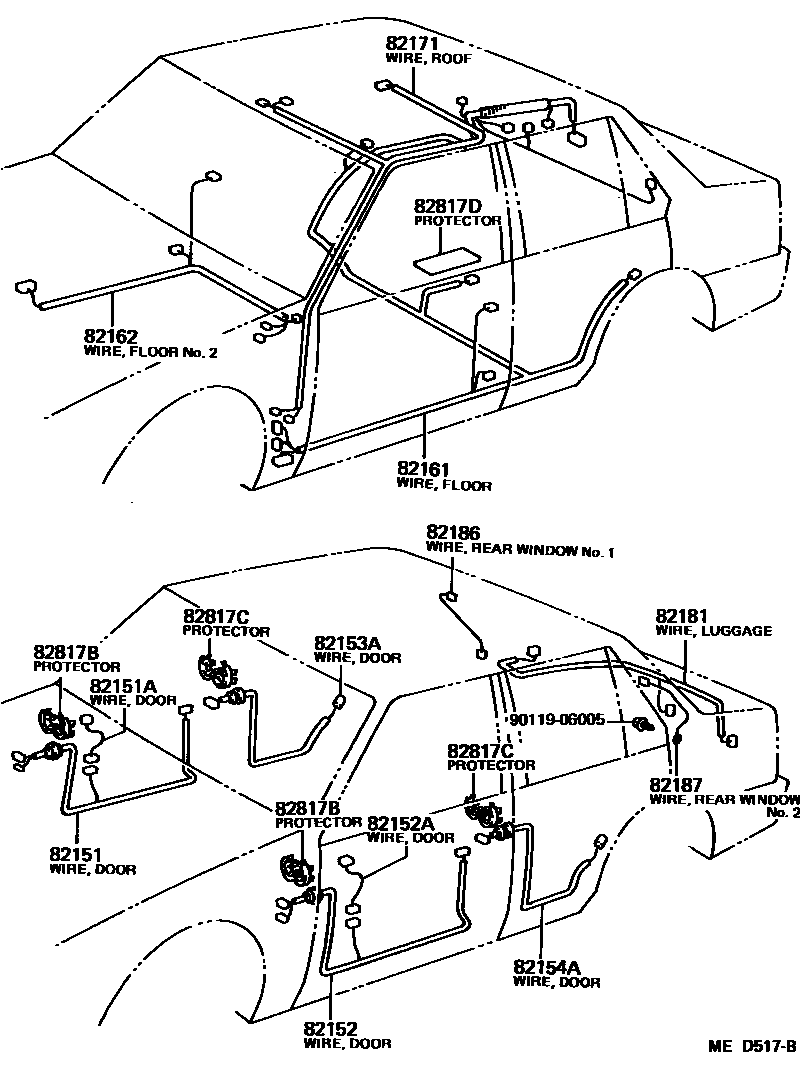

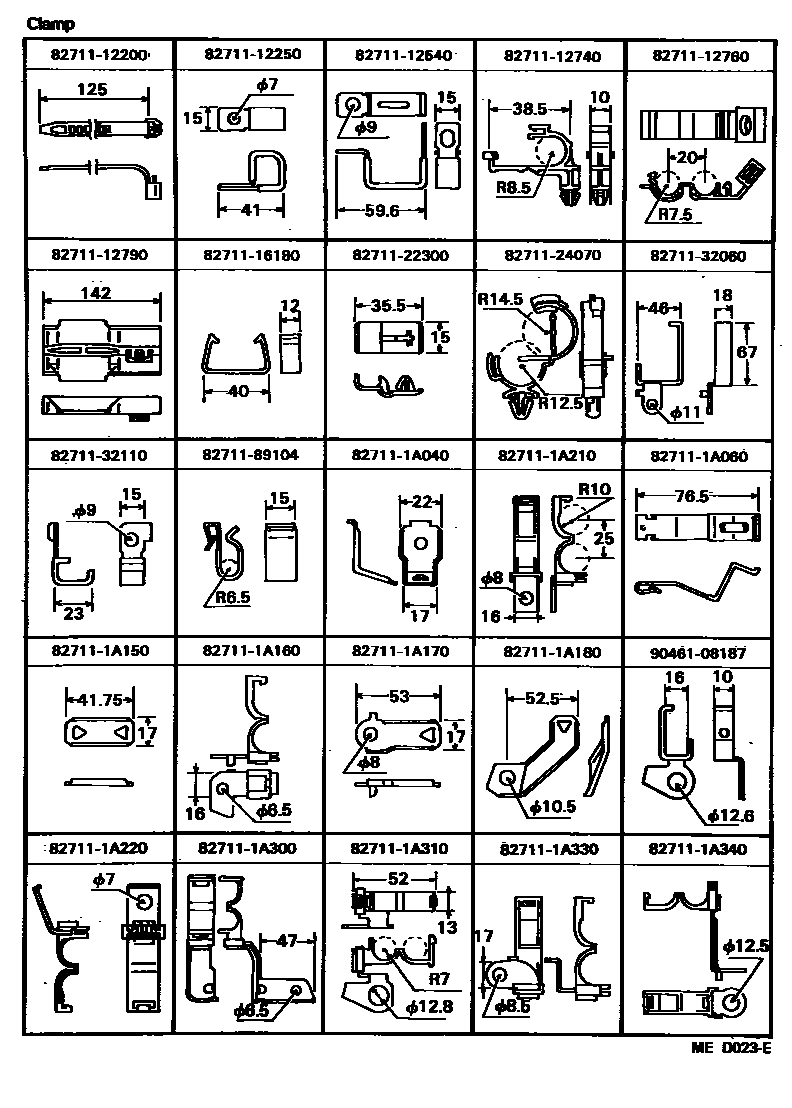

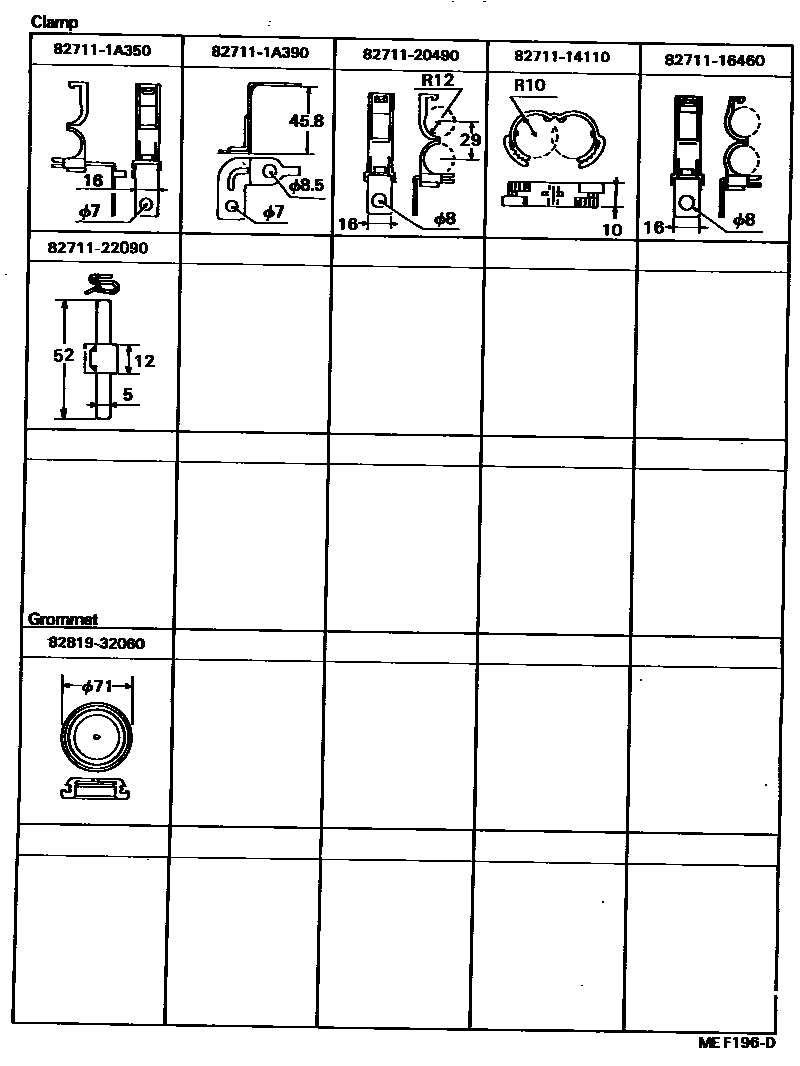

| 82161 | floor wiring harness | 82161-12140 · 82161-12141 · 82161-12150 · 82161-12151 · 82161-12450 · 82161-12570 · 82161-12580 · 82161-12680 · 82161-12700 |
| 82162 | Floor wiring harness No. 2 | 82162-12150 · 82162-12151 · 82162-12152 · 82162-12160 · 82162-12161 · 82162-12162 · 82162-12370 · 82162-12380 · 82162-12440 · 82162-12510 · 82162-12520 · 82162-12530 |
| 82171 | Roof No. 1 wiring harness | 82171-12040 · 82171-12050 · 82171-12080 · 82171-12090 |
| 82181 | Luggage No. 1 wiring harness | 82181-12050 · 82181-12080 |
| 82184 | Rear door No. 1 wiring harness | 82184-12010 · 82184-12020 · 82184-12150 |
| 82185 | Rear door wiring harness No. 2 | 82185-12010 · 82185-12020 · 82185-12180 · 82185-12190 |
| 82186 | Rear window wiring harness No. 1 | 82186-12010 · 82186-12020 · 82186-12080 |
| 82187 | Rear window wiring harness No. 2 | 82187-12010 · 82187-12020 · 82187-12070 · 82187-12080 |
| 82210C | fuse | 90982-08188 · 90982-08189 · 90982-08190 · 90982-08202 · 90982-08203 |
| 82221 | Oil pressure switch wiring harness | 82221-16030 |
| 82241C | Relay harness | 82824-12110 |
| 82345 | diode | 82345-12020 · 82345-12050 · 82345-22010 · 82345-32020 |
| 82817 | No. 1 wire harness protection device | 82817-14360 |
| 82817A | No. 2 wire harness protection device | 82817-32010 |
| 82817B | No. 3 wire harness protection device | 82817-20320 |
| 82817C | No. 4 wire harness protection device | 82817-20330 |
| 82817D | No. 5 wire harness protection device | 82817-16100 |
| 82821A | Connector cover | 82821-12180 · 82821-12190 |
| 82823 | No. 1 terminal cover | 82823-17010 |
| 82823A | Terminal cover No. 2 | 82823-30010 |
| 82824 | Harness connector | 82824-32030 |

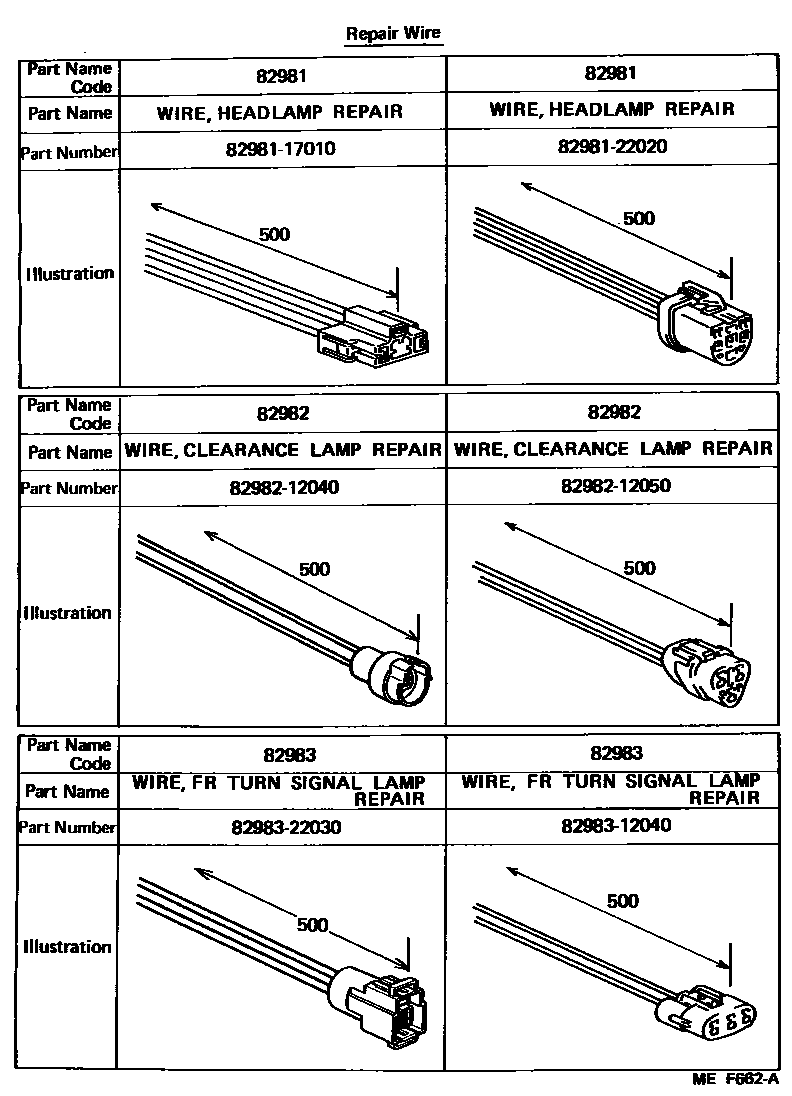

| 82981 | Headlight repair line | 82981-17010 · 82981-22020 |
| 82982 | Width light repair line | 82982-12040 · 82982-12050 |
| 82983 | Front turn signal lamp repair line | 82983-12040 · 82983-22030 |

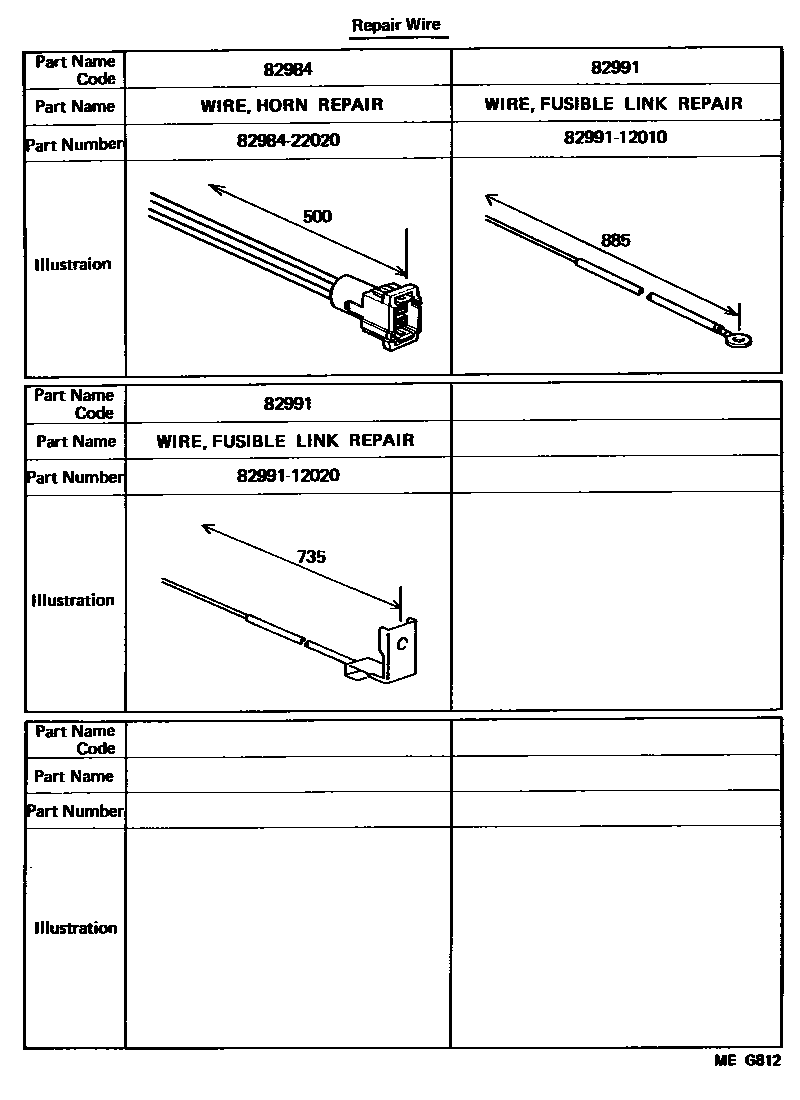

| 82984 | Speaker repair line | 82984-22020 |
| 82991 | Fuse repair line | 82991-12010 · 82991-12020 |
