Toyota COROLLA 后牌照灯 — Figure 8113

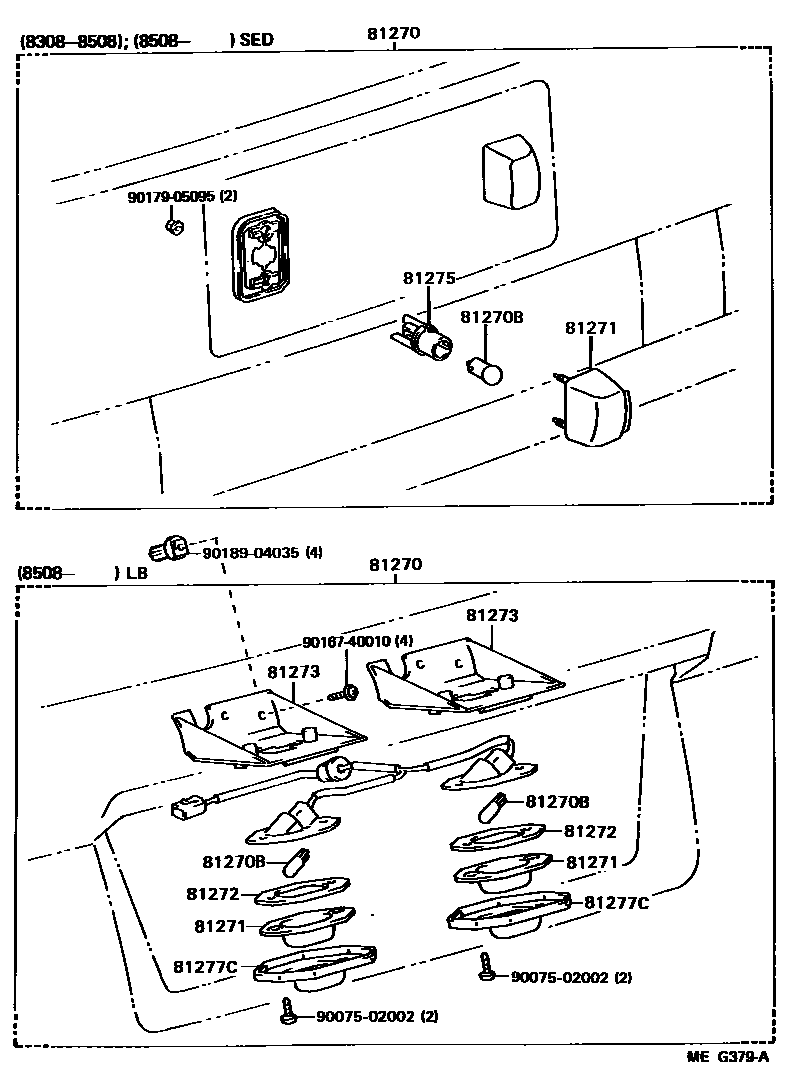

Toyota COROLLA EPC diagram 8113, 后牌照灯, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-12230 · 81270-12341 · 81270-80009 · 81270-80025 |
| 81270B | Bulb (for license plate light) | 90981-12012 · 99132-11075 · 99132-12050 |
| 81271 | license plate lamp shade | 81271-12230 · 81271-12340 · 81271-17010 |
| 81272 | License plate lamp shade gasket | 81272-24010 |
| 81273 | license plate light bracket | 81279-12341 |
| 81275 | License plate lamp holder and wiring harness | 81275-12230 · 81275-12240 |
| 81277C | Right license plate light shade | 81277-12340 |
