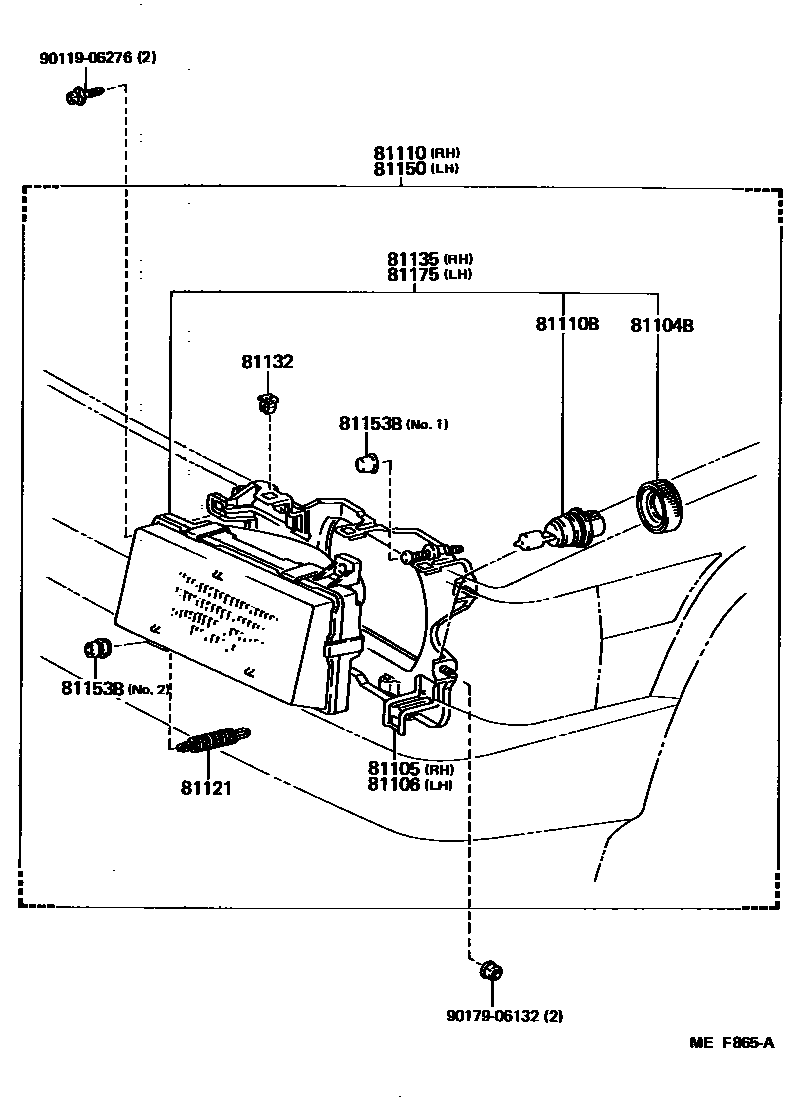

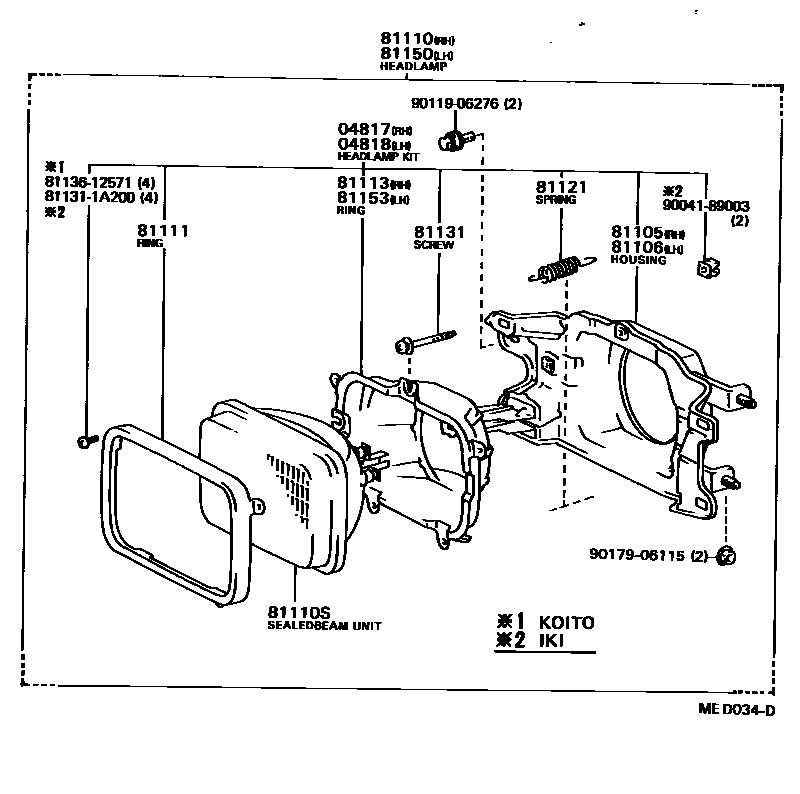

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04817 | Right headlight assembly (without closed headlight) | 04817-12120 |
| 04818 | Left headlight assembly (without closed headlight) | 04818-12120 |
| 81104B | headlight lock cover | 81104-22520 |
| 81105 | Right headlight housing sub-assembly | 81105-1A190 · 81105-1A191 · 81105-1A200 |
| 81106 | Left headlight housing sub-assembly | 81106-1A140 · 81106-1A141 · 81106-1A150 |
| 81110 | Right headlight assembly | 81110-1A191 · 81110-80316 · 81110-80317 · 81110-80318 |
| 81110B | Bulb (for headlight No. 1) | 90981-13032 |
| 81110S | No. 1 enclosed lamp assembly | 90981-04003 · 90981-04004 · 90981-04020 |
| 81111 | Closed headlight retaining ring | 81111-1A190 · 81111-1A200 |
| 81113 | Right No. 1 closed lamp seat | 81113-1A190 · 81113-1A200 |
| 81121 | headlight spring | 81121-16020 · 81121-1A191 · 81121-1A200 |
| 81131 | Headlight adjustment screw | 81131-14670 · 81131-16030 |
| 81132 | Headlight self-locking nut | 81137-22530 |
| 81135 | Right headlight assembly | 81130-1A191 |
| 81150 | Left headlight assembly | 81150-1A141 · 81150-80313 · 81150-80314 · 81150-80315 |
| 81153 | No. 1 closed lamp seat on the left | 81153-1A140 · 81153-1A150 |
| 81153B | headlight support | 81127-1A191 · 81132-32121 |
| 81175 | Left headlight assembly | 81170-1A141 |
