Toyota COROLLA accelerator pedal connecting rod — Figure 7801

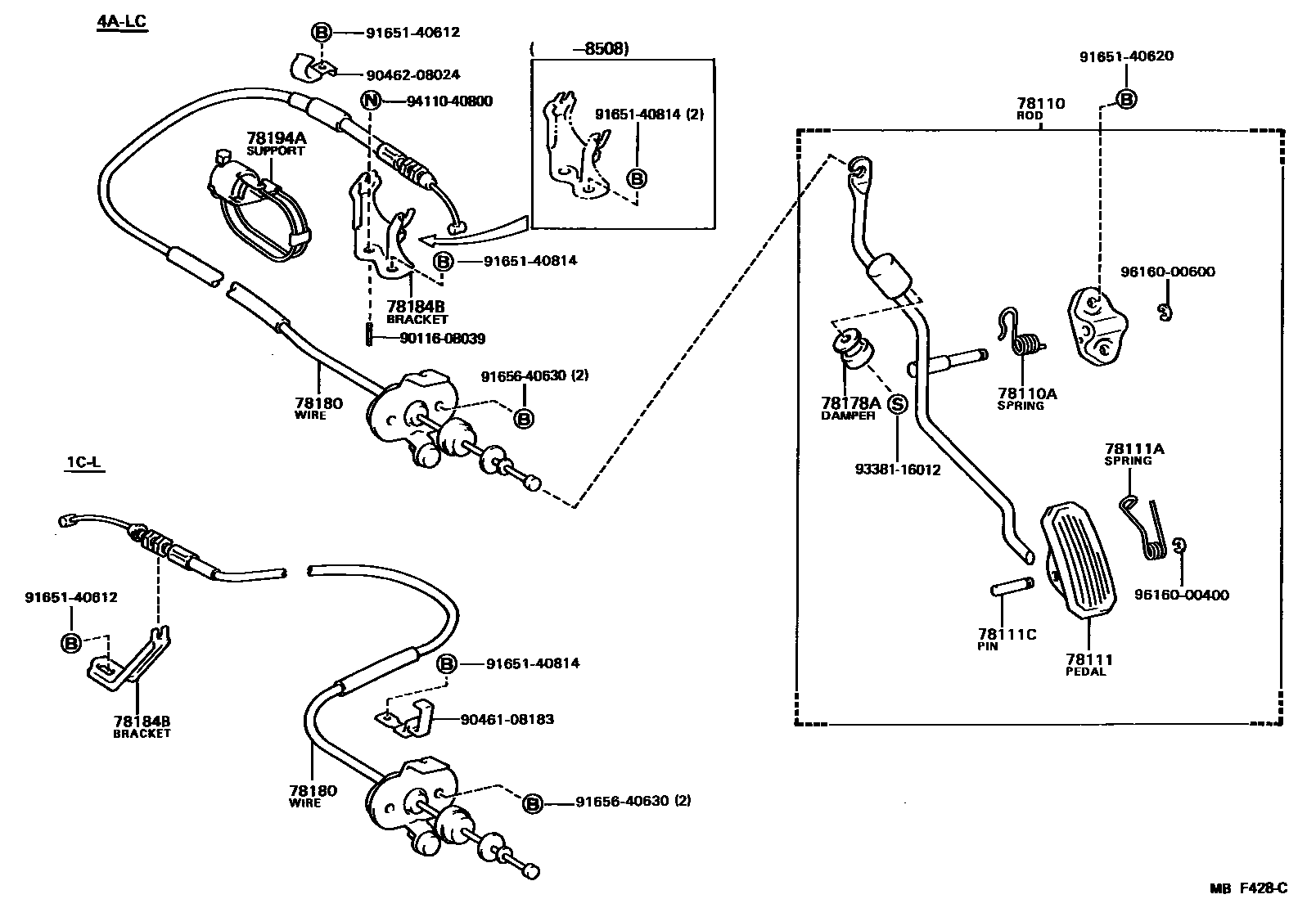

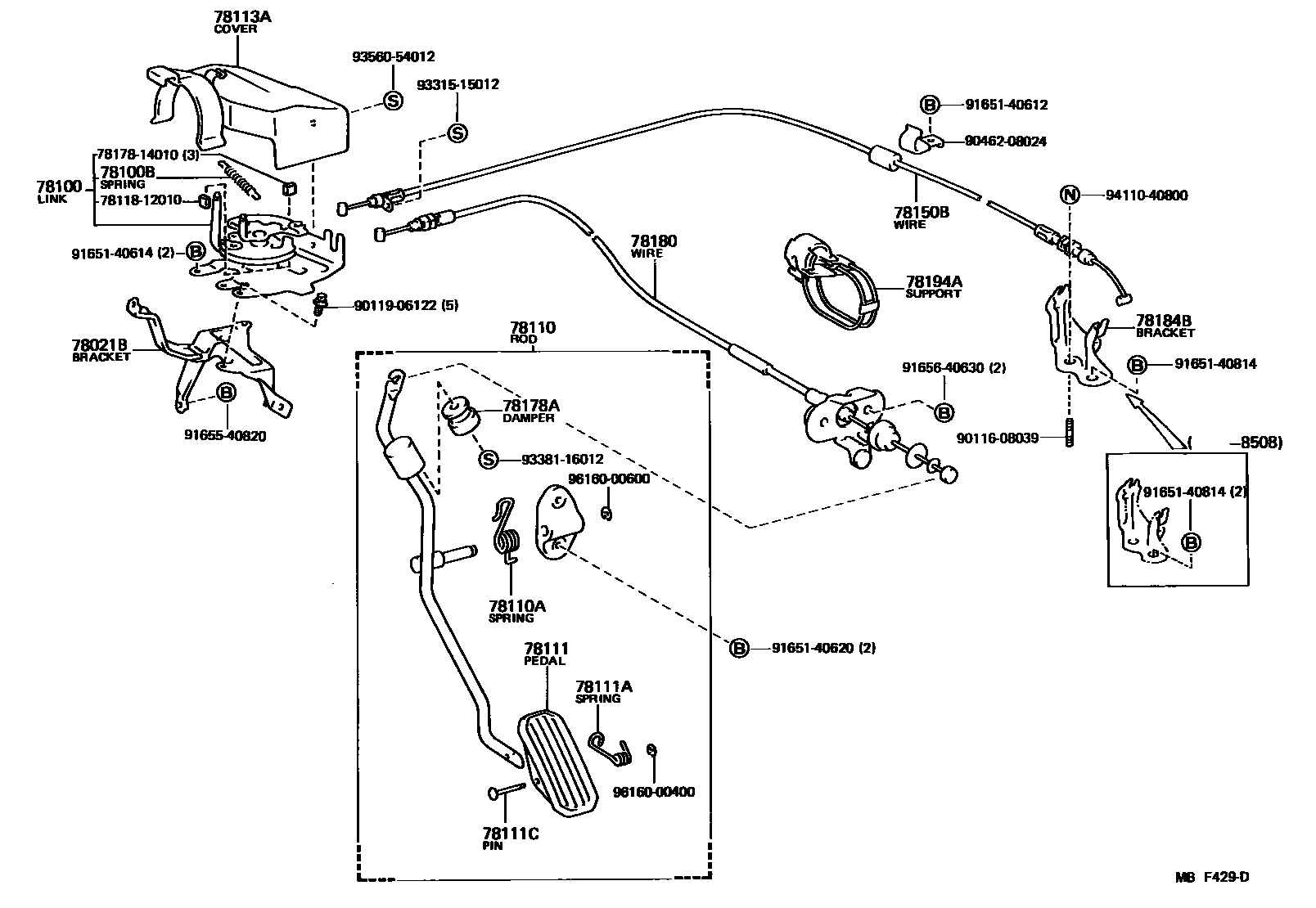

Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78021B | Accelerator pedal control right-angle lever bracket sub-assembly | 78021-12020 |
| 78100 | Accelerator pedal connecting rod assembly | 78100-12080 · 78100-32020 |
| 78100B | Spring (for accelerator pedal linkage) | 90506-08019 |
| 78110 | Accelerator pedal lever assembly | 78120-12030 · 78120-12040 · 78120-12050 · 78120-12060 |
| 78110A | Spring (for accelerator pedal lever) | 90508-18025 · 90508-26036 |
| 78111 | accelerator pedal | 78111-32010 |
| 78111A | Spring (for gas pedal) | 90508-20056 |
| 78111C | pin (for gas pedal) | 90249-05001 |
| 78113A | Automatic transmission accelerator pedal connecting rod cover | 78113-12110 · 78113-32020 |
| 78150B | Accelerator pedal automatic transmission cable assembly | 78150-12070 |
| 78178A | Accelerator pedal lever dynamic damper | 78178-12030 |
| 78180 | Throttle cable assembly | 78180-12500 · 78180-12550 · 78180-12650 · 78180-12651 |
| 78184B | Throttle pedal control cable bracket | 78184-12160 · 78184-12170 |
| 78194A | No. 4 accelerator pedal control cable bracket | 78194-12040 · 78194-12041 |
