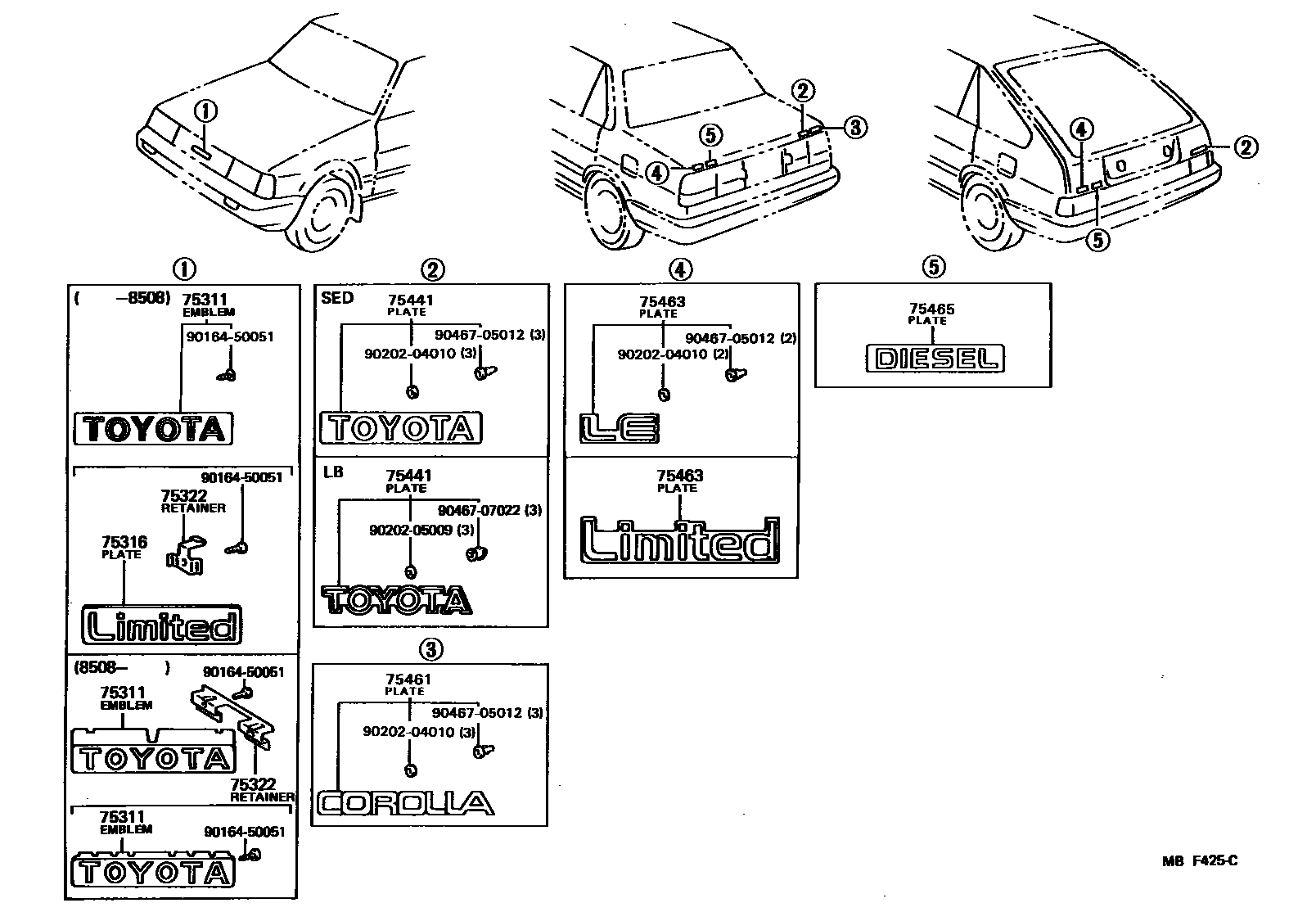

Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501
Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-1A350 · 75311-1A380 · 75311-1A400 · 75311-80030 |
| 75316 | Radiator grille nameplate | 75316-12020 |
| 75322 | Radiator grille nameplate fasteners | 75324-12060 · 75324-12080 |
| 75441 | Rear No. 1 nameplate (factory mark) | 75441-12290 · 75441-12300 · 75441-12340 · 75441-12350 |
| 75461 | Rear No. 2 nameplate (model mark) | 75442-12770 · 75442-12810 |
| 75463 | Rear No. 4 nameplate (grade mark) | 75443-12470 · 75443-12660 · 75446-12120 |
| 75465 | No. 5 nameplate (organization) | 75445-12050 · 75445-12090 |
