Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

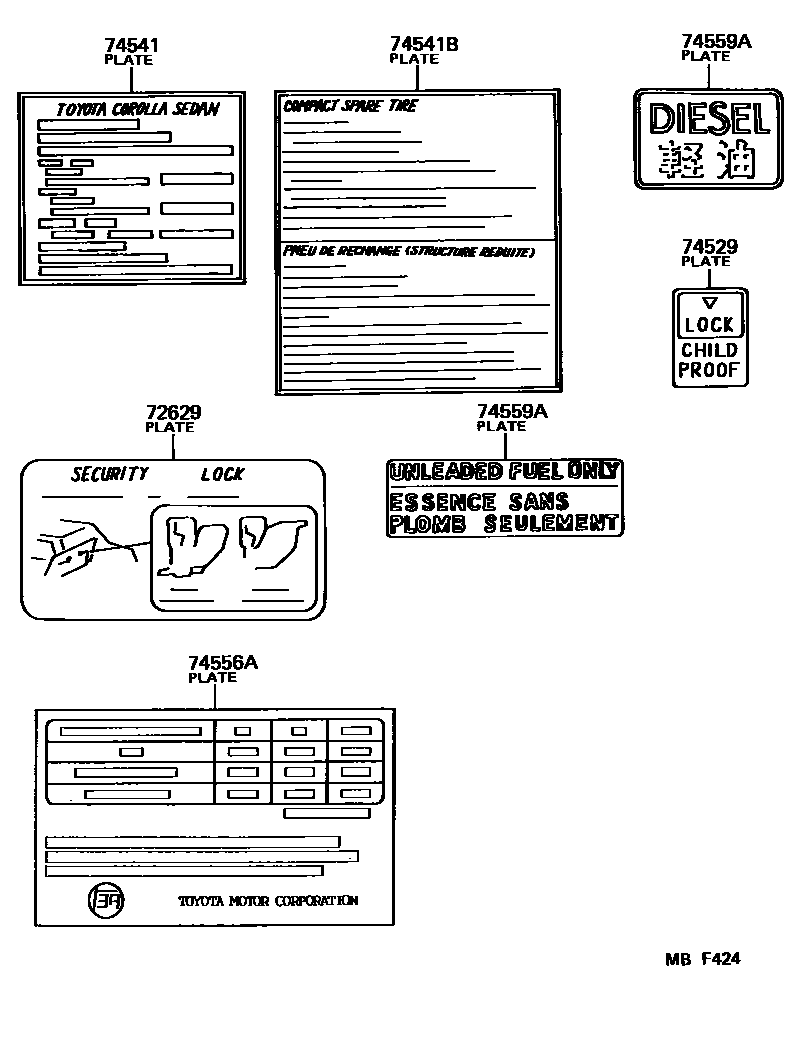

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 72629 | Rear seat back lock rear warning plate | 72629-12010 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-12010 |
| 74541 | tire pressure warning plate | 42661-12600 · 42661-12611 · 42661-12660 · 42661-12760 · 42661-12770 |
| 74541B | Small spare tire warning plate | 42668-12010 · 42668-14010 |
| 74556A | Exhaust emission data plate | 74556-12118 |
| 74559A | Fuel warning plate | 74559-14030 · 74559-14040 · 74559-20041 |
