Toyota COROLLA 锁芯组件 — Figure 6712

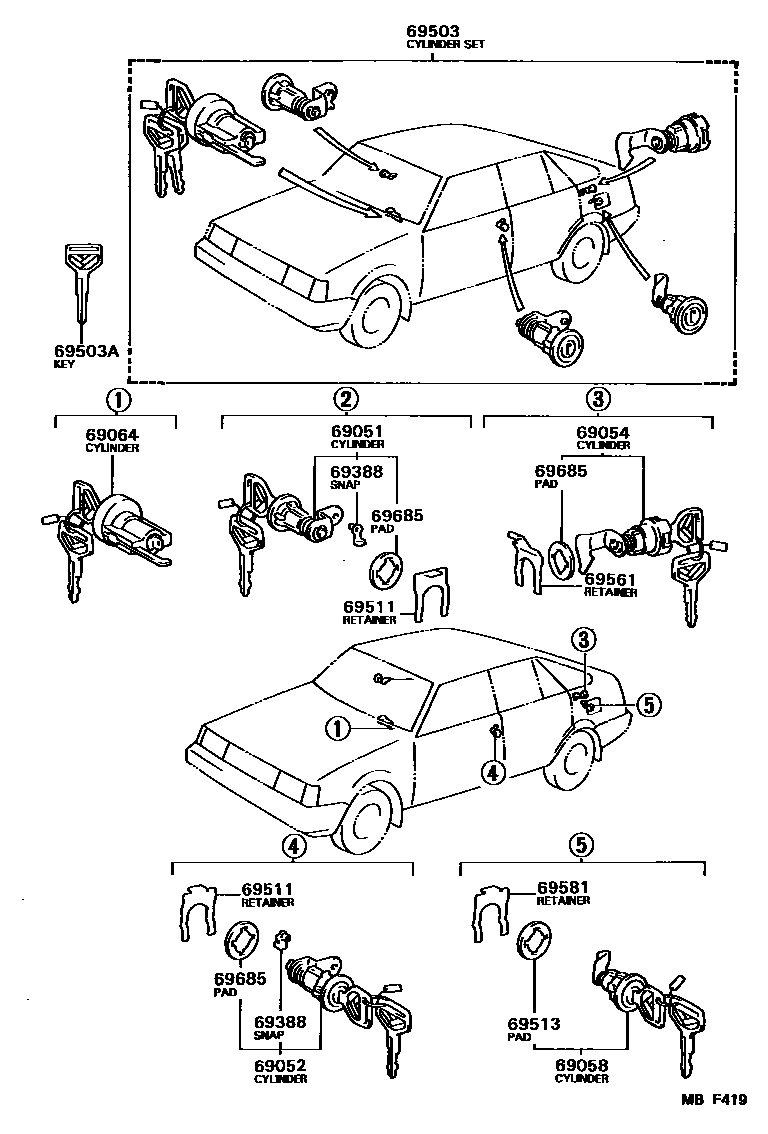

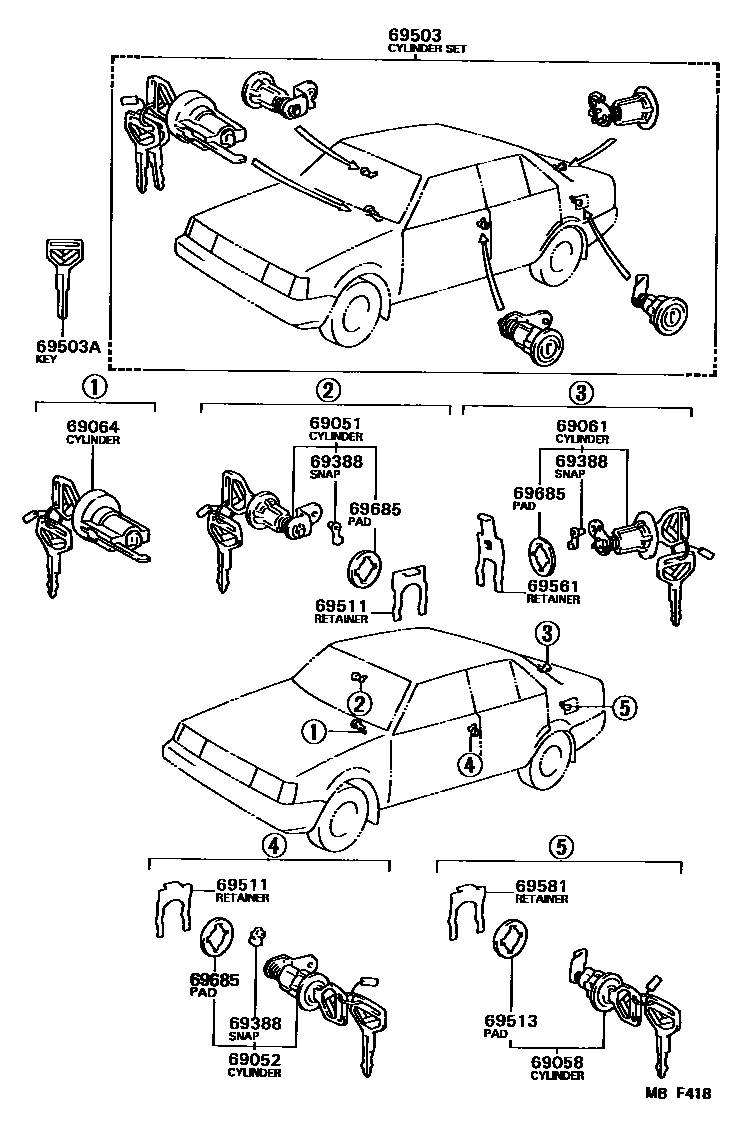

Toyota COROLLA EPC diagram 6712, 锁芯组件, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-12180 |
| 69052 | Left door lock cylinder and key assembly | 69052-12180 |
| 69054 | Rear door lock cylinder and key assembly | 69055-12280 · 69055-12290 |
| 69058 | Fuel filler cap lock cylinder and key assembly | 69058-12110 |
| 69061 | Luggage lock cylinder and key assembly | 69055-12240 · 69055-12250 |
| 69064 | Ignition switch lock cylinder and key assembly | 69057-16061 |
| 69388 | Lever clip (for door lock) | 69759-20080 · 69759-20090 |
| 69503 | Door lock cylinder components | 69005-12340 · 69005-12380 · 69005-12390 · 69005-12570 |
| 69503A | external tooth key | 90999-00085 · 90999-00094 · 90999-00106 |
| 69511 | Front door lock cylinder fixing parts | 69511-32010 |
| 69513 | Fuel filler cap lock cylinder gasket | 69513-32010 |
| 69561 | Trunk or tailgate lock cylinder fixings | 69561-12120 · 69561-12150 |
| 69581 | Fuel filler cap lock cylinder fixing piece | 69511-32010 |
| 69685 | Lock cylinder liner | 69513-32010 · 69563-12010 · 69563-32010 |
