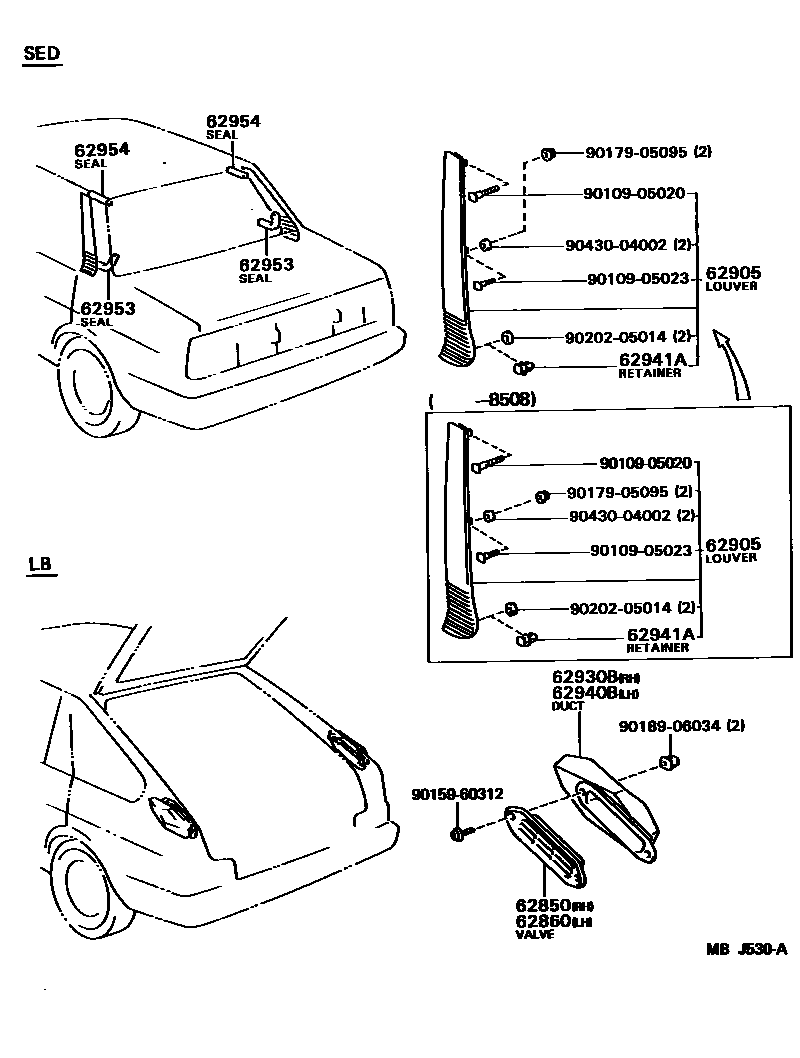

Toyota COROLLA 车侧通风装置 — Figure 6102
Toyota COROLLA EPC diagram 6102, 车侧通风装置, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62850 | Right compartment pressure reducing valve assembly | 62850-12050 |
| 62860 | Left compartment pressure reducing valve assembly | 62850-12050 |
| 62905 | Side ventilation grilles | 62905-12290 · 62905-12300 · 62905-19335 · 62906-12290 · 62906-12300 · 62906-19315 |
| 62930B | Right side ventilation duct assembly | 62931-12180 |
| 62940B | Left side ventilation duct assembly | 62932-12180 |
| 62941A | Side ventilation duct fixings | 62955-20020 |
| 62953 | Side ventilation duct No. 1 seal | 62957-12050 |
| 62954 | Side ventilation duct No. 2 seal | 62958-12010 |
