Toyota COROLLA 侧梁 — Figure 6101

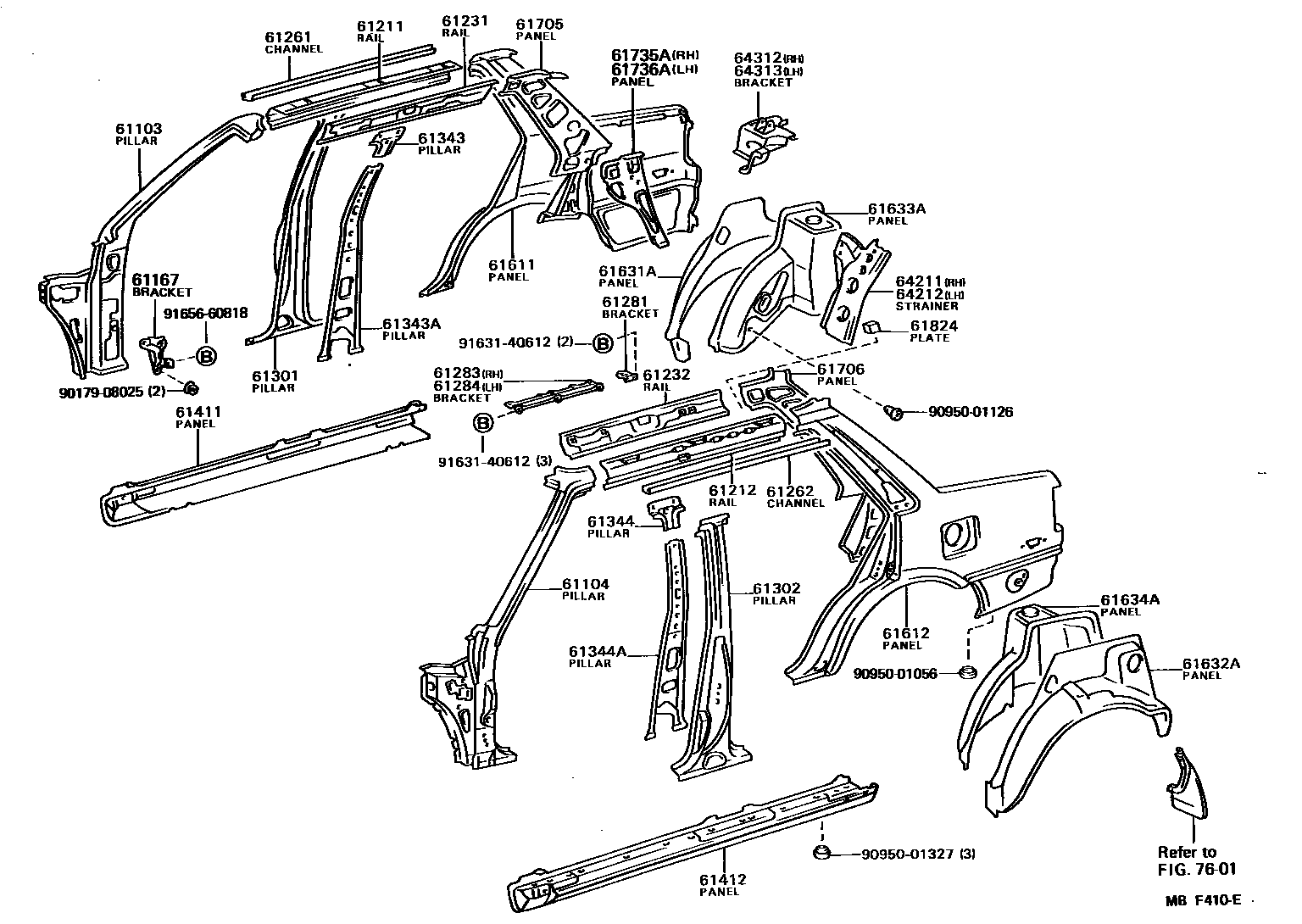

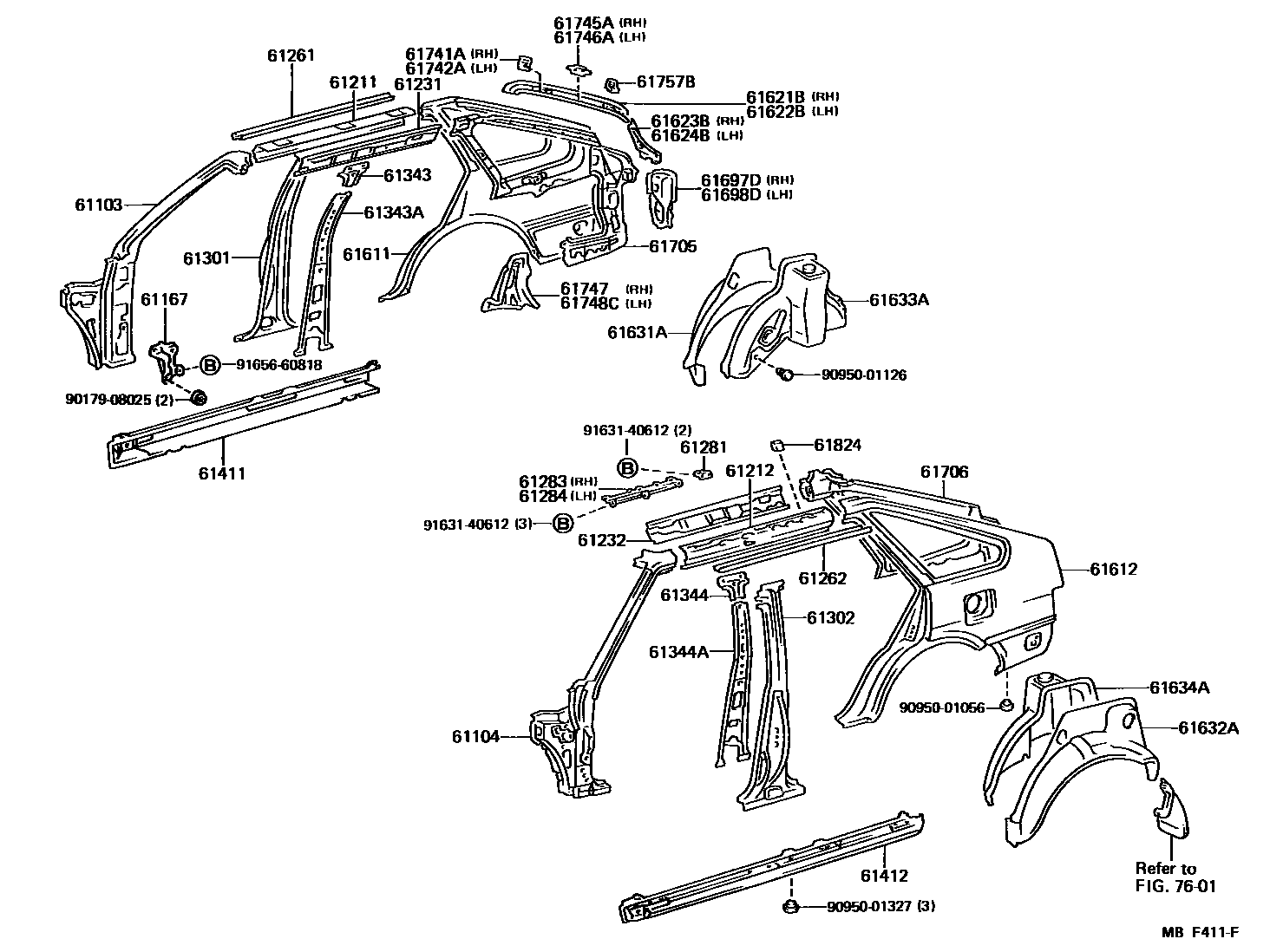

Toyota COROLLA EPC diagram 6101, 侧梁, with 2 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61103 | Right body front pillar sub-assembly | 61021-12410 · 61021-12420 · 61021-12480 · 61021-12490 |
| 61104 | Left body front pillar sub-assembly | 61022-12470 · 61022-12480 · 61022-12540 · 61022-12550 |
| 61167 | Dashboard to right front wall side bracket | 61035-12030 |
| 61211 | Roof right outer longitudinal beam | 61211-12190 · 61211-12200 |
| 61212 | Roof left outer longitudinal beam | 61212-12190 · 61212-12200 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-12350 · 61231-12360 · 61231-12390 · 61231-12400 |
| 61232 | Roof left inner longitudinal beam | 61232-12250 · 61232-12260 · 61232-12290 · 61232-12300 |
| 61261 | Drainage channel on the right side of the roof | 61265-12060 · 61265-12080 |
| 61262 | Drainage channel on the left side of the roof | 61266-12060 · 61266-12080 |
| 61281 | Sliding skylight frame No. 1 mounting bracket | 61281-12020 |
| 61283 | Sliding sunroof frame No. 3 right mounting bracket | 61283-12020 |
| 61284 | Sliding sunroof frame No. 3 left mounting bracket | 61284-12020 |
| 61301 | Right body center pillar sub-assembly | 61301-12150 |
| 61302 | Left body center pillar sub-assembly | 61302-12200 |
| 61343 | Right inner middle pillar | 61341-12060 |
| 61343A | Right body inner center pillar | 61343-12901 |
| 61344 | Left side inner center pillar | 61342-12060 |
| 61344A | Left body inner center pillar | 61344-12901 |
| 61411 | Right door outer sill panel | 61411-12290 |
| 61412 | Left door outer sill panel | 61412-12300 |
| 61611 | Right side hoarding | 61601-12913 · 61601-1A790 · 61601-1A840 |
| 61612 | left side panel | 61602-12917 · 61602-12918 · 61602-1A380 · 61602-1A390 · 61602-1A470 · 61602-1A480 |
| 61621B | Back door right front opening slot | 61621-12250 |
| 61622B | Back door left front opening slot | 61622-12250 |
| 61623B | Back door right rear opening slot | 61623-12050 |
| 61624B | Back door left rear opening slot | 61624-12050 |
| 61631A | Right wheel cover outer panel | 61631-12160 |
| 61632A | Left side wheel cover outer panel | 61632-12160 |
| 61633A | Right wheel housing lining panel | 61607-12900 · 61607-12901 · 61607-12902 |
| 61634A | Left side wheel housing lining panel | 61608-12900 · 61608-12901 · 61608-12902 |
| 61697D | Right side enclosure end cover | 61697-12030 |
| 61698D | Left side enclosure end cover | 61698-12030 |
| 61705 | Roof right inner panel sub-assembly | 61705-12939 · 61705-12944 |
| 61706 | Roof left inner panel sub-assembly | 61706-12941 · 61706-12946 |
| 61735A | Right rear roof inner panel | 61735-12190 |
| 61736A | Left rear roof inner panel | 61736-12160 |
| 61741A | Rear door opening upper right reinforcement | 61741-12040 |
| 61742A | Rear door opening upper left reinforcement | 61741-12040 |
| 61745A | Back door opening lower right reinforcement | 61745-32010 |
| 61746A | Rear door opening lower left reinforcement | 61745-32010 |
| 61747 | Roof right inner panel to wheel housing bracket | 61747-12070 |
| 61748C | Roof left inner panel to wheel arch bracket | 61748-12070 |
| 61757B | Decoration fixings for lower side of floor panel | 61757-32010 |
| 61824 | Noise Control Panel No. 1 | 61824-12010 |
| 64211 | Glove box to floor right filter | 64211-12060 |
| 64212 | Glove box to floor left filter | 64212-12060 |
| 64312 | Glove box right bracket | 64312-12900 |
| 64313 | Glove box left bracket | 64313-12900 |
