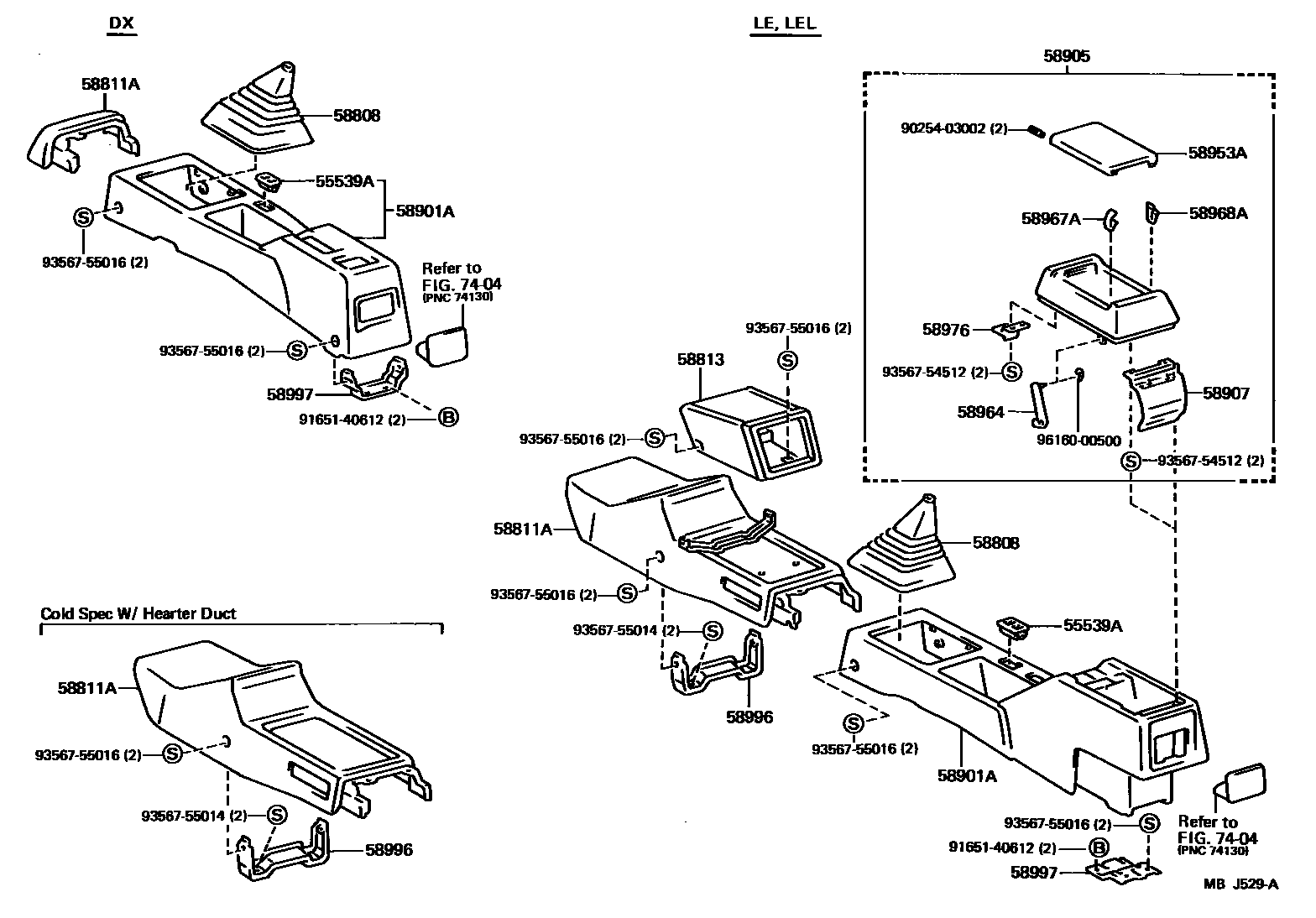

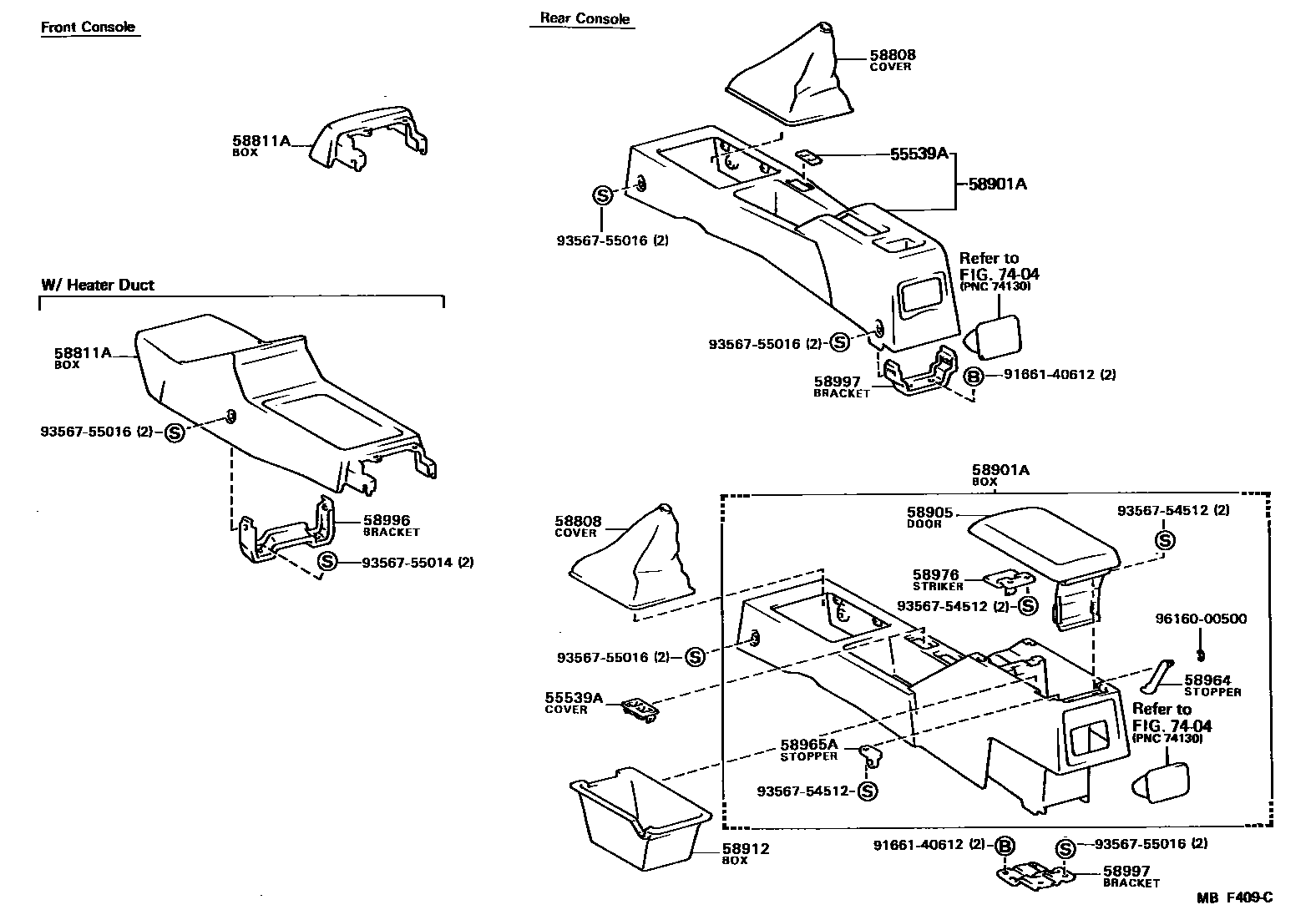

Toyota COROLLA 中央扶手箱和支架 — Figure 5806
Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58907 | Armrest box lid hinge sub-assembly | 58907-12010 |
| 58964 | Armrest box cover No. 1 stop | 58964-30030 |
| 58965A | Armrest box cover No. 2 stopper | 58965-12010 |
| 58967A | Armrest box cover limit spring | 58967-12010 |
| 58968A | Armrest box cover stop bracket | 58968-12010 |
| 58976 | Armrest box lid lock | 58976-20010 · 58976-22020 |
| 58996 | Armrest box No. 1 mounting bracket | 58995-12050 |
| 58997 | Armrest box No. 3 mounting bracket | 58997-12030 · 58997-12040 |
