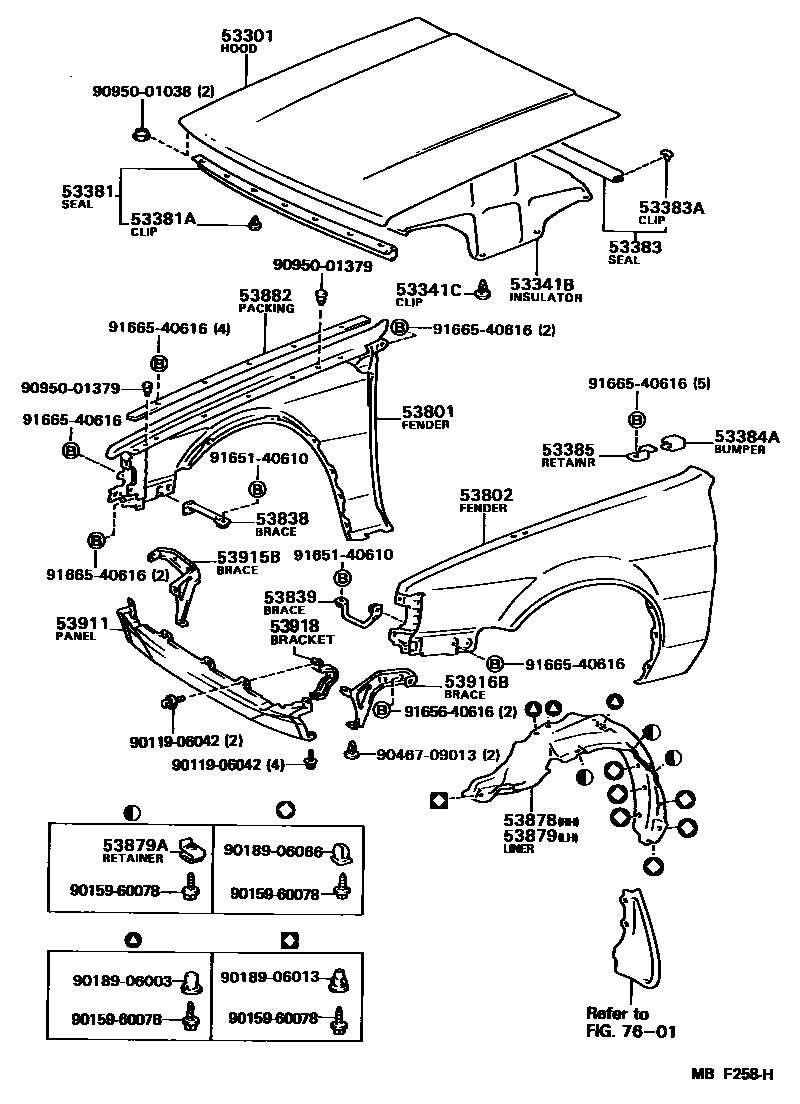

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-12520 · 53301-12521 |
| 53341B | engine cover gasket | 53341-12030 |
| 53341C | Clip (for engine cover gasket) | 90467-09041 · 90467-09050 |
| 53381 | Engine cover to radiator bracket seal | 53381-12130 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53383 | Engine cover to cowl upper cover seal | 53383-12060 |
| 53383A | Clamp (for engine cover to cowl upper cover seal) | 90467-08030 |
| 53384A | fender to engine cover buffer block | 53384-14030 |
| 53385 | Engine cover buffer block fixing | 53385-14010 · 53386-14010 |
| 53801 | Right front fender sub-assembly | 53801-1A780 · 53801-1E250 · 53801-1E360 |
| 53802 | Left front fender sub-assembly | 53802-1A800 · 53802-1E200 · 53802-1E250 |
| 53838 | Right front fender stay | 53835-12040 |
| 53839 | Left front fender stay | 53836-12020 · 53836-12021 |
| 53878 | Right front fender lining | 53875-12080 · 53875-12120 |
| 53879 | Left front fender lining | 53876-12080 · 53876-12110 |
| 53879A | Front fender lining fixing parts | 53879-14010 |
| 53882 | Front fender main seal | 53882-12070 |
| 53911 | front fender | 53911-12290 · 53911-12310 |
| 53915B | Right bracket (baffle to radiator bracket) | 53915-12060 · 53915-12070 |
| 53916B | Left bracket (baffle to radiator bracket) | 53916-12050 · 53916-12060 |
| 53918 | Front fender bracket | 53918-12040 · 53918-12050 |
