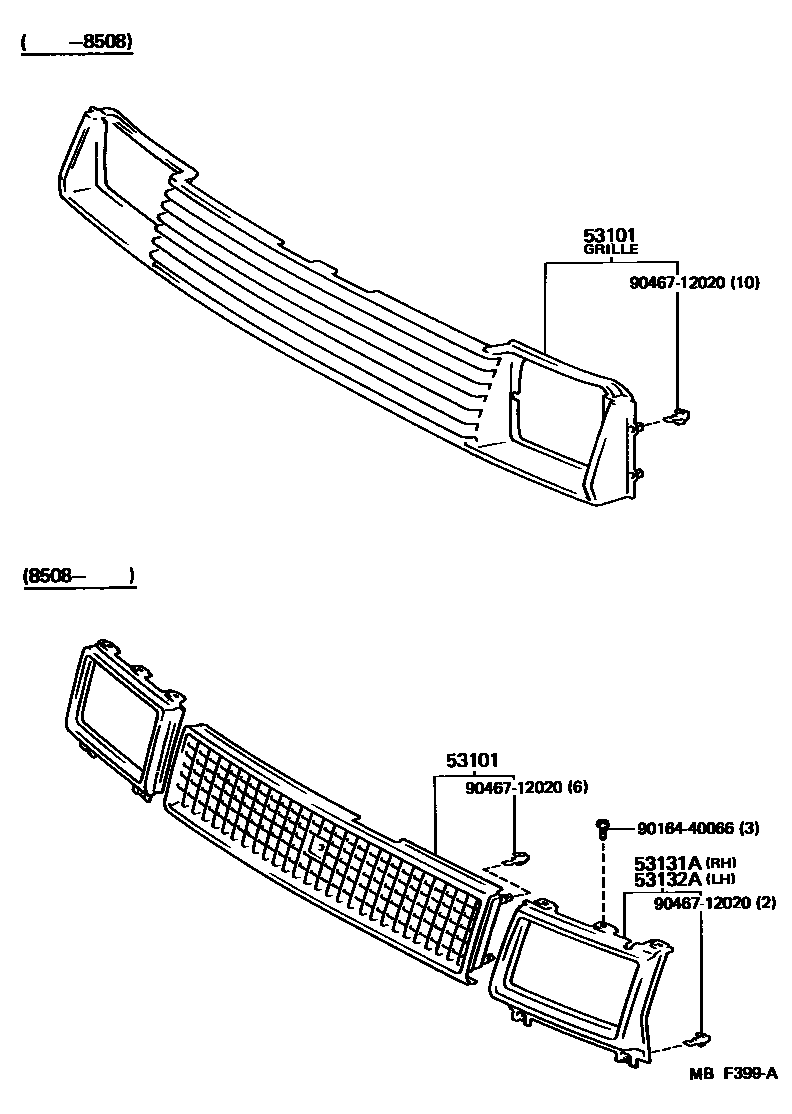

Toyota COROLLA radiator grille — Figure 5301
Toyota COROLLA EPC diagram 5301, radiator grille, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53101 | Radiator grille sub-assembly | 53101-12510 · 53101-12550 · 53101-12580 · 53101-12590 |
| 53131A | Right headlight lampshade | 53031-12160 · 53031-12161 |
| 53132A | Left headlight lampshade | 53032-12120 · 53032-12121 |
