Toyota COROLLA 后保险杠及附件 — Figure 5202

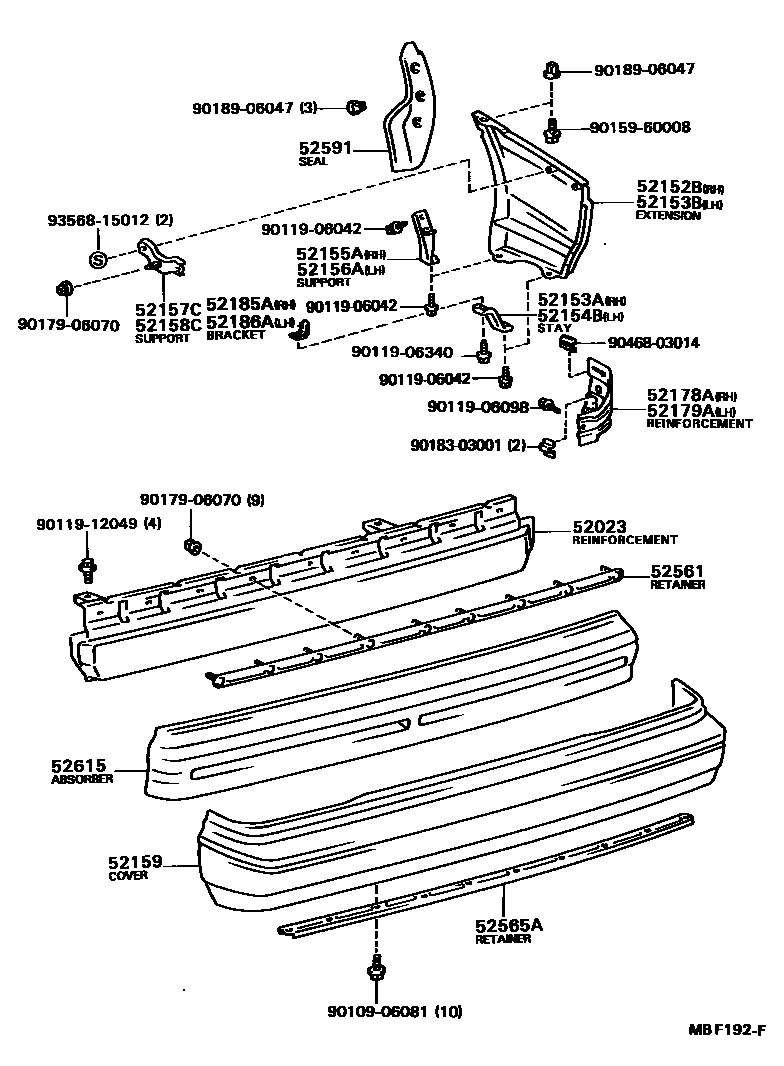

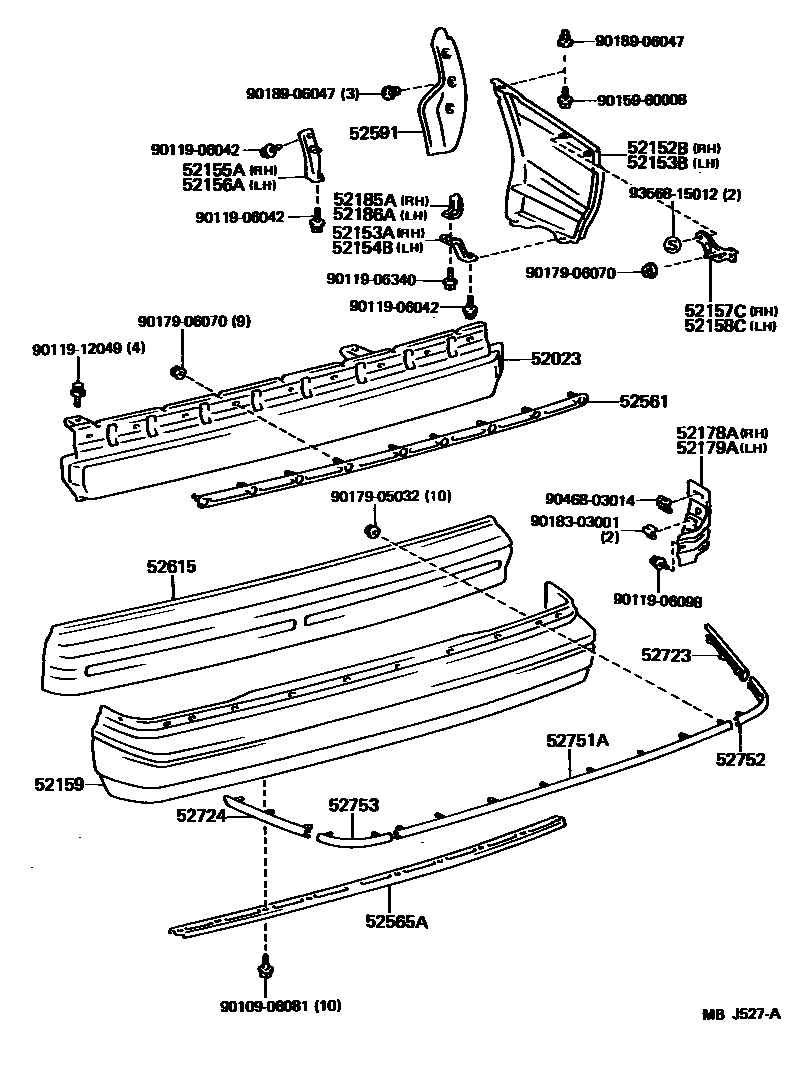

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-12070 · 52023-12071 · 52023-12080 · 52023-12081 |
| 52152B | Rear bumper right extension | 52152-12150 · 52152-12190 |
| 52153A | Rear bumper right side stay | 52154-12050 · 52154-12060 |
| 52153B | Rear bumper left extension | 52153-12140 · 52153-12190 |
| 52154B | Rear bumper left support | 52154-12050 · 52154-12060 |
| 52155A | Rear bumper right side bracket | 52155-12120 |
| 52156A | Rear bumper left bracket | 52156-12100 |
| 52157C | Rear bumper No. 2 right side bracket | 52157-12080 |
| 52158C | Rear bumper No. 2 left side bracket | 52157-12080 |
| 52159 | rear bumper cover | 52159-12170 · 52159-12180 · 52159-12460 · 52159-12480 · 52159-12901 · 52159-12903 |
| 52178A | Rear bumper right corner reinforcement | 52178-12020 |
| 52179A | Rear bumper left corner reinforcement | 52179-12030 |
| 52185A | Rear bumper right side bracket | 52185-12090 |
| 52186A | Rear bumper left bracket | 52185-12090 |
| 52561 | Rear bumper upper center fixing bracket | 52561-12050 |
| 52565A | Rear bumper lower fixing bracket | 52565-12030 |
| 52591 | Rear bumper right seal | 52591-12020 |
| 52615 | Rear bumper energy absorber | 52615-12060 · 52615-12070 |
| 52723 | Rear bumper right extension protection strip | 52723-12010 |
| 52724 | Rear bumper left extension protection strip | 52724-12010 |
| 52751A | Rear bumper center protective strip | 52751-12040 · 52751-12050 |
| 52752 | Rear bumper right side protective strip | 52752-12010 · 52752-12020 |
| 52753 | Rear bumper left protective strip | 52753-12010 · 52753-12020 |
