Toyota COROLLA 制动配管和卡箍 — Figure 4708

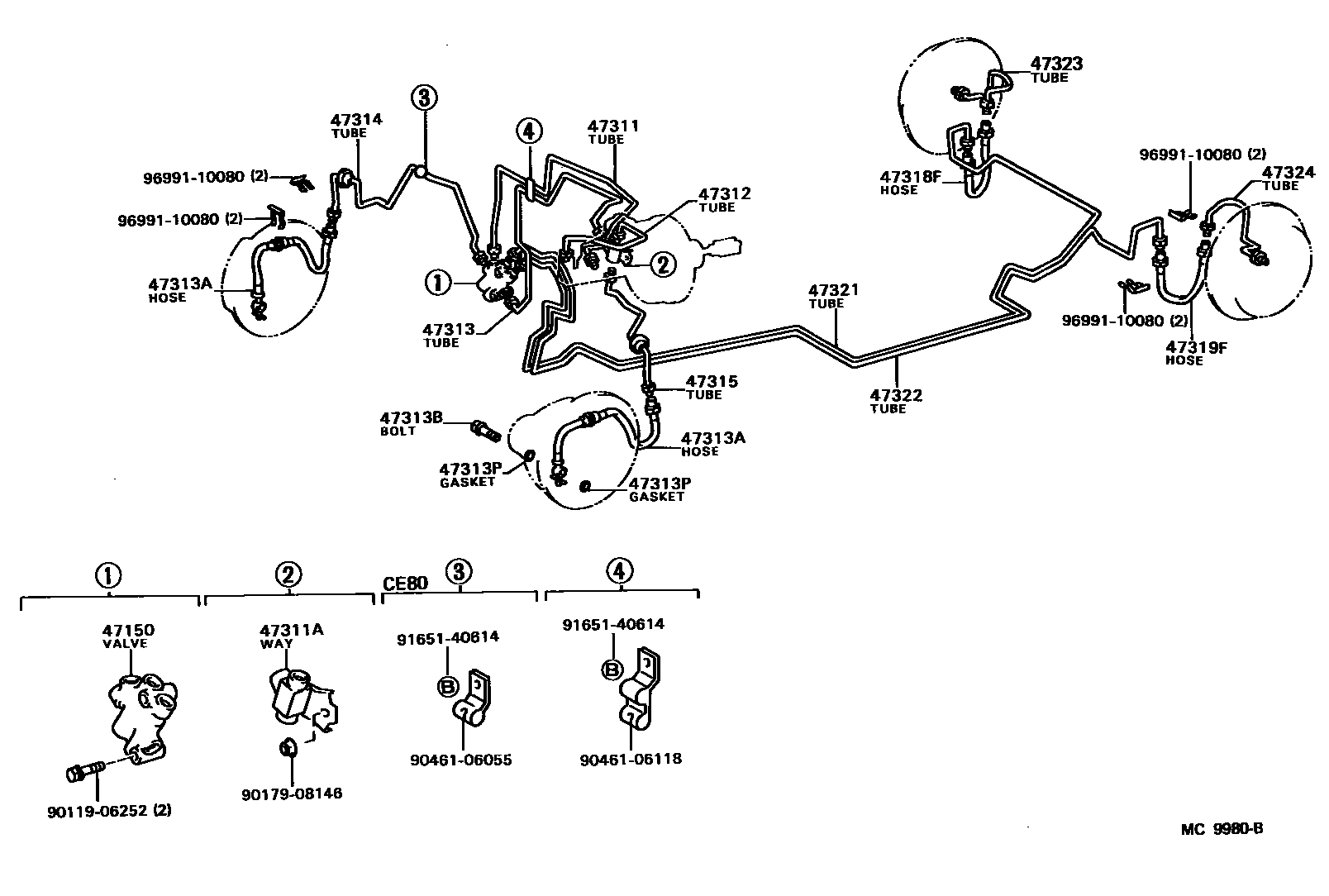

Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47150 | Proportional valve assembly | 47150-12050 · 47150-16050 |
| 47311 | No. 1 front brake pipe | 47311-12350 |
| 47311A | Pipe fitting (for front brake pipe) | 90413-10155 |
| 47312 | No. 2 front brake pipe | 47312-12210 |
| 47313 | No. 3 front brake pipe | 47313-12160 |
| 47313A | No. 1 front flexible hose | 90947-02454 · 90947-02455 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 |
| 47313P | Gasket (for front flex hose) | 90430-10074 |
| 47314 | No. 4 front brake pipe | 47314-12200 |
| 47315 | No. 5 front brake pipe | 47315-12340 · 47315-12380 |
| 47318F | Right rear flexible hose | 90947-02465 · 96950-33505 |
| 47319F | Left rear flexible hose | 90947-02465 · 96950-33505 |
| 47321 | No. 1 rear brake pipe | 47321-12020 |
| 47322 | No. 2 rear brake pipe | 47322-12130 |
| 47323 | No. 3 rear brake pipe | 47323-12140 · 47323-12200 |
| 47324 | No. 4 rear brake pipe | 47324-12100 · 47324-12160 |
