Toyota COROLLA Front Drive Shaft — Figure 4302

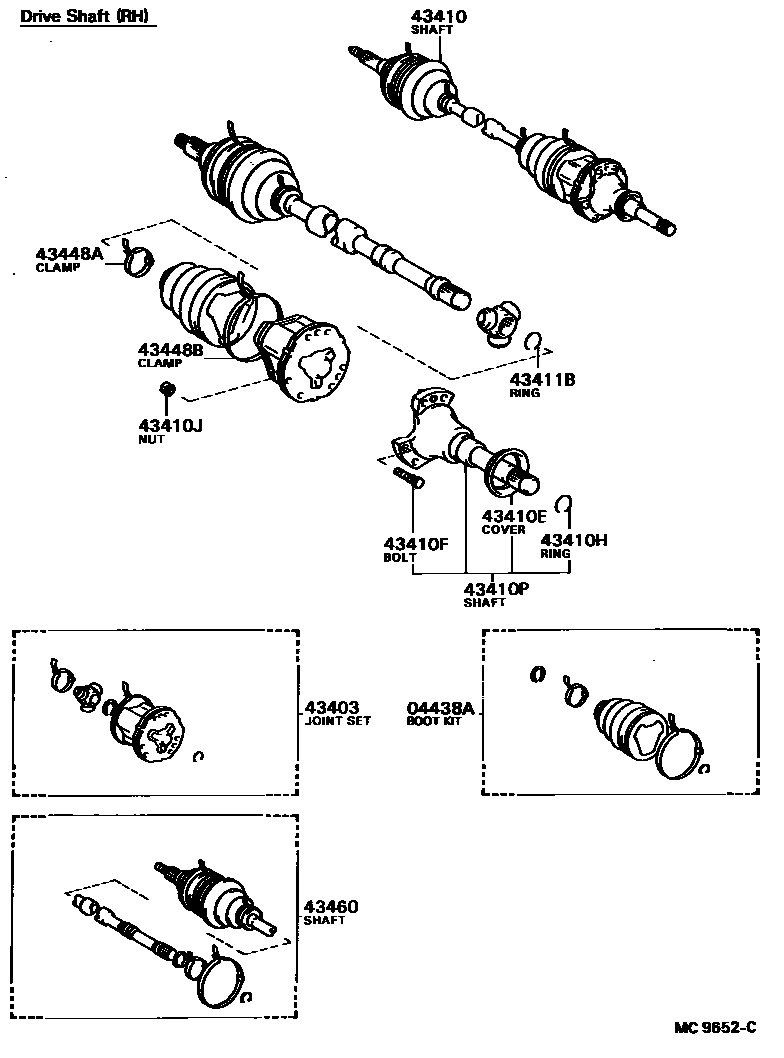

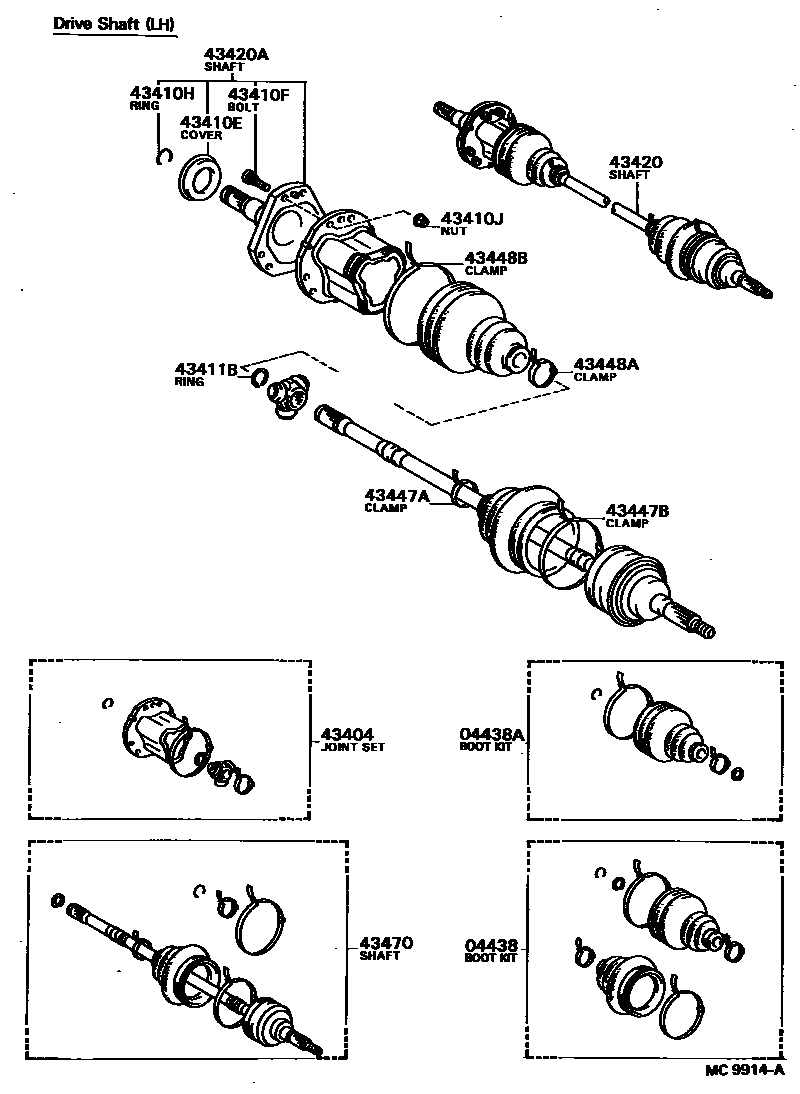

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438 | Front drive shaft dust boot assembly | 04438-12020 · 04438-12021 · 04438-12030 · 04438-17010 · 04438-17011 · 04438-17012 · 04438-32021 |
| 04438A | Front drive shaft inner universal joint dust boot assembly | 04438-12010 · 04438-12011 · 04438-32011 |
| 43403 | Right front axle inner universal joint assembly | 43403-19035 · 43403-39016 |
| 43404 | Left front axle inner universal joint assembly | 43403-19035 · 43403-39016 |
| 43410 | Right front driveshaft assembly | 43410-12020 · 43410-12021 · 43410-12050 · 43410-12070 · 43410-20020 |
| 43410E | Dust cover (for front drive shaft) | 41336-12010 · 41336-32010 · 41336-32020 |
| 43410F | Serrated threaded bolt (for front drive shaft) | 90114-08006 |
| 43410H | Hole snap ring (for front driveshaft) | 90521-26002 · 90521-27005 |
| 43410J | Nut (for front driveshaft) | 90179-08053 |
| 43410P | Right front drive shaft sub-assembly | 41304-12010 · 41304-20010 |
| 43411B | Inner shaft snap ring (for front axle inner shaft) | 90520-22005 · 90520-23035 |
| 43420 | Left front drive shaft assembly | 43420-12020 · 43420-12021 · 43420-12060 · 43420-12070 · 43420-20010 |
| 43420A | Left front drive shaft assembly | 41309-12010 · 41309-32010 |
| 43447A | Clamp No. 1 (used to fix the universal joint dust cover on the outside of the front axle) | 42345-14010 · 90949-01078 |
| 43447B | Clamp No. 2 (used to fix the universal joint dust cover on the outside of the front axle) | 90949-01076 · 90949-01080 |
| 43448A | Clamp No. 1 (used to fix the universal joint dust cover on the inside of the front axle) | 42345-14010 · 90949-01078 |
| 43448B | No. 2 clip (used to fix the universal joint dust cover on the inside of the front axle) | 42345-14020 · 90949-01079 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-19045 · 43460-19046 · 43460-19195 · 43460-19196 · 43460-29016 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-19045 · 43470-19046 · 43470-19095 · 43470-19096 · 43470-29016 |
