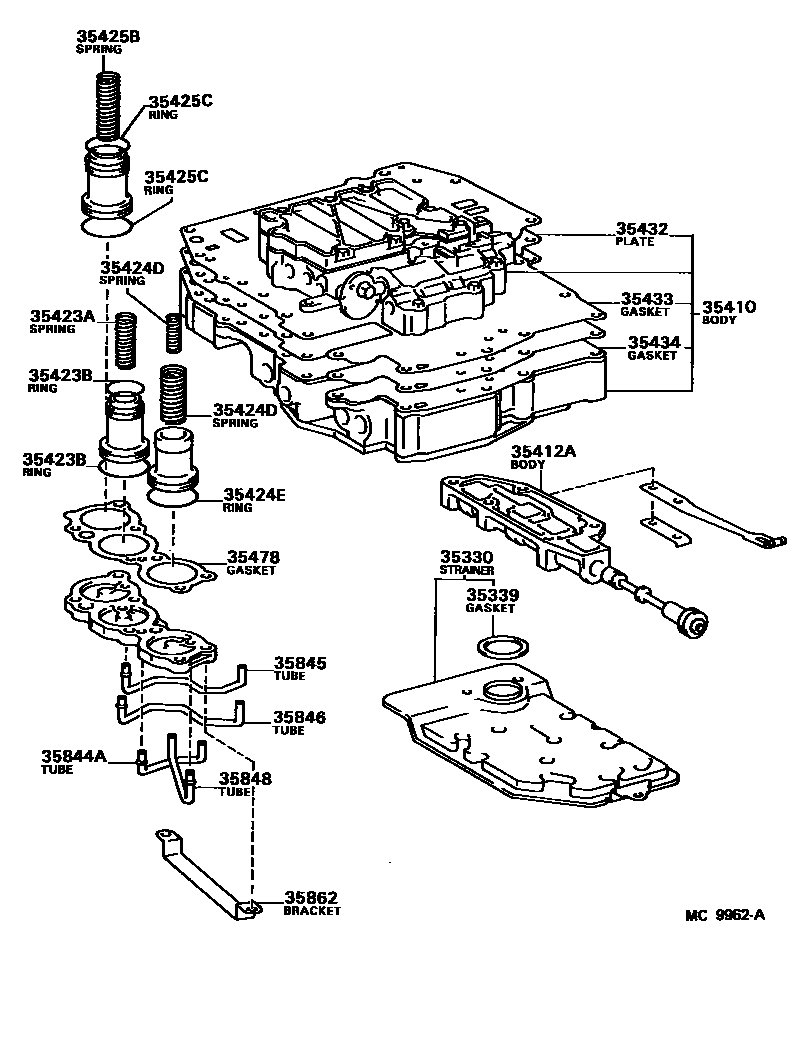

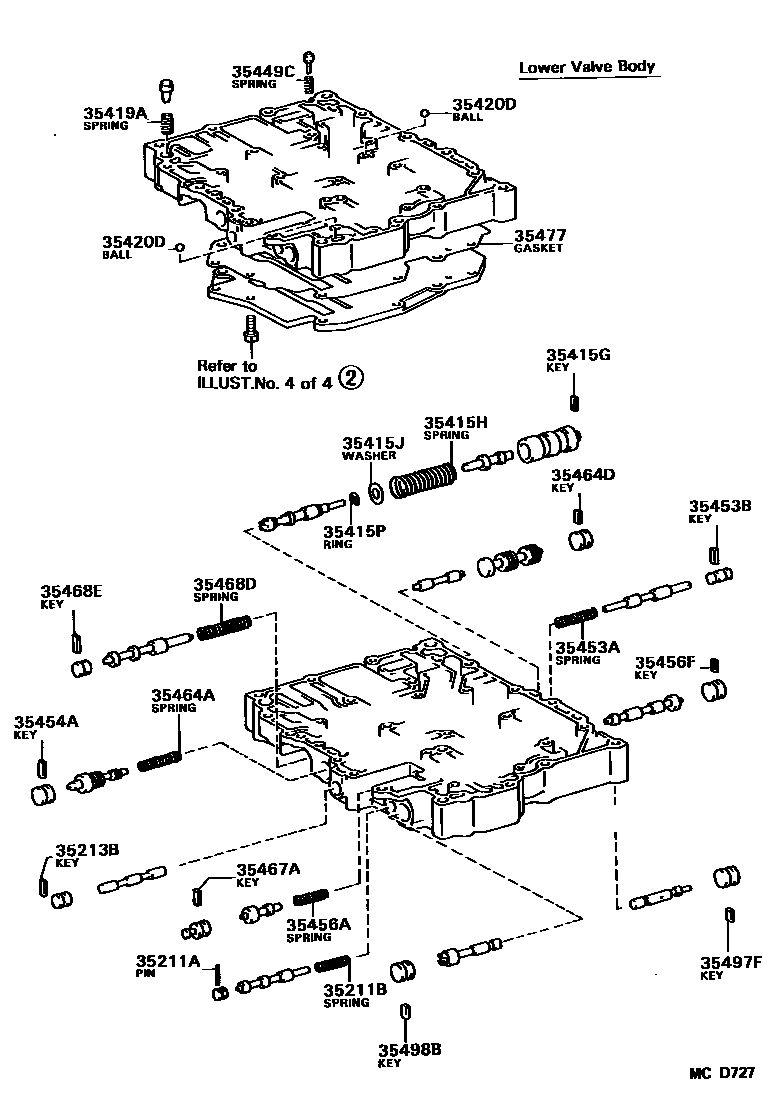

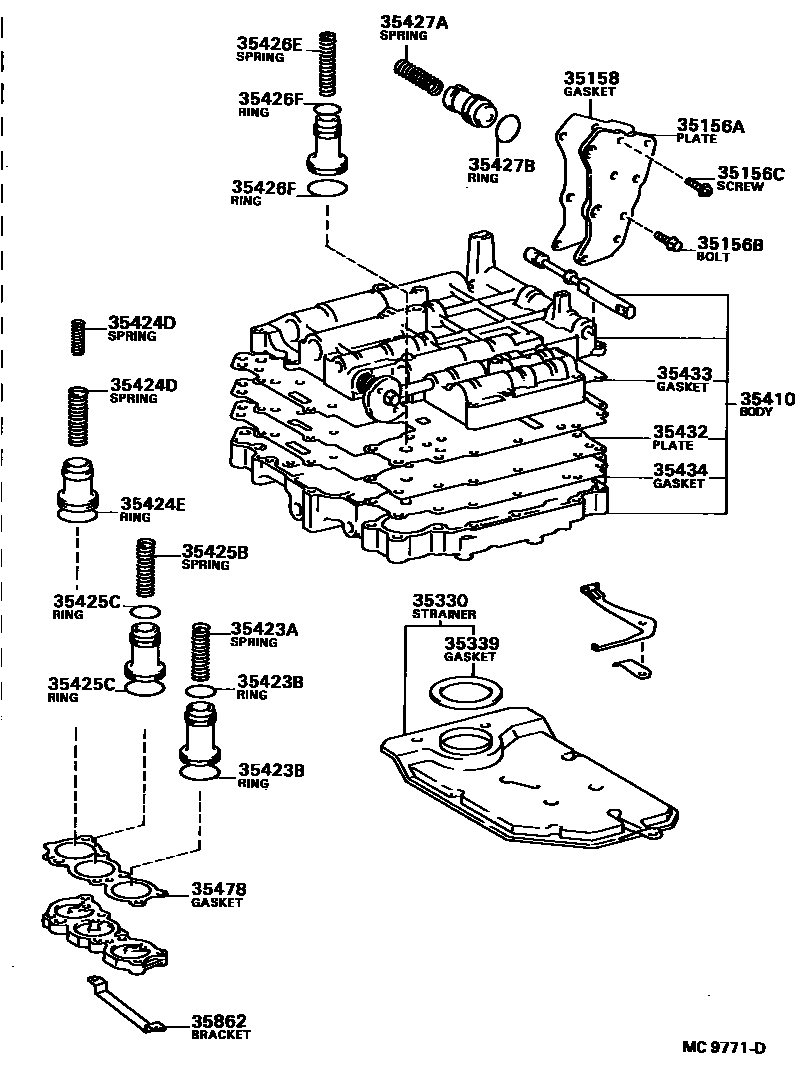

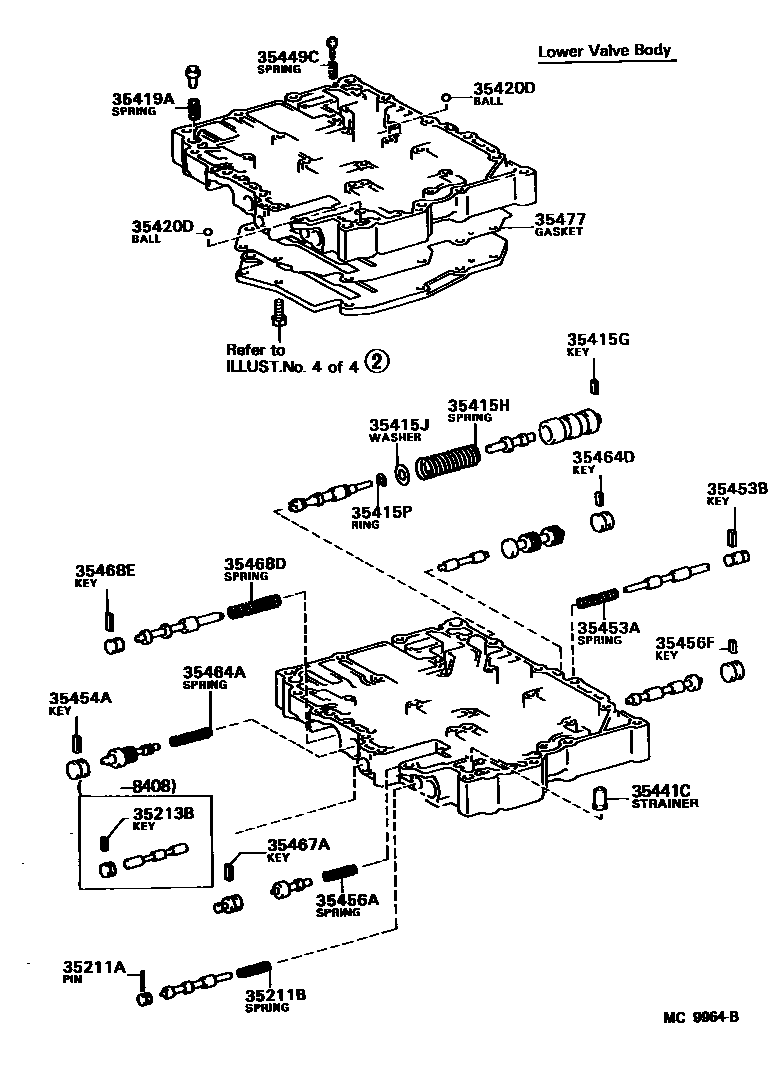

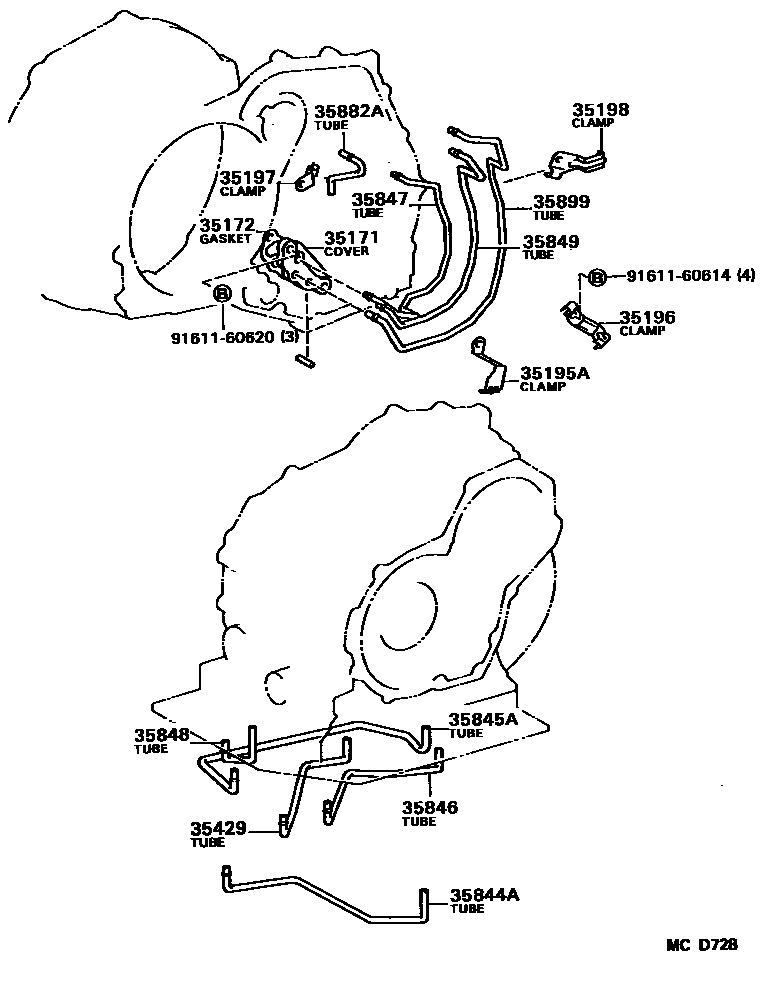

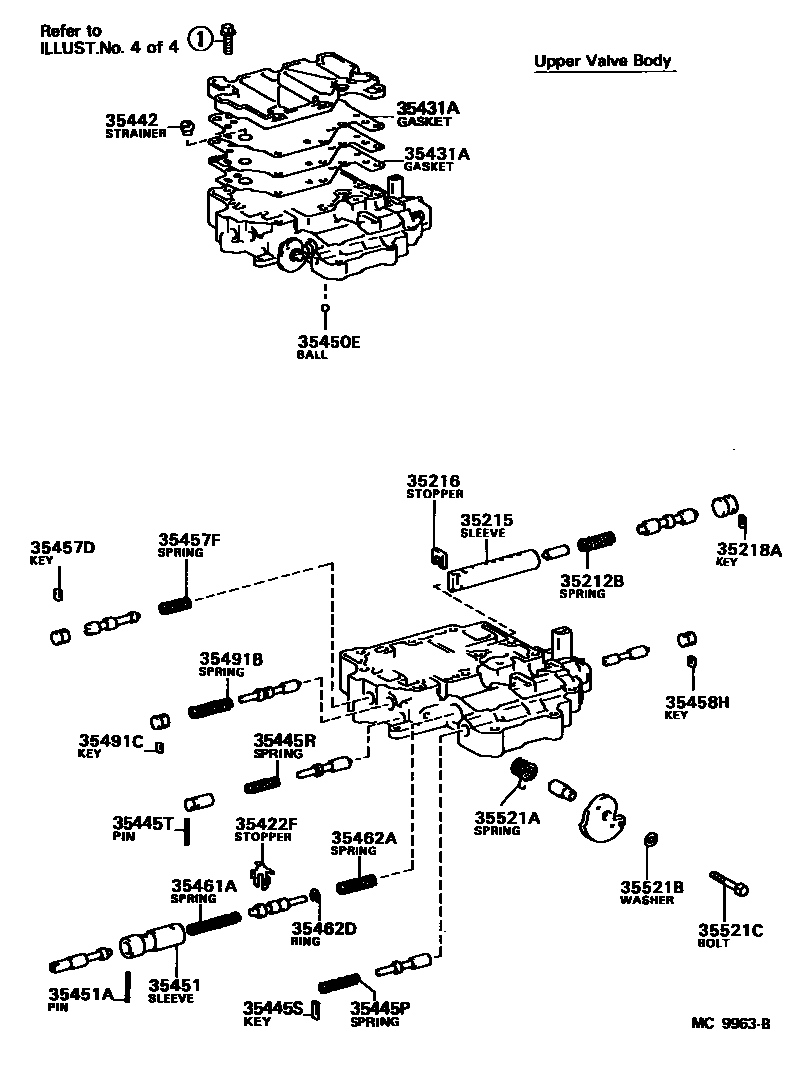

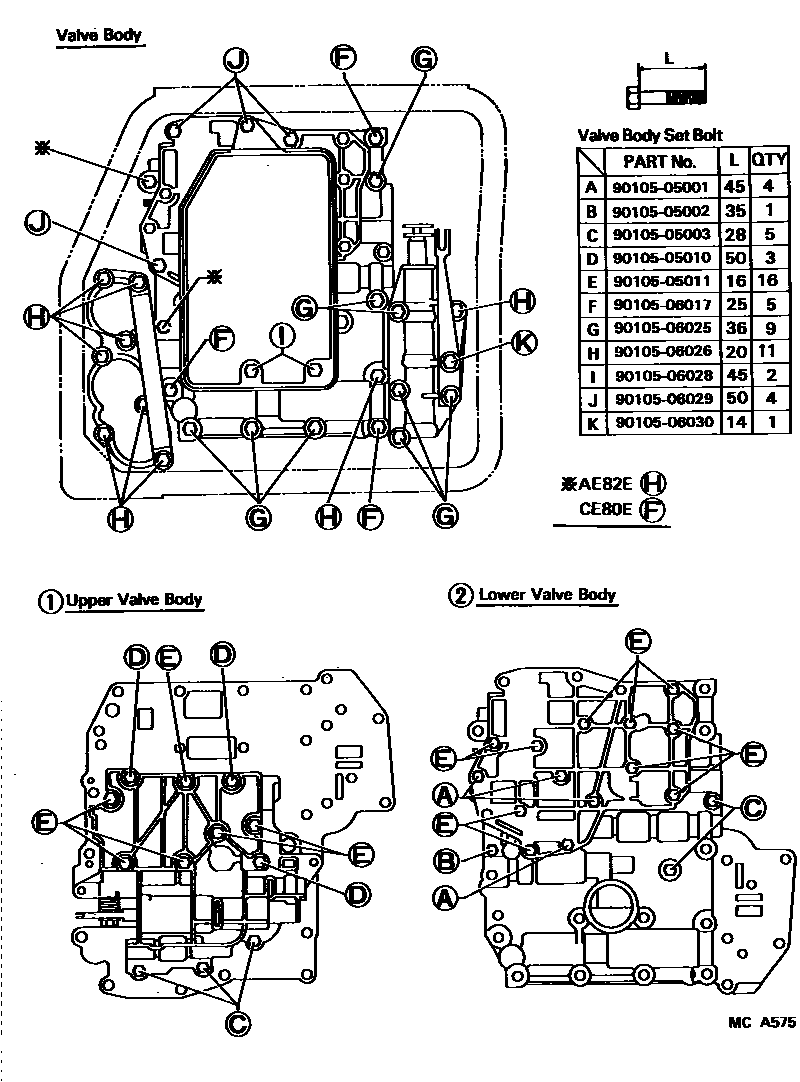

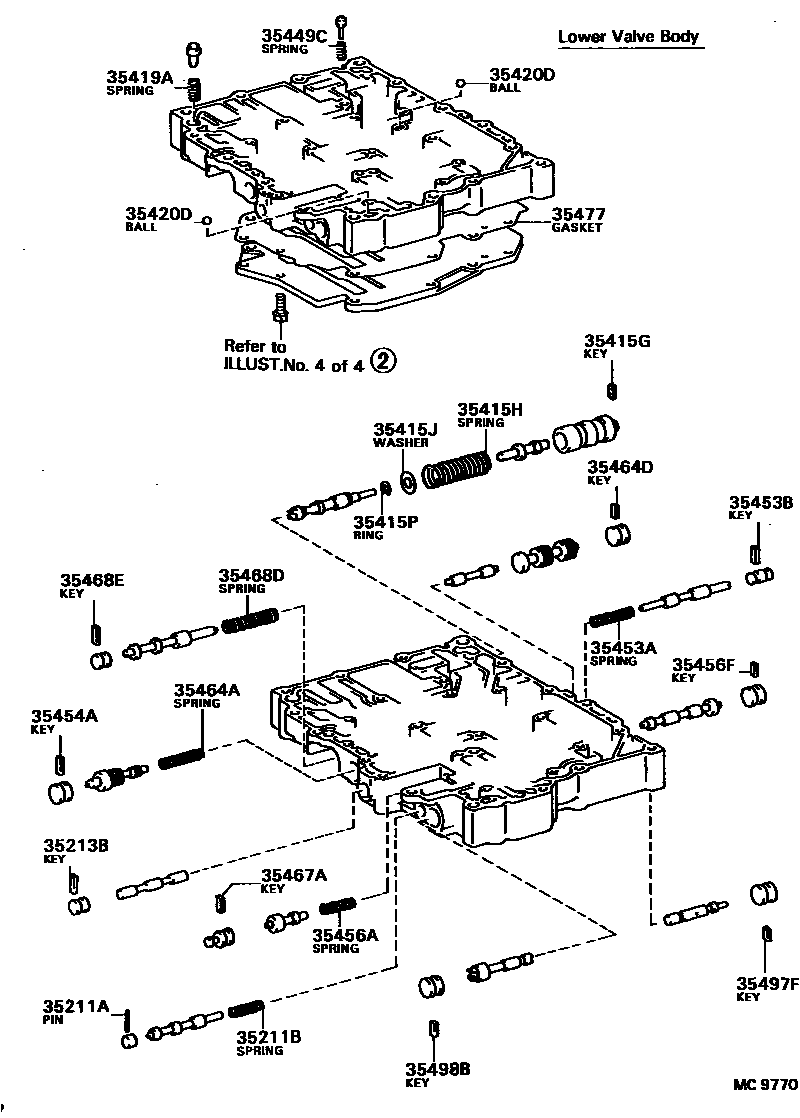

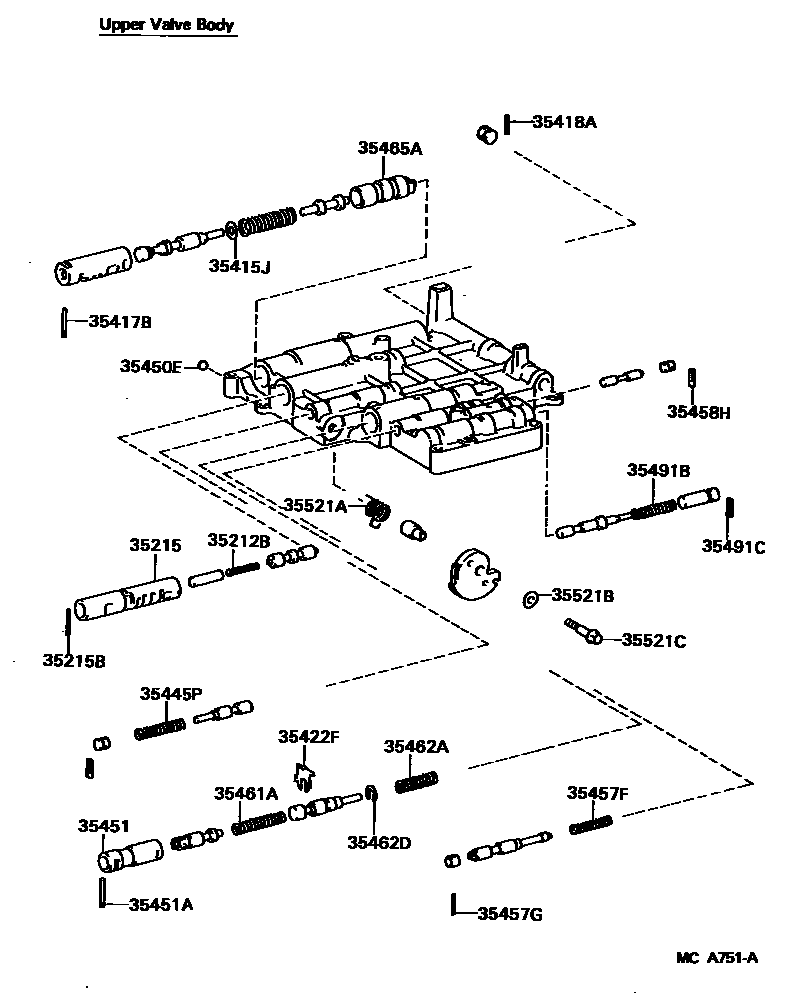

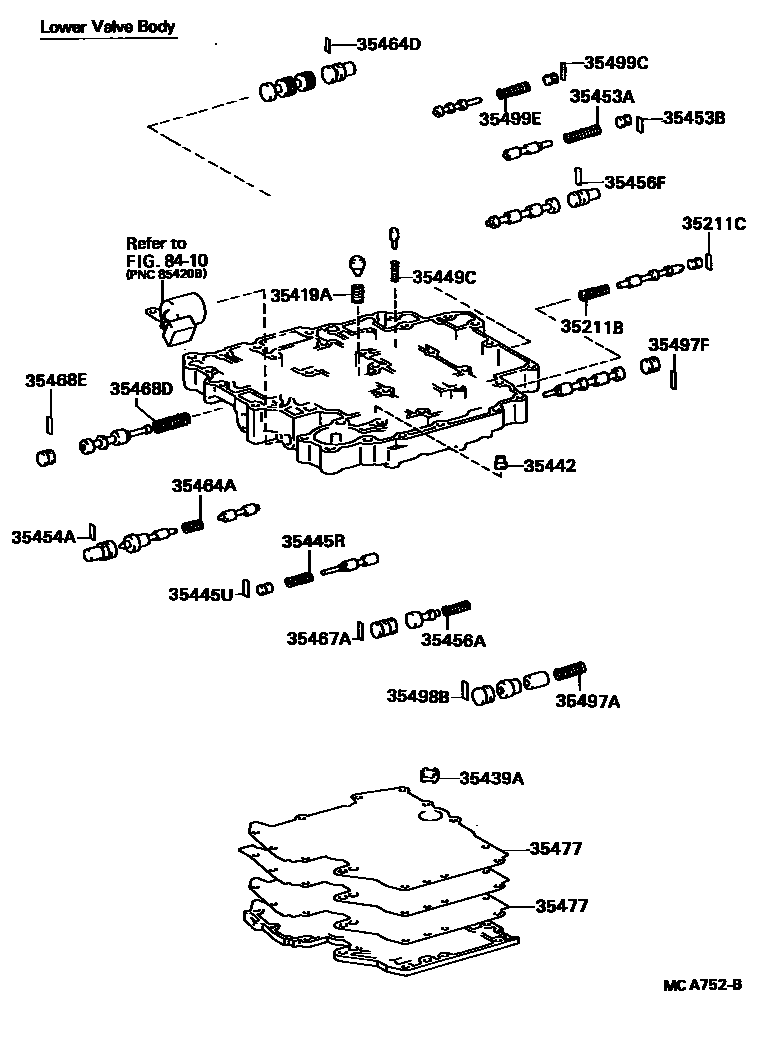

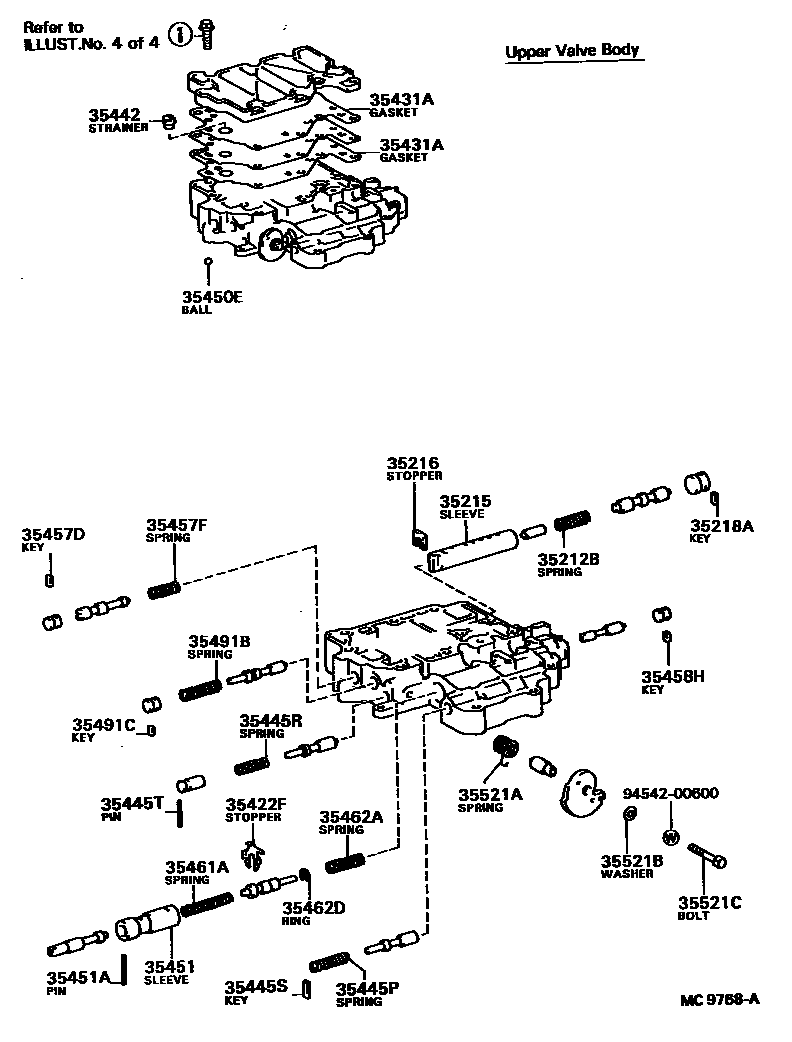

Toyota COROLLA 阀体和滤油网(ATM) — Figure 3512
Toyota COROLLA EPC diagram 3512, 阀体和滤油网(ATM), with 11 images and 101 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35156A | No. 2 gearbox block | 35156-12010 |
| 35156B | Bolt (for gearbox block No. 2) | 90105-06049 |
| 35156C | Bolt (for gearbox block No. 2) | 90149-60041 |
| 35158 | No. 2 gearbox shield gasket | 35158-12010 |
| 35171 | Transmission axle housing cover | 35171-12010 |
| 35172 | Transaxle housing cover gasket | 35172-12010 |
| 35195A | No. 1 transmission axle fuel supply pipe clamp | 35195-12010 |
| 35196 | No. 2 transmission axle fuel supply pipe clamp | 35196-12010 |
| 35197 | No. 3 transmission axle oil supply pipe clamp | 35197-12010 |
| 35198 | No. 4 transmission axle oil supply pipe clamp | 35198-20010 |
| 35211A | Direct pin (for locking signal valve) | 90250-02013 |
| 35211B | Compression spring (for locking signal valve) | 90501-07025 · 90501-07032 · 90501-08056 · 90501-08057 |
| 35211C | Straight key (for locking signal valve) | 90282-03002 |
| 35212B | Compression spring (for locking relay valve) | 90501-05010 · 90501-07023 |
| 35213B | Straight key (for locking control valve) | 90282-03002 |
| 35215 | Locking relay valve sleeve | 35215-12020 · 35215-32010 |
| 35215B | Direct pin (for locking relay valve sleeve) | 90250-03038 |
| 35216 | Valve sleeve stop | 35216-32010 |
| 35218A | Straight key (for locking the relay valve plunger) | 90282-03003 |
| 35330 | Valve body oil filter assembly | 35330-12010 · 35330-20010 · 35330-32010 |
| 35339 | Oil filter gasket | 35339-12010 · 35339-32010 |
| 35410 | Transmission valve body assembly | 35410-12080 · 35410-12081 · 35410-12100 · 35410-12101 · 35410-12170 · 35410-20060 · 35410-20080 |
| 35412A | Manual valve body | 35412-32010 |
| 35415G | Straight key (for main regulator valve) | 90282-03001 |
| 35415H | Compression spring (for main regulator valve) | 90501-16065 |
| 35415J | Gasket (for main regulator valve) | 90201-06013 · 90201-08021 · 94614-10600 |
| 35415P | E-ring (for main regulator valve) | 90523-06004 |
| 35417B | Direct sales (for main regulator valve sleeve) | 90250-03038 |
| 35418A | Direct sales (for manual valves) | 90250-02007 |
| 35419A | Compression spring (for one-way valve) | 90501-10056 · 90501-10079 |
| 35420D | Ball (for lower valve body) | 35495-22010 |
| 35422F | Valve damping stop | 35422-22010 · 35422-32010 |
| 35423A | Compression spring (for B-2 accumulator piston) | 90501-25011 · 90501-26014 · 90501-27006 |
| 35423B | O-ring (for B-2 accumulator piston) | 90301-22185 · 90301-29187 |
| 35424D | Compression spring (for C-1 accumulator piston) | 90501-22005 · 90501-23044 · 90501-23045 · 90501-23058 · 90501-23065 |
| 35424E | O-ring (for C-1 accumulator piston) | 90301-29187 |
| 35425B | Compression spring (for C-2 accumulator piston) | 90501-23042 · 90501-23063 · 90501-24004 · 90501-26033 |
| 35425C | O-ring (for C-2 accumulator piston) | 90301-23194 · 90301-26190 · 90301-29187 |
| 35426E | Compression spring (for C-3 accumulator piston) | 90501-23050 |
| 35426F | O-ring (for C-3 accumulator piston) | 90301-20002 · 90301-29187 |
| 35427A | Compression spring (for B-4 accumulator piston) | 90501-26040 |
| 35427B | O-ring (for B-4 accumulator piston) | 90301-22185 |
| 35429 | pipeline pressure oil pipe | 35429-12020 · 35429-12030 |
| 35431A | Upper body cover gasket | 35431-32010 |
| 35432 | No. 1 valve body plate | 35432-12091 · 35432-20031 · 35432-20040 |
| 35433 | No. 1 valve body gasket | 35433-12030 · 35433-20020 · 35433-20030 |
| 35434 | No. 2 valve body gasket | 35434-20010 · 35434-32020 |
| 35439A | Pipe pressure oil filter | 35439-20010 |
| 35441C | Solenoid valve oil filter | 35441-12010 |
| 35442 | Throttle regulator oil filter | 35442-32010 |
| 35445P | Compression spring (for second gear coast regulator valve) | 90501-10081 · 90501-11013 |
| 35445R | Compression spring (for low range coast regulator valve) | 90501-09035 · 90501-09046 |
| 35445S | Straight key (for second gear slide regulator valve) | 90282-03003 |
| 35445T | Direct sales (for low speed coasting regulator valve) | 90250-03035 · 90250-03046 |
| 35445U | Straight key (for low speed coast regulator valve) | 90282-03002 |
| 35449C | Compression spring (for pressure reducing valve) | 90501-09032 |
| 35450E | Ball (for upper valve body) | 35495-22010 · 90360-06023 |
| 35451 | Throttle valve sleeve | 35451-32010 |
| 35451A | Direct sales (with throttle sleeve) | 90250-03036 · 90250-03045 |
| 35453A | Compression spring (for locking regulator valve) | 90501-09036 · 90501-09050 · 90501-09052 · 90501-10080 |
| 35453B | Straight key (for locking the pressure regulator valve) | 90282-03002 |
| 35454A | Straight key (for low gear coast shift valve) | 90282-03001 · 90282-03002 |
| 35456A | Compression spring (for 2-3 gear shift valve) | 90501-06027 |
| 35456F | Straight key (for 2-3 gear shift valve) | 90282-03002 · 90282-03004 |
| 35457D | Straight key (for throttle regulator valve) | 90282-03001 |
| 35457F | Compression spring (for throttle regulator valve) | 90501-09037 · 90501-09040 |
| 35457G | Direct sales (for throttle regulator valve) | 90250-02007 |
| 35458H | Straight key (for reverse valve) | 90282-03001 · 90282-03003 |
| 35461A | Compression spring (for downshift plug) | 90501-10054 · 90501-10084 |
| 35462A | Compression spring (for throttle valve) | 90501-07022 · 90501-07027 |
| 35462D | E-ring (for throttle valve) | 90523-06023 |
| 35464A | Compression spring (for 1-2 gear shift valve) | 90501-06025 |
| 35464D | Straight key (for 1-2 gear shift valve) | 90282-03001 · 90282-03002 |
| 35465A | Main regulator valve plunger sleeve | 35465-12010 |
| 35467A | Straight key (for intermediate shift valve) | 90282-03001 · 90282-03002 |
| 35468D | Compression spring (for secondary regulator valve) | 90501-14059 · 90501-14072 |
| 35468E | Straight key (for secondary regulator valve) | 90282-03001 · 90282-03002 |
| 35477 | Valve body cover gasket | 35477-12020 · 35477-20010 · 35477-32020 |
| 35478 | Accumulator cover gasket | 35478-32010 |
| 35491B | Compression spring (for No. 1 accumulator control valve) | 90501-08055 · 90501-09045 · 90501-10055 |
| 35491C | Straight key (for No. 1 accumulator control valve) | 90282-03002 · 90282-03003 |
| 35497A | Compression spring (for 3-4 gear shift valve) | 90501-07031 |
| 35497F | Straight key (for 3-4 gear shift valve) | 90282-03001 · 90282-03004 |
| 35498B | Straight key (for 3-4 speed coasting shift valve) | 90282-03001 · 90282-03004 |
| 35499C | Straight key (for overdrive sequence valve) | 90282-03002 |
| 35499E | Compression spring (for overdrive sequence valve) | 90501-08039 |
| 35521A | Spring (for throttle cam return) | 90508-11003 |
| 35521B | Gasket (for throttle cam assembly) | 90201-06472 |
| 35521C | Bolt (for throttle cam assembly) | 90105-06018 |
| 35554 | Manual valve connecting rod | 35554-12010 · 35554-12011 |
| 35554A | E-ring (for manual valve connecting rod) | 96160-00400 |
| 35844A | No. 1 accumulator back pressure pipe | 35844-12010 · 35844-12020 · 35844-12030 · 35844-32020 · 35844-32021 |
| 35845 | Rear clutch accumulator tube | 35845-12020 · 35845-32010 · 35845-32011 |
| 35845A | Direct clutch accumulator tube | 35845-12010 · 35845-12030 |
| 35846 | brake accumulator pipe | 35846-12020 · 35846-12030 · 35846-12040 · 35846-32020 · 35846-32021 |
| 35847 | Transmission lubricant supply pipe | 35847-12010 |
| 35848 | Forward clutch accumulator tube | 35848-12010 · 35848-12020 · 35848-12030 · 35848-32010 · 35848-32011 |
| 35849 | Governor oil supply pipe | 35849-20010 |
| 35862 | Accumulator fuel supply pipe bracket | 35862-12010 · 35862-12011 · 35862-12020 · 35862-32010 · 35862-32011 |
| 35882A | Differential gear lubricant oil supply pipe | 35882-12010 |
| 35899 | Governor pressure oil pipe | 35899-12010 |
