Toyota COROLLA 废气再循环系统 — Figure 2501

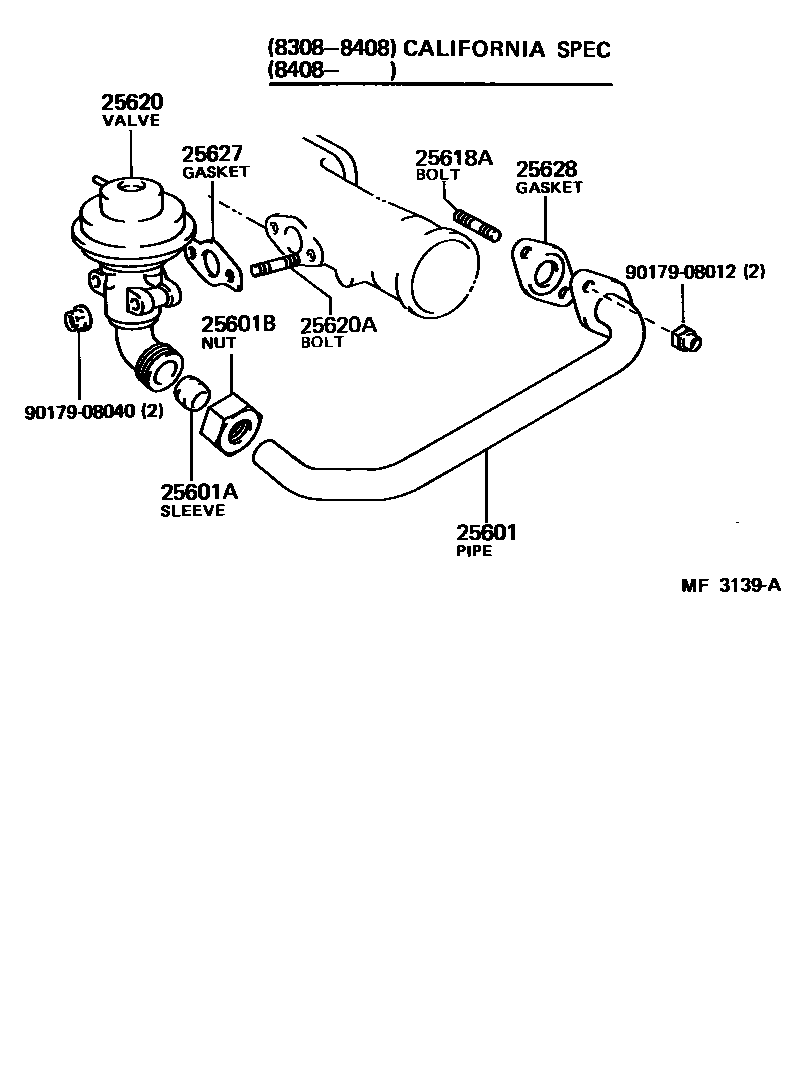

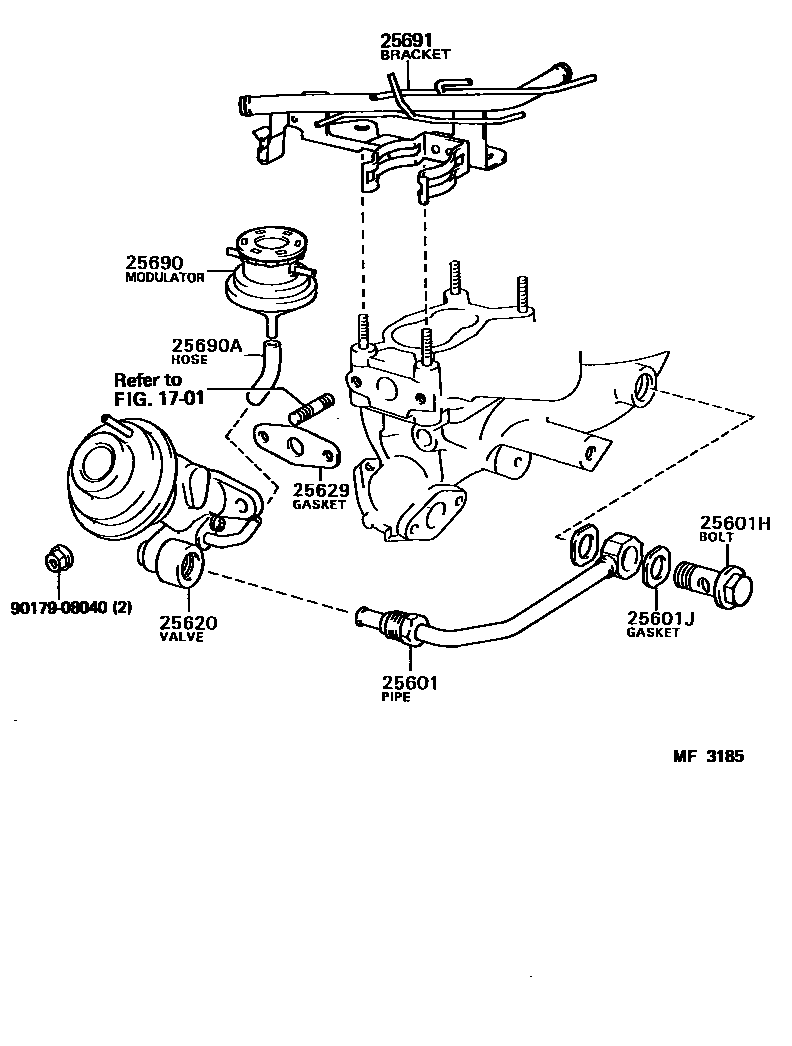

Toyota COROLLA EPC diagram 2501, 废气再循环系统, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25601-15030 · 25601-64010 · 25601-64021 |
| 25601A | No. 1 EGR tube ball sleeve | 90410-22001 |
| 25601B | No. 1 EGR pipe connecting nut | 90402-30002 |
| 25601H | Joint bolt (for No. 1 EGR tube) | 90401-20003 |
| 25601J | Gasket (for No. 1 EGR tube) | 90430-20005 |
| 25618A | Stud bolts (for EGR air inlet) | 92122-60818 · 92122-60822 |
| 25620 | EGR valve assembly | 25620-15030 · 25620-15250 · 25620-15260 · 25620-64010 · 25620-64020 · 25620-64030 |
| 25620A | Stud bolts (for EGR valve) | 90116-08198 · 92122-60845 |
| 25627 | EGR valve gasket | 25627-64010 |
| 25628 | EGR air intake gasket | 25628-64010 · 25628-64020 |
| 25629 | EGR valve adapter gasket | 25629-15011 |
| 25690 | EGR vacuum regulator assembly | 25870-15110 · 25870-15130 |
| 25690A | Hoses (for EGR vacuum regulator) | 90445-11041 |
| 25691 | EGR vacuum regulator bracket | 25691-16010 · 25691-16111 |
