Toyota COROLLA 起动机 — Figure 1904

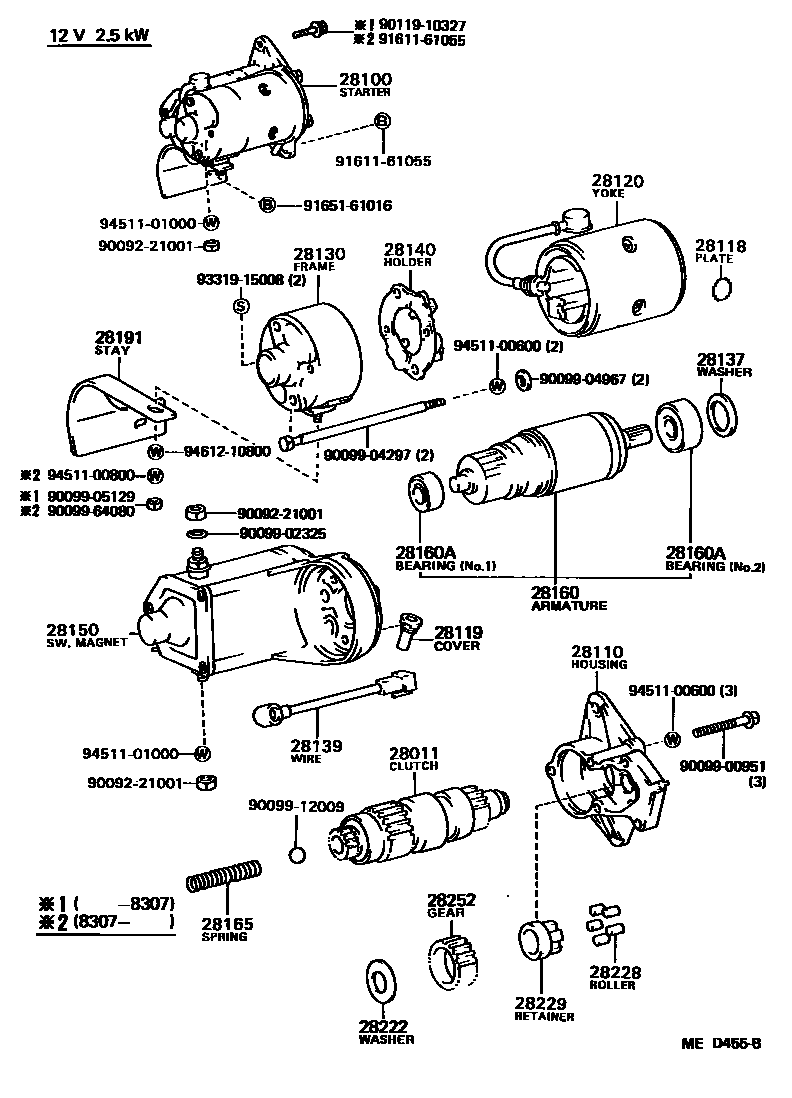

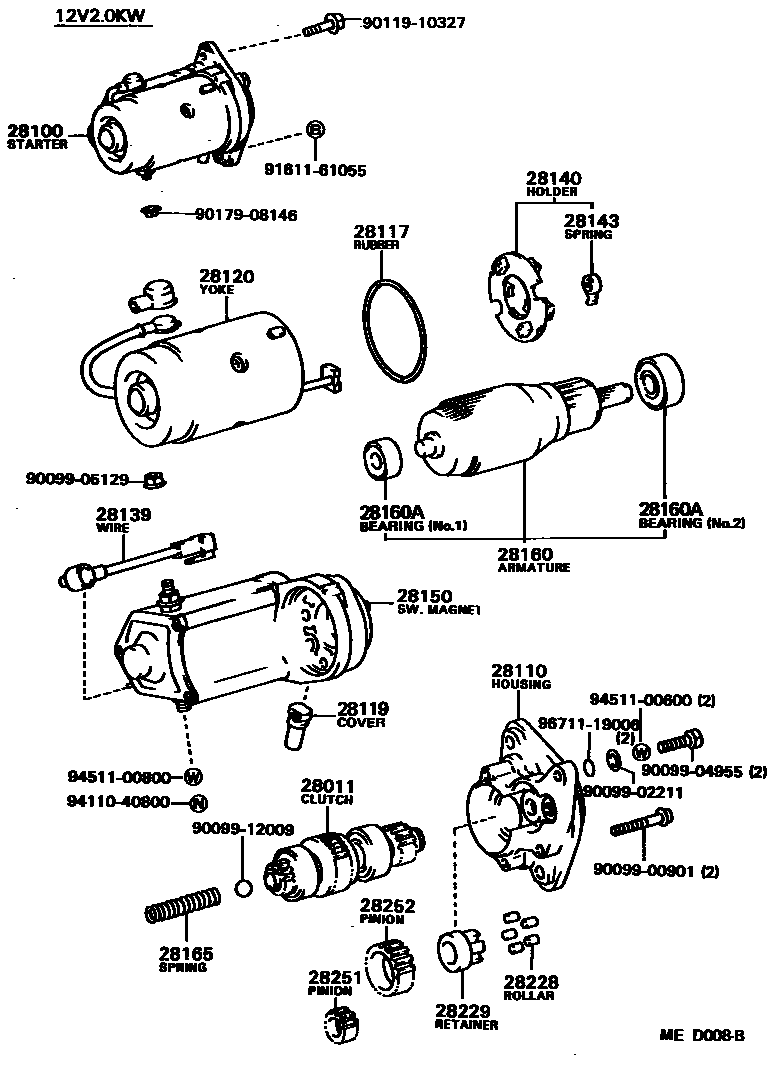

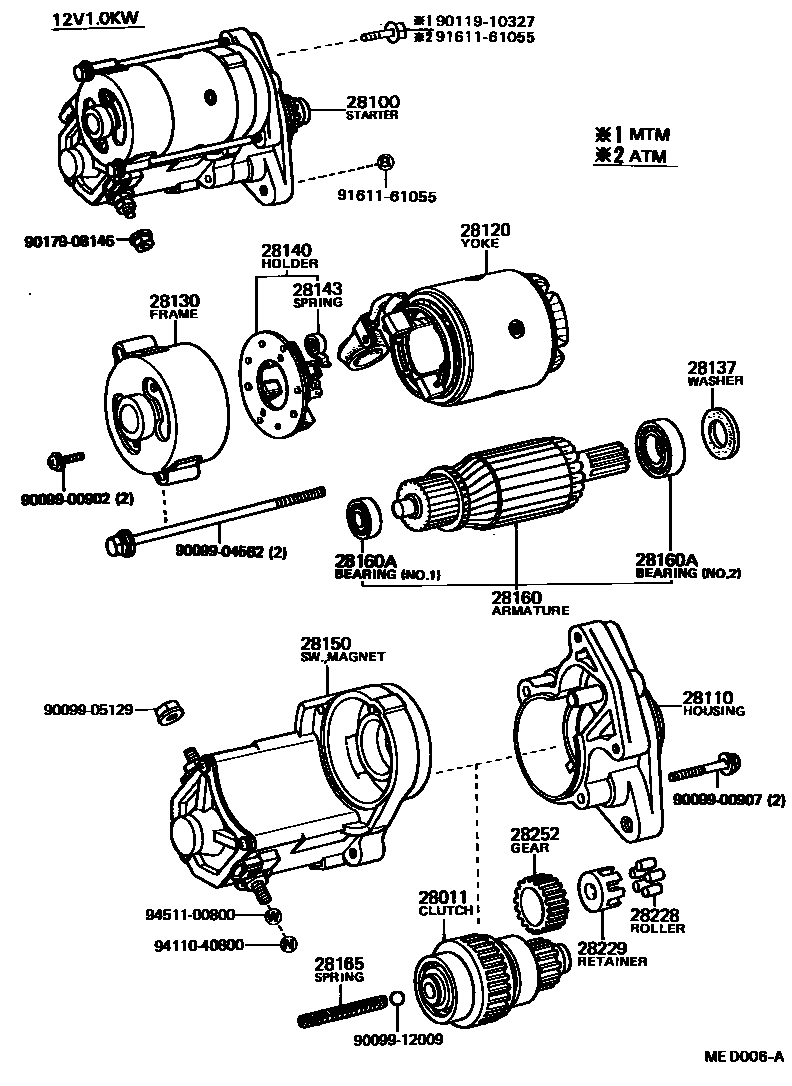

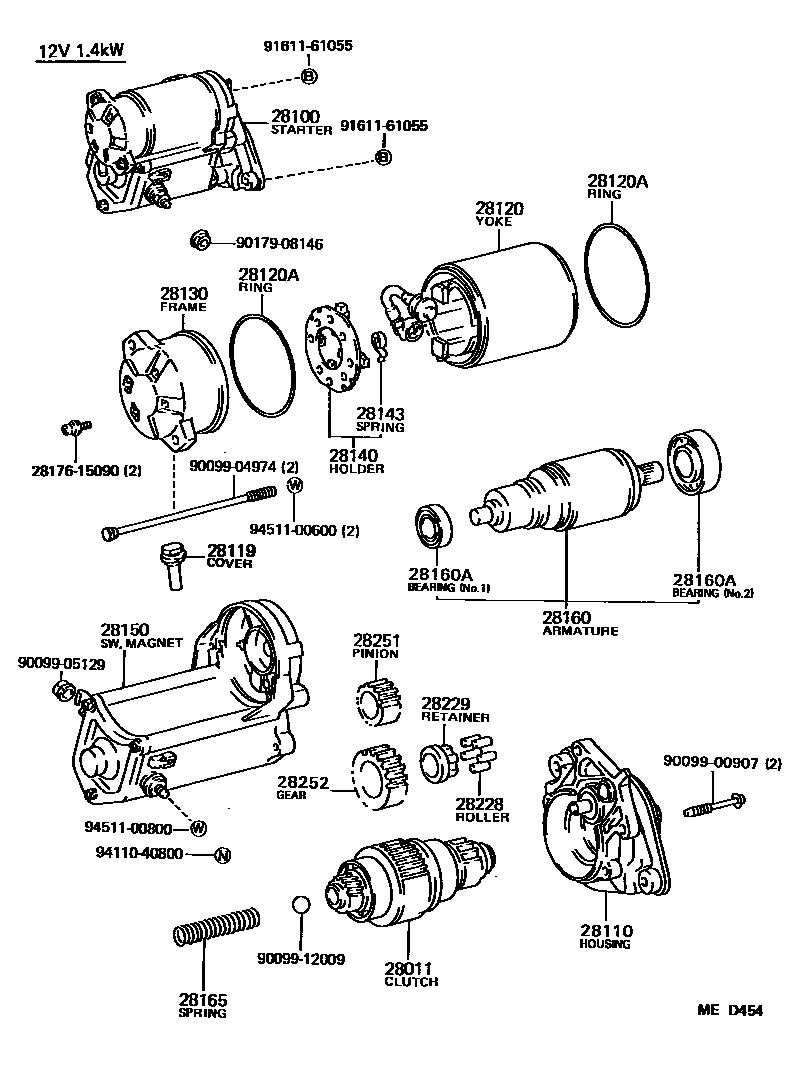

Toyota COROLLA EPC diagram 1904, 起动机, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-26042 · 28011-64020 · 28011-64090 |
| 28100 | Starter assembly | 28100-15070 · 28100-15120 · 28100-64050 · 28100-64090 |
| 28110 | Starter drive end housing assembly | 28110-15070 · 28110-15120 · 28115-64020 · 28115-64030 |
| 28117 | Rubber sheet (for starter yoke) | 90099-14058 |
| 28118 | Plate (for starter yoke) | 28118-77090 |
| 28119 | Starter end frame cover | 28119-54070 · 28199-15090 |
| 28120 | Starter yoke assembly | 28120-15090 · 28120-26071 · 28120-47040 · 28120-64020 |
| 28120A | O-ring (for starter yoke) | 90099-14064 |
| 28130 | Starter commutator end frame assembly | 28130-15040 · 28130-15090 · 28130-64080 |
| 28137 | Starter felt pad gasket | 90099-02205 · 90099-02323 |
| 28139 | Lead No. 1 (for starter) | 28139-64050 · 28139-64060 |
| 28140 | Starter brush holder assembly | 28140-15090 · 28140-26070 · 28140-54070 · 28140-77090 |
| 28143 | starter brush spring | 90099-17112 · 90099-17115 |
| 28150 | Starter electromagnetic switch assembly | 28150-15070 · 28150-15090 · 28150-64020 · 28150-64030 |
| 28160 | Starter armature assembly | 28160-15090 · 28160-26070 · 28160-47040 · 28160-54070 |
| 28160A | starter armature bearing | 28253-45020 · 28253-54070 · 90099-10107 · 90099-10113 · 90099-10119 · 90099-10131 · 90099-10143 · 90099-10144 |
| 28165 | Starter solenoid switch return spring | 28165-26040 · 28165-77090 |
| 28191 | starter bracket | 28182-64080 |
| 28222 | Starter idler clutch washer | 28222-77090 |
| 28228 | Starter idler clutch roller | 28228-26040 · 28228-56080 |
| 28229 | Starter idler gear fixing | 28229-26040 · 28229-56080 |
| 28251 | Starter drive pinion | 28251-15090 · 28251-54070 |
| 28252 | starter idler gear | 28254-45020 · 28254-54070 · 28254-77090 |
