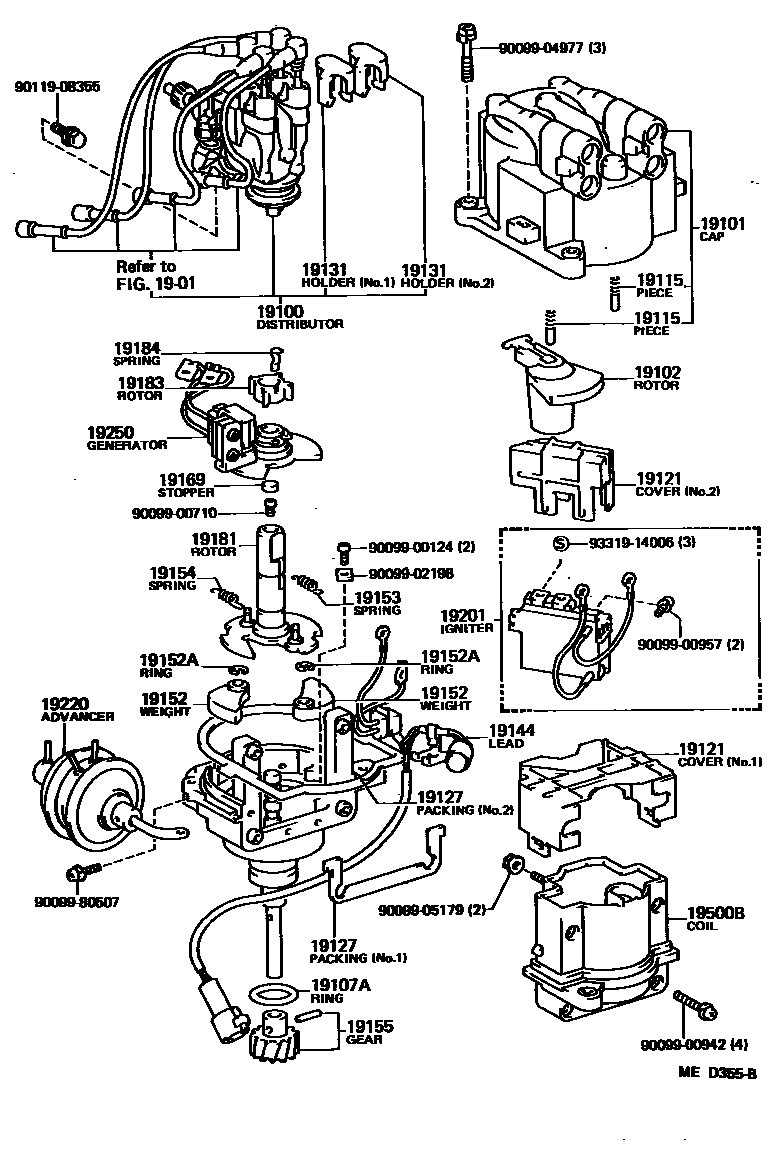

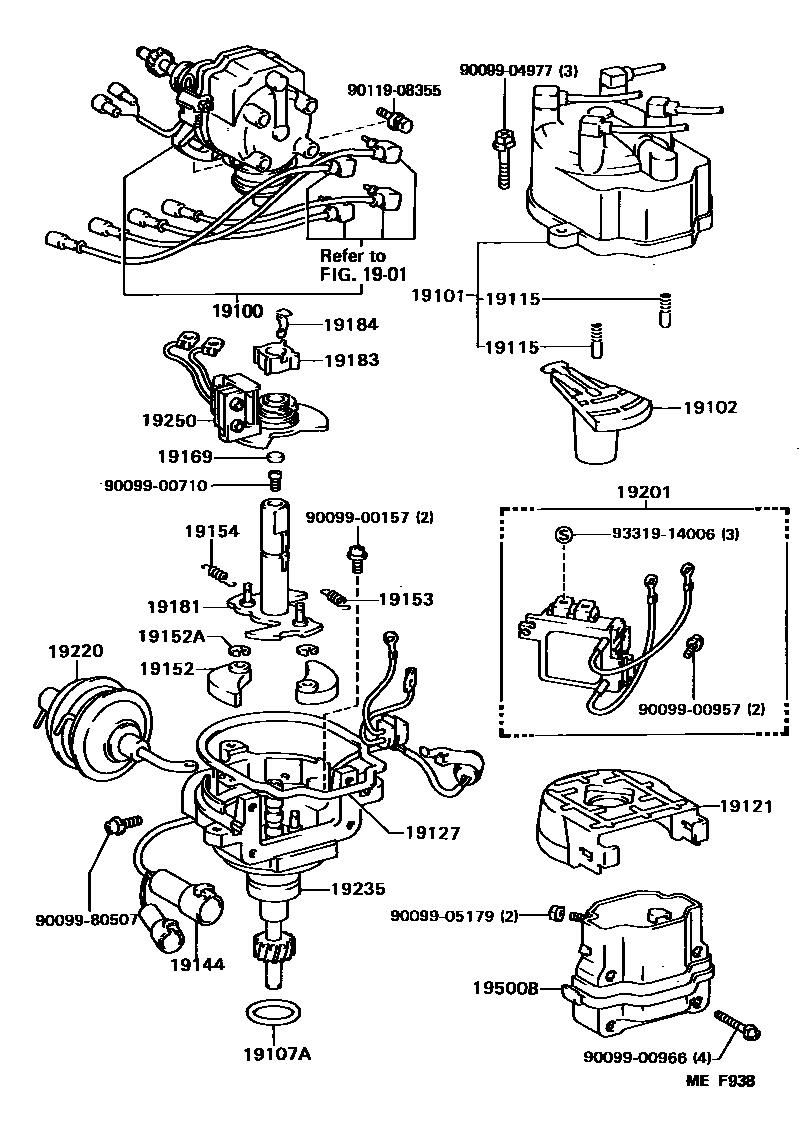

Toyota COROLLA 分电器 — Figure 1902
Toyota COROLLA EPC diagram 1902, 分电器, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100 | Distributor assembly | 19030-16040 · 19030-16060 · 19030-16081 · 19030-16082 · 19030-16090 |
| 19101 | Distributor cover sub-assembly | 19101-15090 · 19101-16070 |
| 19102 | Distributor flame head sub-assembly | 19102-11050 · 19102-16020 · 19102-63010 · 19102-73020 |
| 19107A | Distributor housing O-ring | 96710-04030 · 96711-35030 |
| 19115 | Distributor cover center piece | 19115-63010 · 19115-71010 |
| 19121 | dust cover | 19121-11010 · 19121-11080 · 19121-15090 · 19121-63040 |
| 19127 | Dust seal | 19127-11010 · 19127-15090 · 19127-63020 |
| 19131 | Wire fasteners | 19131-15010 · 19131-15020 |
| 19144 | Distributor breaker lead | 19144-16011 · 19144-16080 |
| 19152 | Speed regulator weight | 19152-15160 |
| 19152A | Snap ring (for governor weight) | 90099-07122 |
| 19153 | A governor spring | 19153-16080 · 19153-16120 · 19153-16189 · 19153-16190 · 19153-16200 |
| 19154 | B governor spring | 19154-16080 · 19154-16120 · 19154-16189 · 19154-16190 · 19154-16200 |
| 19155 | Distributor spiral gear | 19195-15021 |
| 19169 | Cam grease stop | 19169-32010 · 19169-63011 |
| 19181 | Distributor signal distributor | 19181-16080 · 19181-16120 · 19181-16180 · 19181-16209 · 19181-16210 |
| 19183 | Signal splitter | 19183-15010 · 19183-63010 |
| 19184 | Distribution head fixed spring | 19184-63010 |
| 19201 | igniter | 89620-10090 · 89620-16070 · 89620-16080 |
| 19220 | Distributor vacuum advance device assembly | 19220-16080 · 19220-16120 · 19220-16189 · 19220-16190 · 19220-16210 |
| 19235 | Distributor housing | 19235-14040 |
| 19250 | Signal generator assembly | 19251-15091 |
| 19500B | Ignition coil assembly | 90919-02135 · 90919-02139 · 90919-02164 |
