Toyota COROLLA vacuum tube — Figure 1708

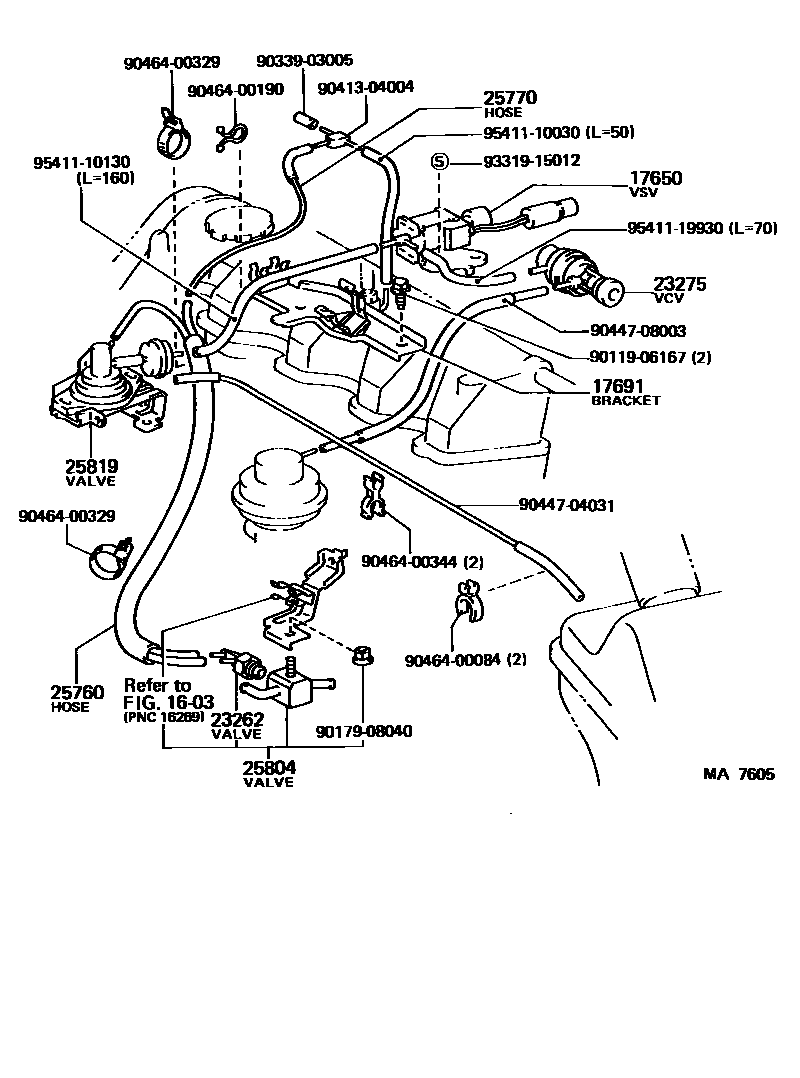

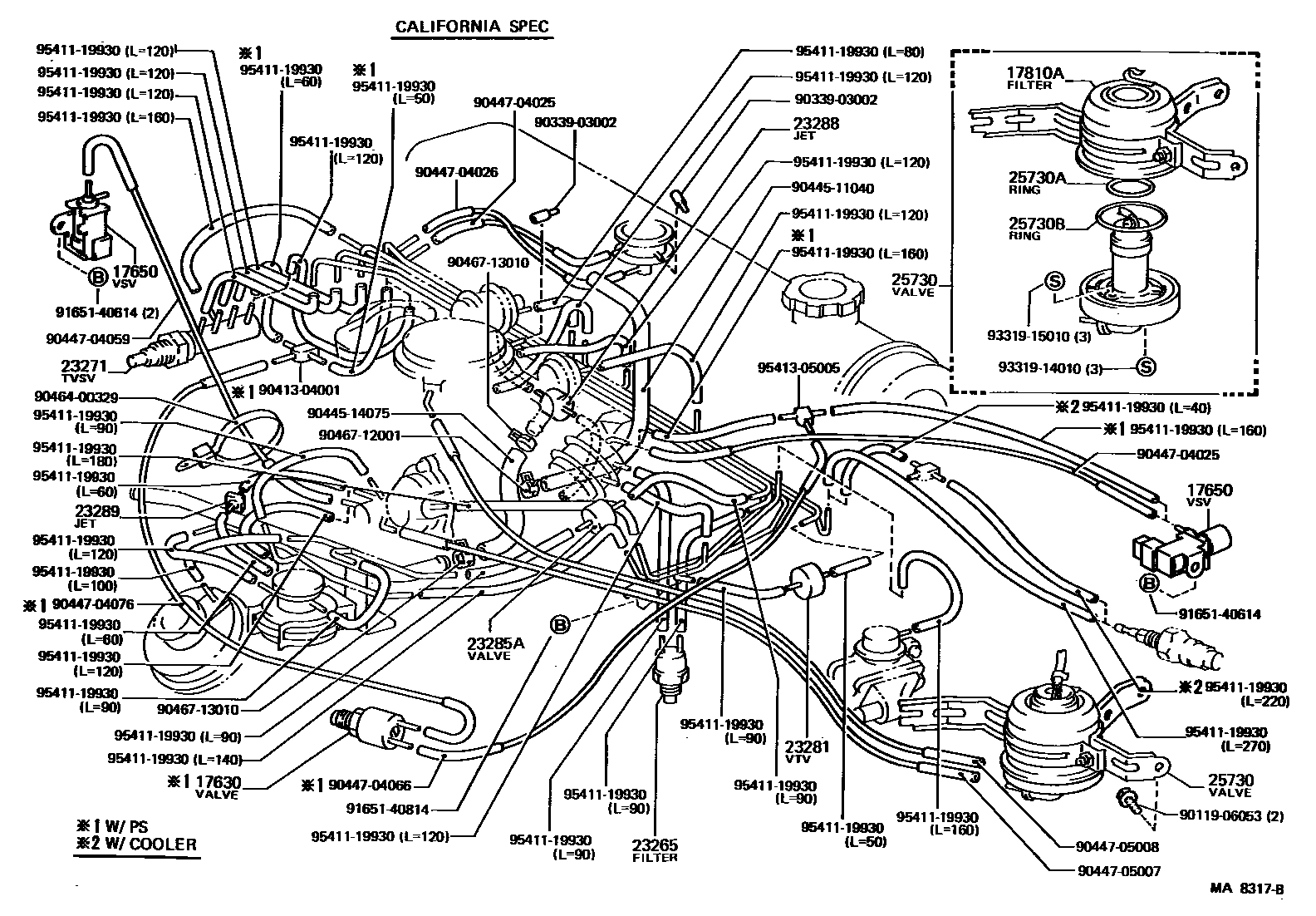

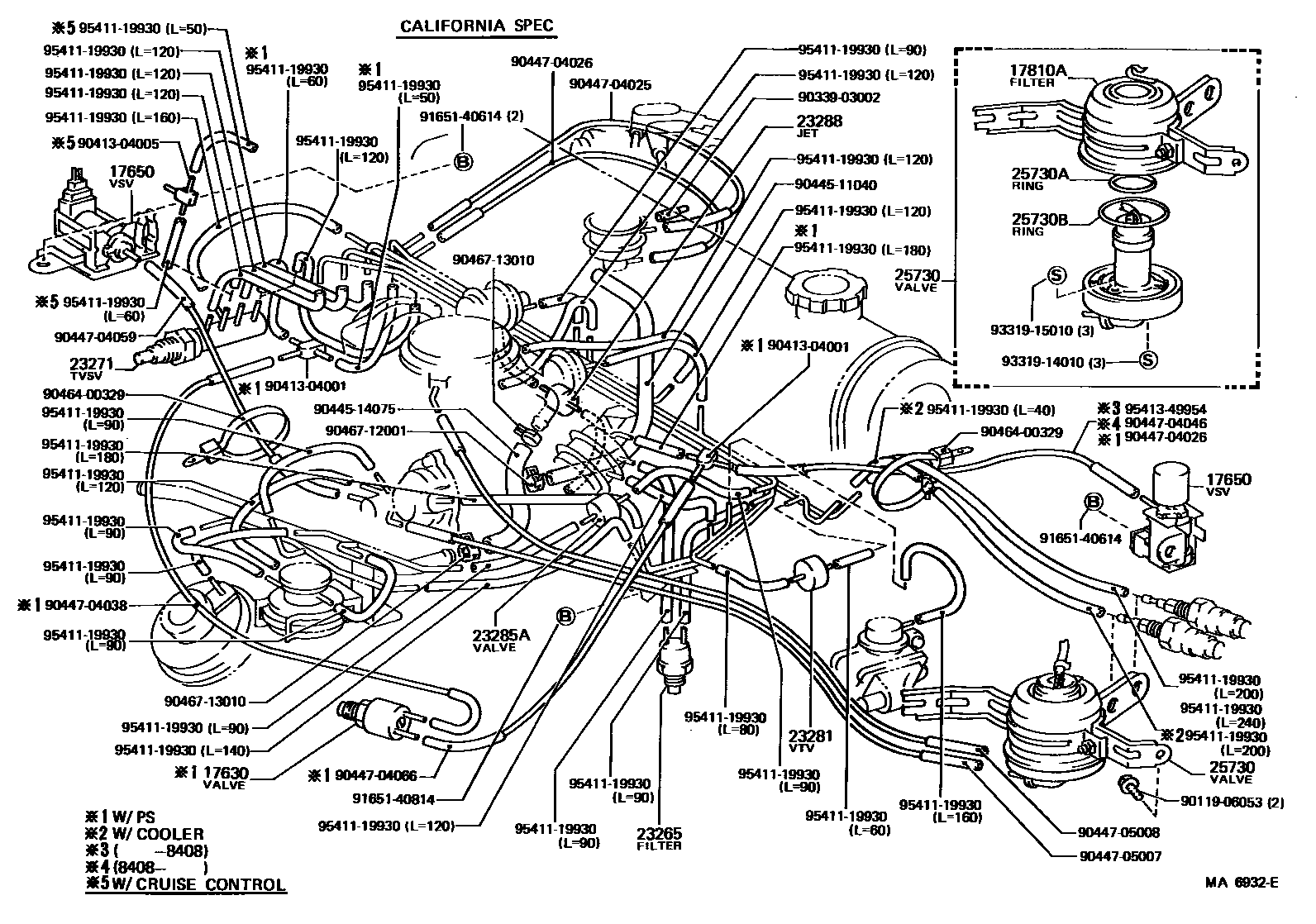

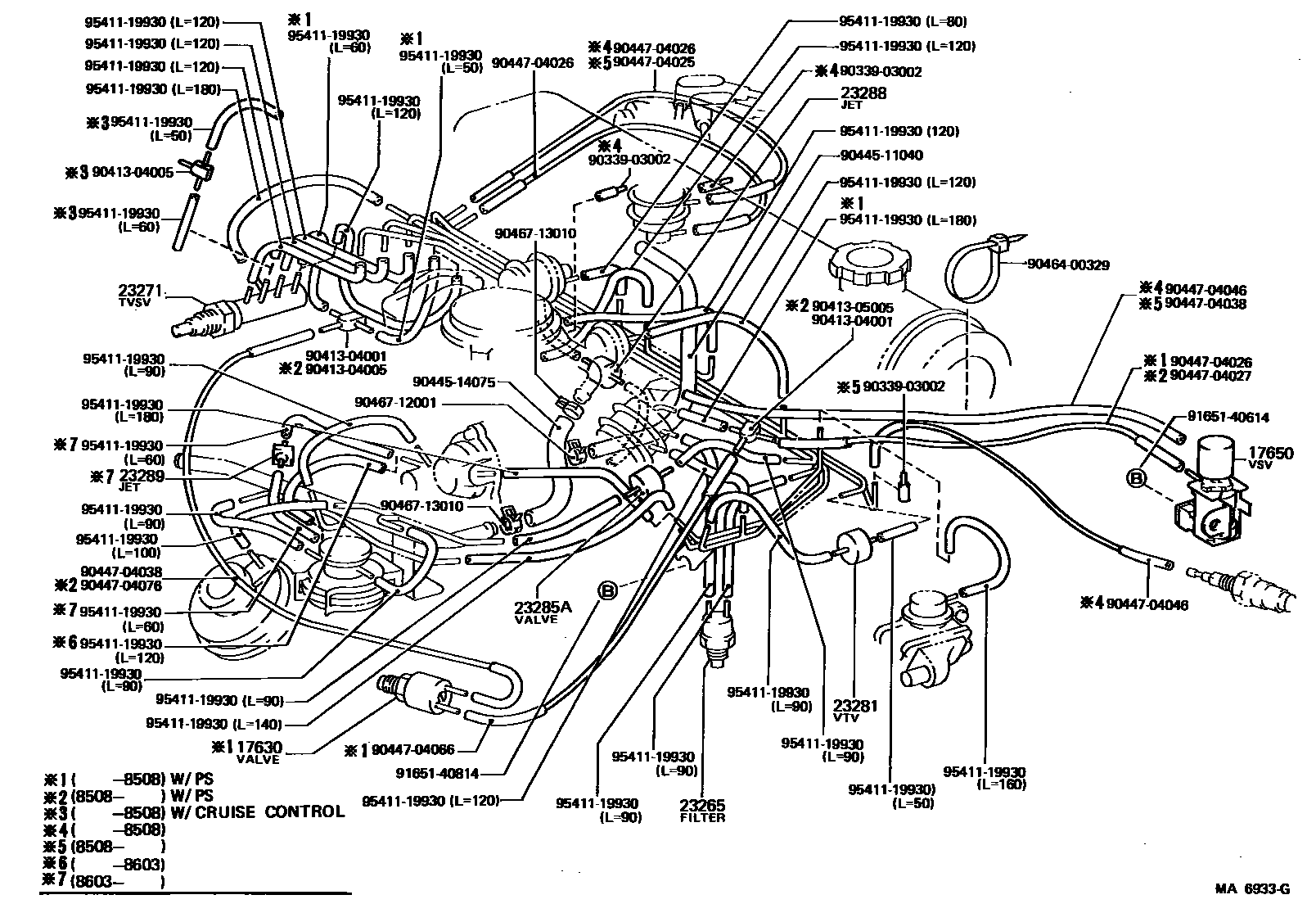

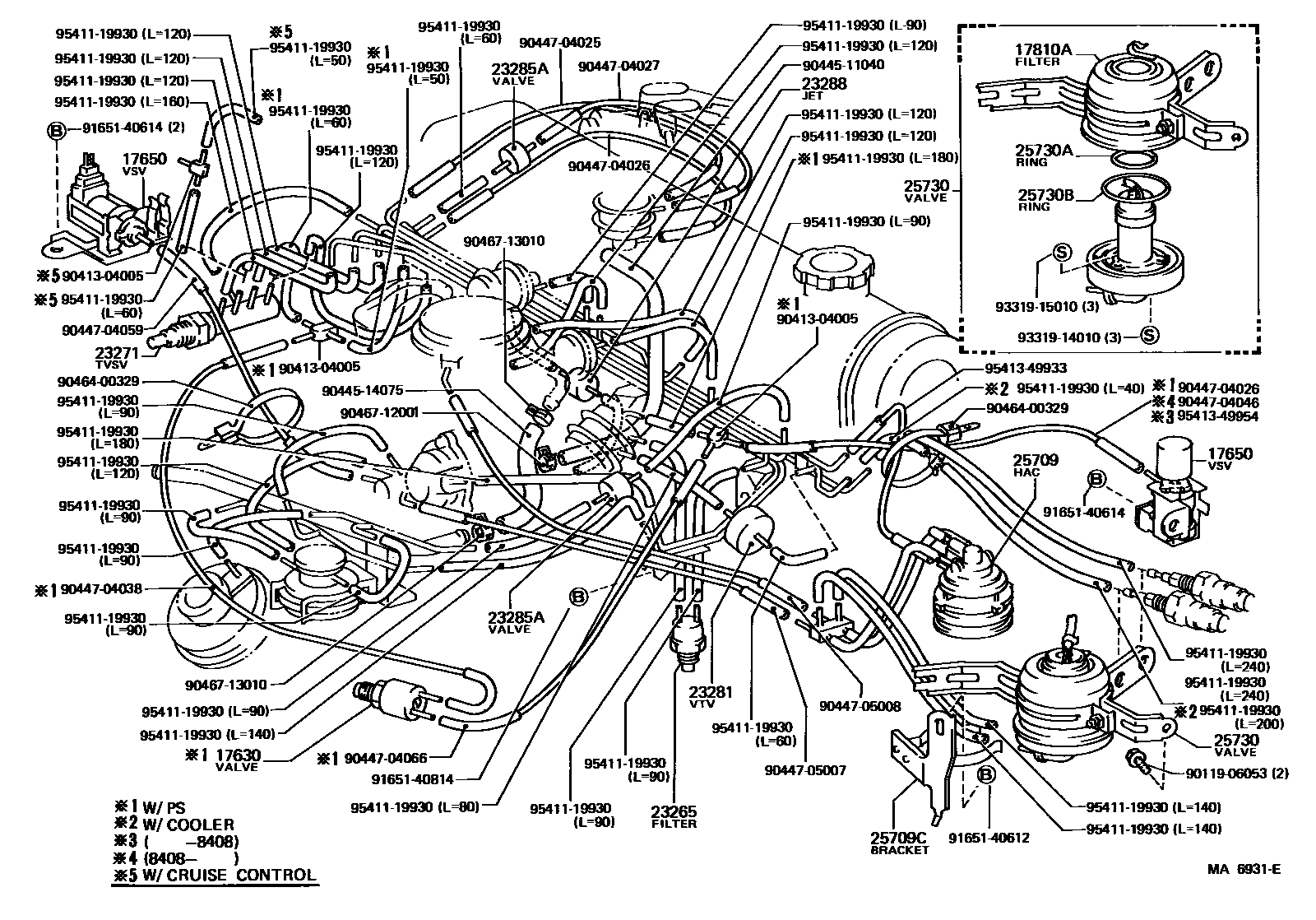

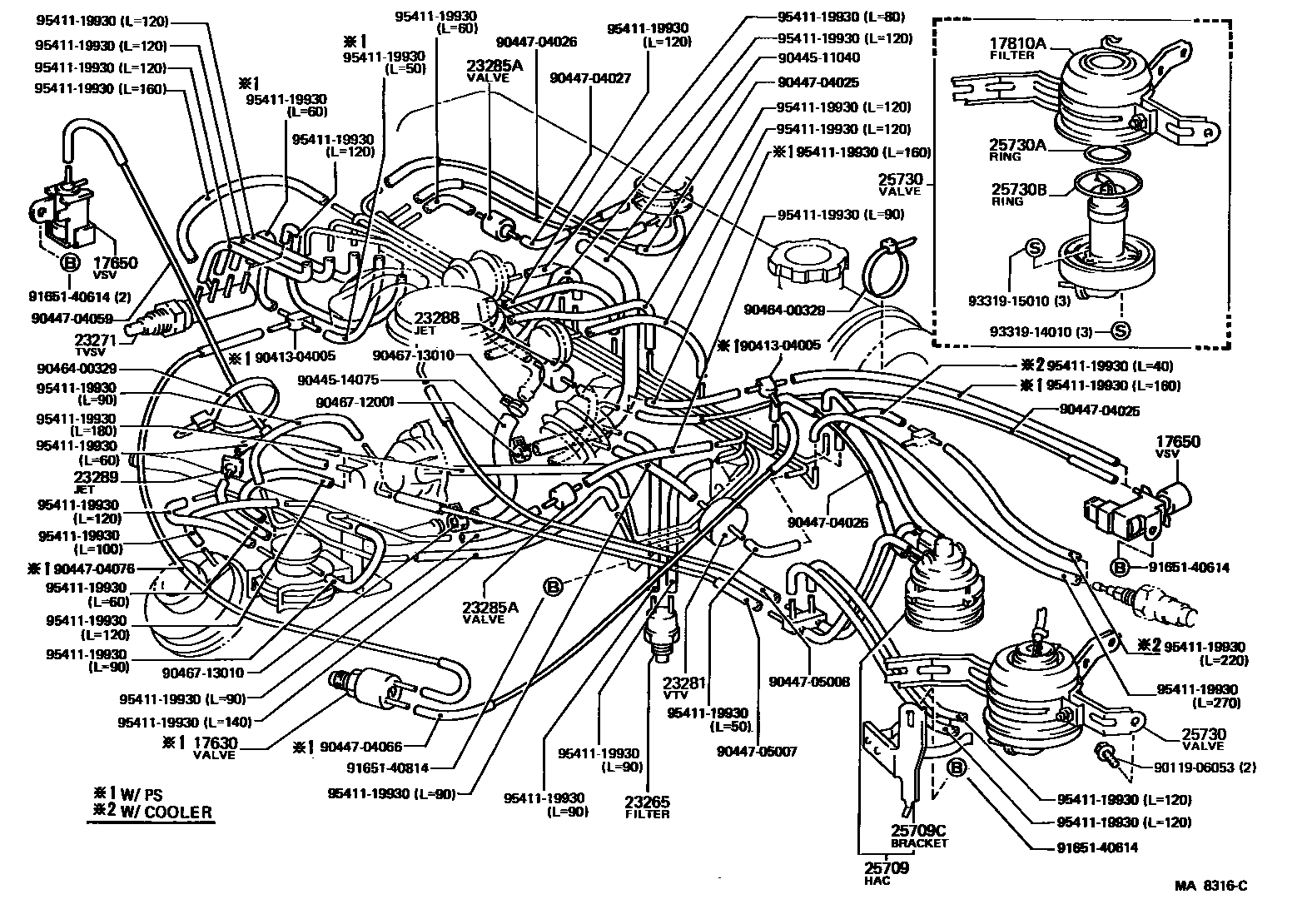

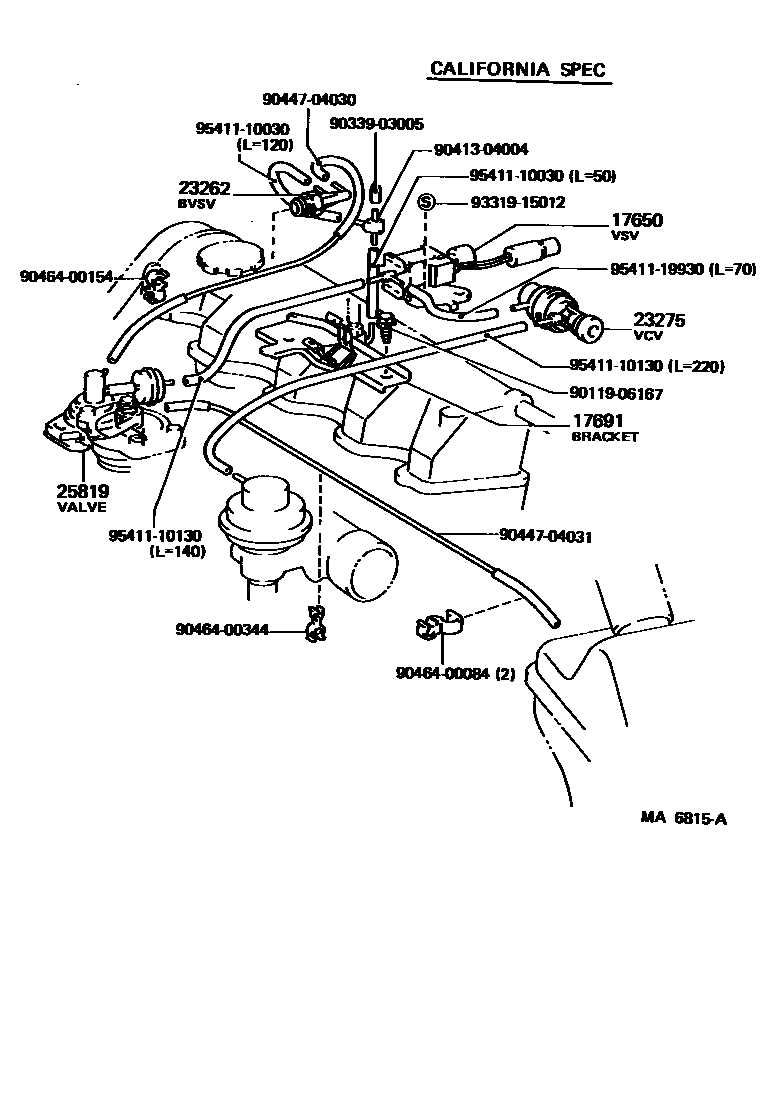

Toyota COROLLA EPC diagram 1708, vacuum tube, with 8 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17630 | Air control valve assembly | 17630-15010 · 17630-15030 |
| 17650 | Vacuum switch valve assembly | 17650-64010 · 89570-12260 · 89570-12270 · 89570-12300 · 89570-12301 · 89570-12320 · 90910-12007 |
| 17691 | No. 1 vacuum control valve bracket | 17691-64010 |
| 17810A | air filter assembly | 17810-15020 · 17810-16010 |
| 23262 | No. 1 bimetallic vacuum switch valve | 90925-05058 |
| 23265 | No. 1 gas filter | 90917-11023 |
| 23271 | No. 1 thermostatic vacuum switching valve | 90925-02076 |
| 23275 | Vacuum control valve No. 1 | 90925-03151 |
| 23281 | Vacuum Transfer Valve No. 1 | 90925-01014 |
| 23285A | No. 1 one-way valve | 90917-10049 |
| 23288 | Nozzle No. 1 | 90925-04003 · 90925-04006 · 90925-04012 |
| 23289 | Nozzle No. 2 | 90925-04034 |
| 25709 | High altitude compensator valve sub-assembly | 25708-16020 · 25708-16060 |
| 25709C | High Altitude Compensator Bracket | 25792-16010 · 25792-16020 |
| 25730 | Electronic exhaust control valve assembly | 25730-16010 · 25730-16040 |
| 25730A | No. 1 O-ring (for electronic exhaust control valve) | 90096-80002 |
| 25730B | No. 2 O-ring (for electronic exhaust control valve) | 90096-80003 · 90099-06032 |
| 25760 | Vacuum transfer hose assembly | 25760-64010 |
| 25770 | No. 2 vacuum transmission hose assembly | 25770-64010 |
| 25804 | Vacuum control valve assembly | 25804-64020 |
| 25819 | Vacuum regulating valve assembly | 25819-64010 · 25819-64020 |
