Toyota COROLLA Exhaust Pipe — Figure 1702

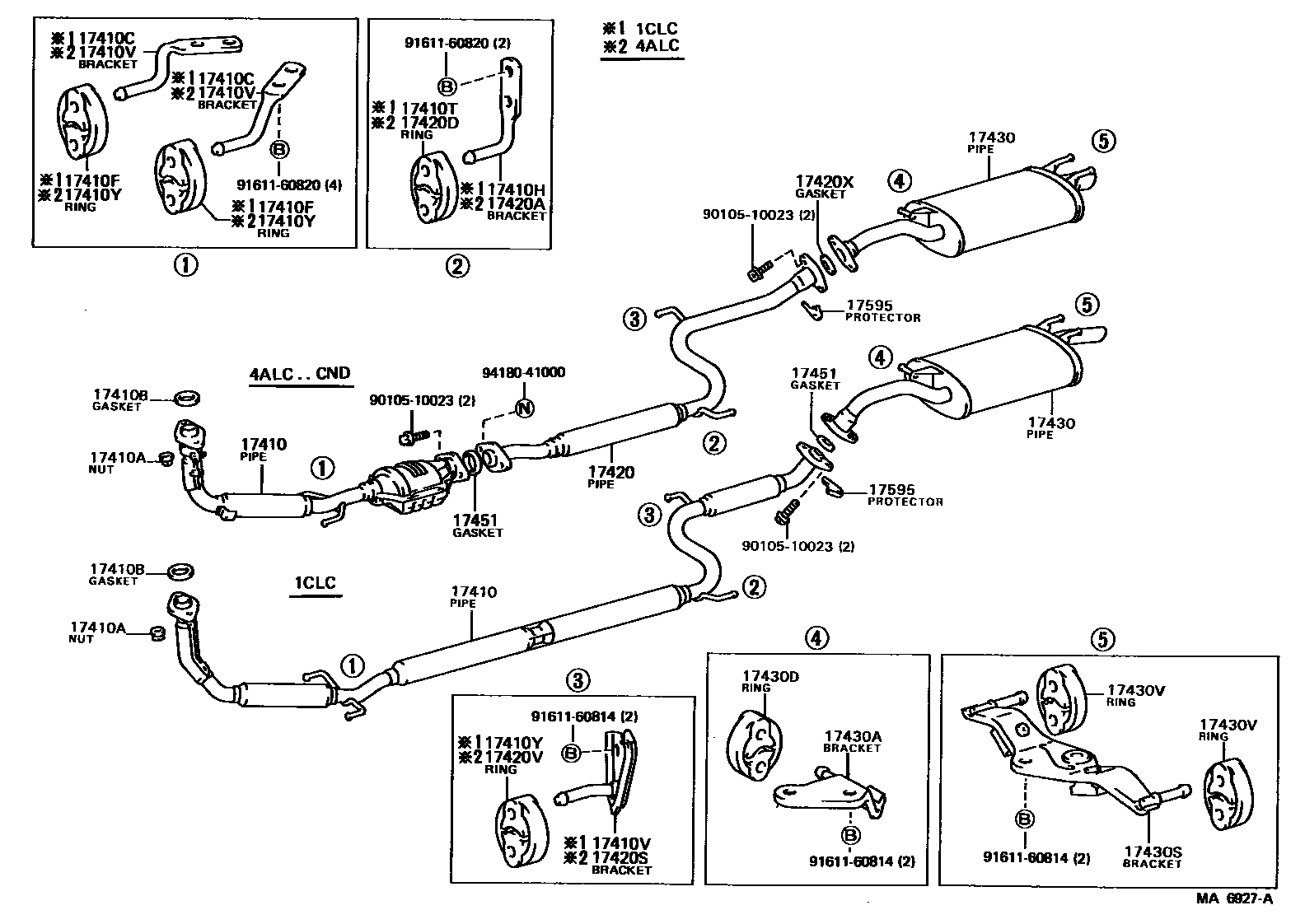

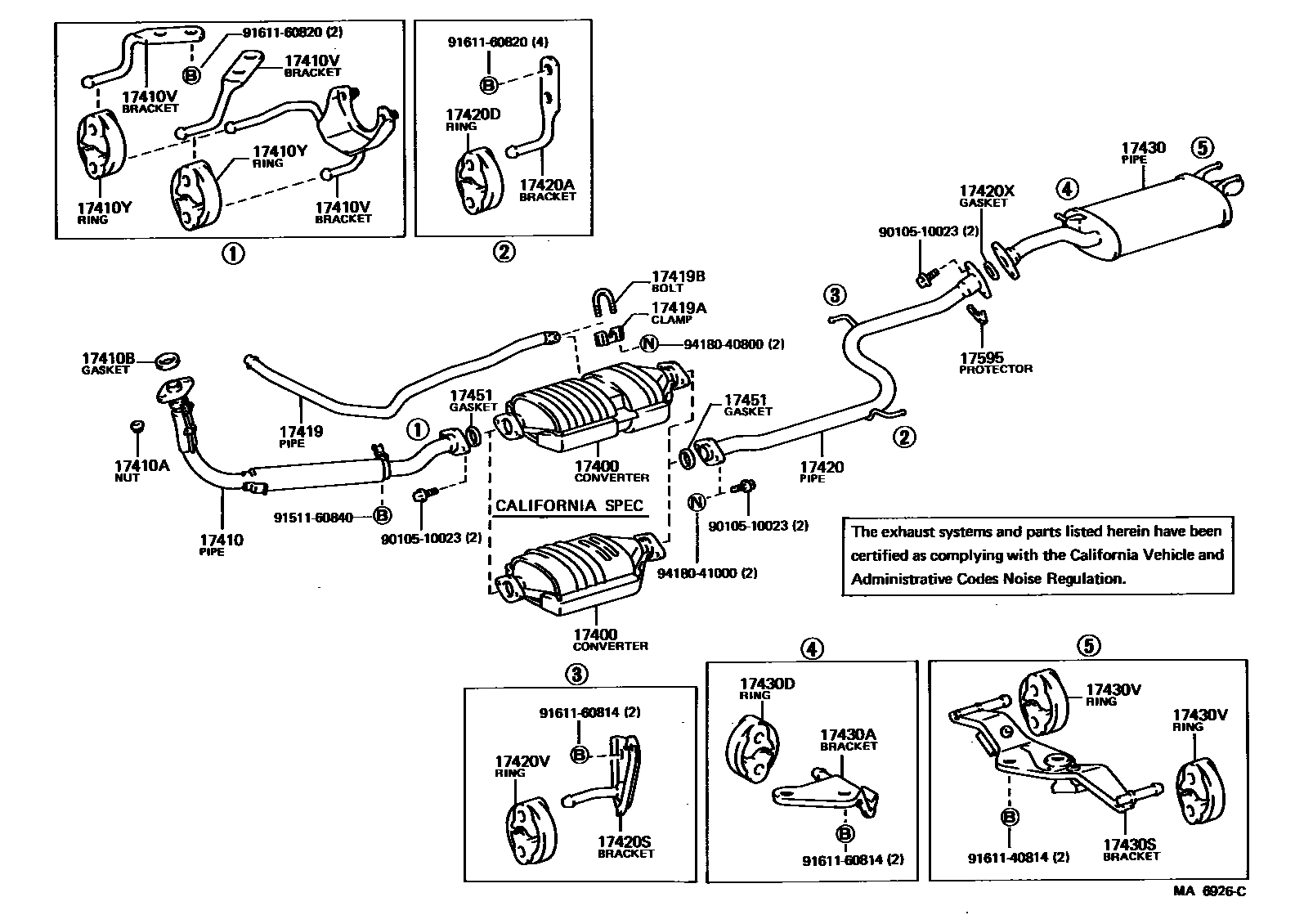

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400 | Three-way catalytic converter assembly with catalyst | 18450-15021 · 18450-15110 · 18450-16020 · 18450-16120 |
| 17410 | Front exhaust pipe assembly | 17410-16060 · 17410-16070 · 17410-16100 · 17410-16101 · 17410-64040 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10010 · 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06004 |
| 17410C | Front exhaust pipe bracket (for front) | 17587-14010 · 17587-14011 · 17588-14010 · 17588-14011 |
| 17410F | Front exhaust pipe bolt or ring (for front) | 17565-63070 · 17565-63071 |
| 17410H | Front exhaust pipe bracket (for center) | 17572-14010 |
| 17410T | Front exhaust pipe bolt or ring (for center) | 17565-63070 · 17565-63071 |
| 17410V | Front exhaust pipe bracket (for rear) | 17503-16050 · 17507-15020 · 17587-14010 · 17587-14011 · 17588-14010 · 17588-14011 |
| 17410Y | Front exhaust pipe bolts or rings (for rear) | 17565-16020 · 17565-63070 · 17565-63071 |
| 17419 | Three-way catalytic converter intake pipe | 17419-16010 · 17419-16030 |
| 17419A | Clamp No. 1 (for three-way catalytic converter intake pipe) | 17578-15020 |
| 17419B | U-shaped bolt (for three-way catalytic converter intake pipe) | 90117-08022 |
| 17420 | Central exhaust pipe assembly | 17420-16010 · 17420-16020 · 17420-16021 · 17420-16030 |
| 17420A | Center exhaust pipe front bracket | 17572-14010 |
| 17420D | Center exhaust pipe front bolt or ring | 17565-63070 · 17565-63071 |
| 17420S | Center exhaust pipe rear bracket | 17507-15020 |
| 17420V | Center exhaust pipe rear bolt or ring | 17565-63070 · 17565-63071 |
| 17420X | Center exhaust pipe liner | 90917-06004 |
| 17430 | Exhaust tailpipe assembly | 17430-14020 · 17430-16070 · 17430-16260 · 17430-16270 · 17430-64110 · 17430-64120 |
| 17430A | Exhaust tailpipe bracket (for front) | 17508-64020 |
| 17430D | Exhaust tailpipe bolts or rings (for front) | 17565-16080 · 17565-63030 |
| 17430S | Exhaust tailpipe bracket (for rear) | 17509-16010 |
| 17430V | Exhaust tailpipe bolts or rings (for rear) | 17565-16080 · 17565-63030 |
| 17451 | Exhaust pipe gasket | 90917-06004 · 90917-06012 · 90917-06020 |
| 17595 | No. 3 lower exhaust pipe protection device | 17597-14010 |
