Toyota COROLLA Oil Filter — Figure 1502

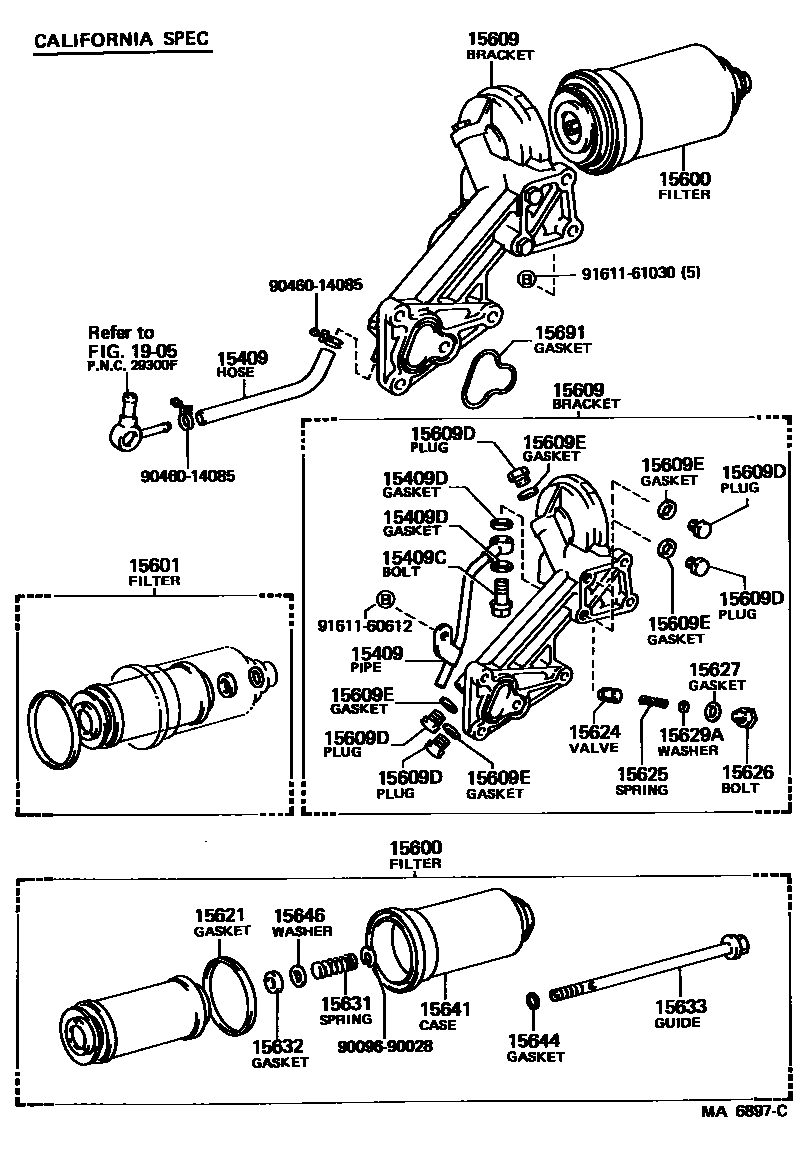

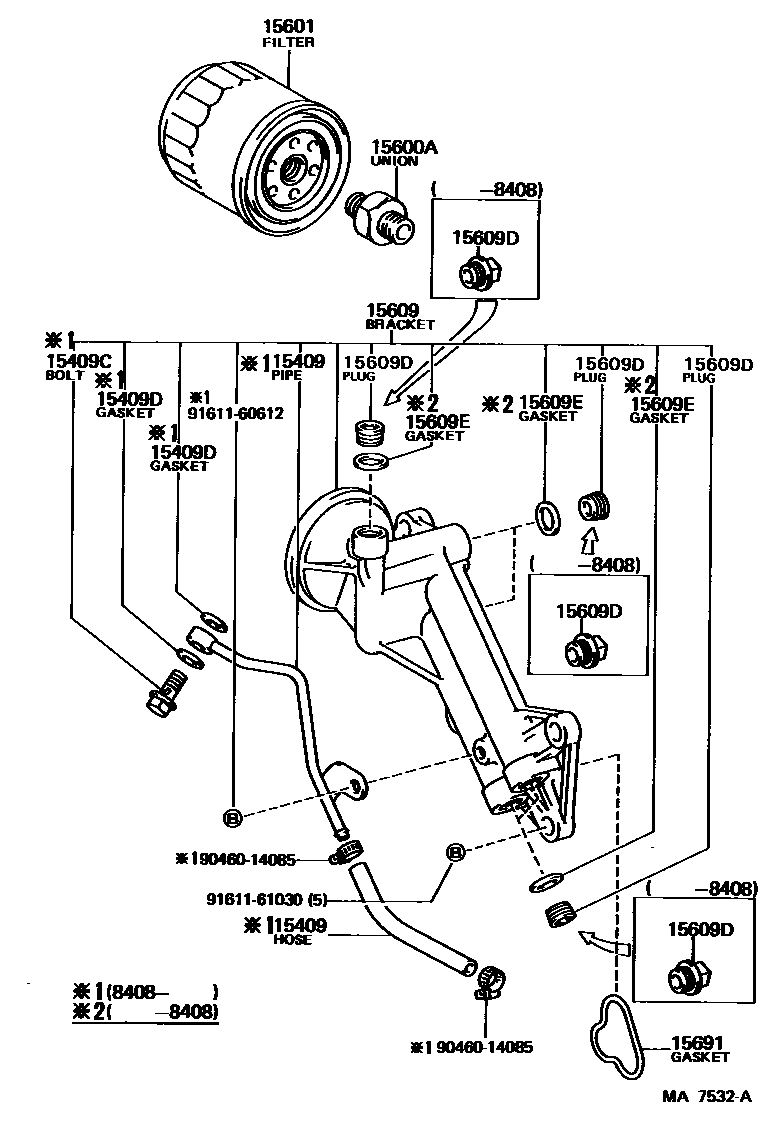

Toyota COROLLA EPC diagram 1502, Oil Filter, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15409 | Oil filter outlet pipe or oil outlet hose | 15431-64010 · 15431-64020 · 90445-14105 |
| 15409C | Joint bolt (for oil filter outlet pipe) | 90401-10020 |
| 15409D | Gasket (for oil filter outlet pipe) | 90430-10035 |
| 15600 | Oil filter assembly | 15600-64010 |
| 15600A | Connector (for oil filter) | 90404-19001 · 90404-19004 · 90404-27001 |
| 15601 | Oil filter sub-assembly | 04152-64010 · 15600-25010 · 15600-64020 · 15601-13011 · 90915-03001 |
| 15609 | Oil filter bracket sub-assembly | 15608-64010 · 15608-64020 · 15608-64030 |
| 15609D | Straight threaded plug with head (for oil filter bracket) | 90341-16009 · 90344-53002 |
| 15609E | Headed straight thread plug liner | 90430-16242 |
| 15621 | Oil filter body gasket | 15621-64010 |
| 15624 | No. 1 filter valve | 15624-40020 |
| 15625 | No. 1 filter valve spring | 15625-40020 |
| 15626 | No. 1 valve fixing bolt | 15626-64010 |
| 15627 | No. 1 valve fixing bolt gasket | 15627-76010 |
| 15629A | Gasket (for oil filter holder) | 15629-64010 |
| 15631 | Oil filter element holder spring | 15631-64010 |
| 15632 | Oil filter element gasket | 15632-40020 |
| 15633 | Oil filter element guide | 15633-64010 |
| 15641 | oil filter housing | 15641-64010 |
| 15644 | Oil filter element guide gasket | 15644-60010 |
| 15646 | Oil filter drain switch gasket or gasket | 90099-01093 |
| 15691 | oil filter gasket | 15691-64020 |
