Toyota COROLLA Cylinder Head — Figure 1104

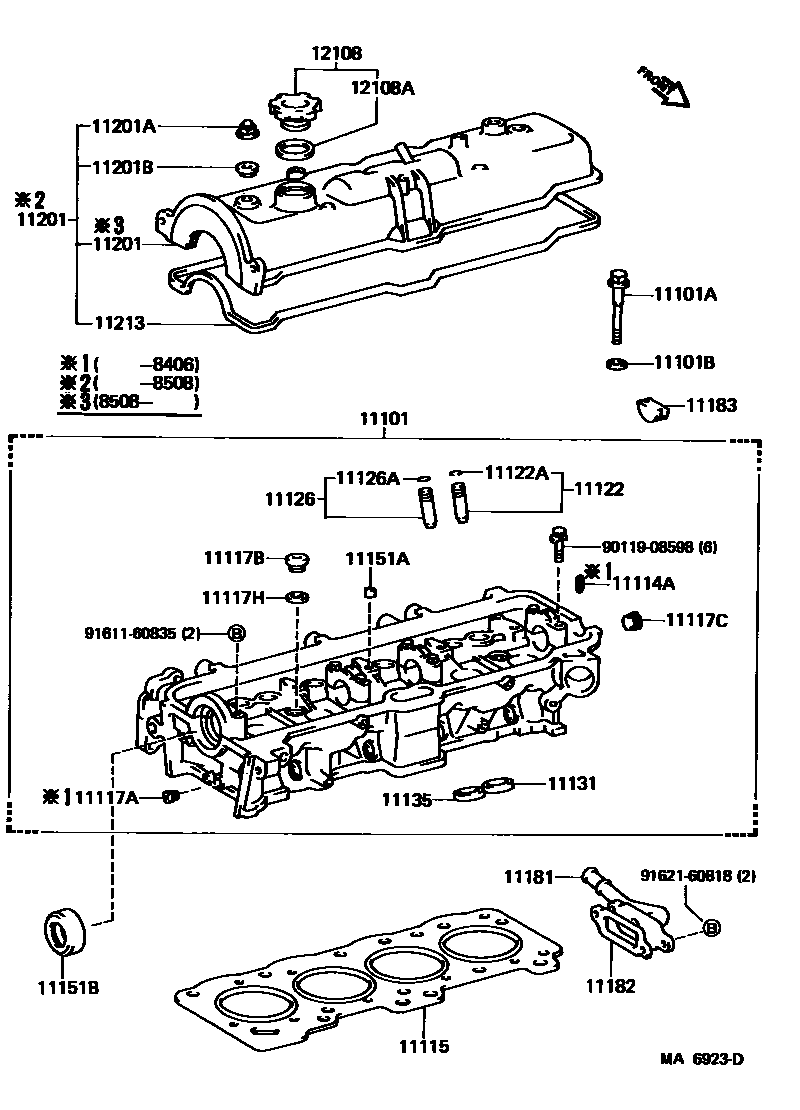

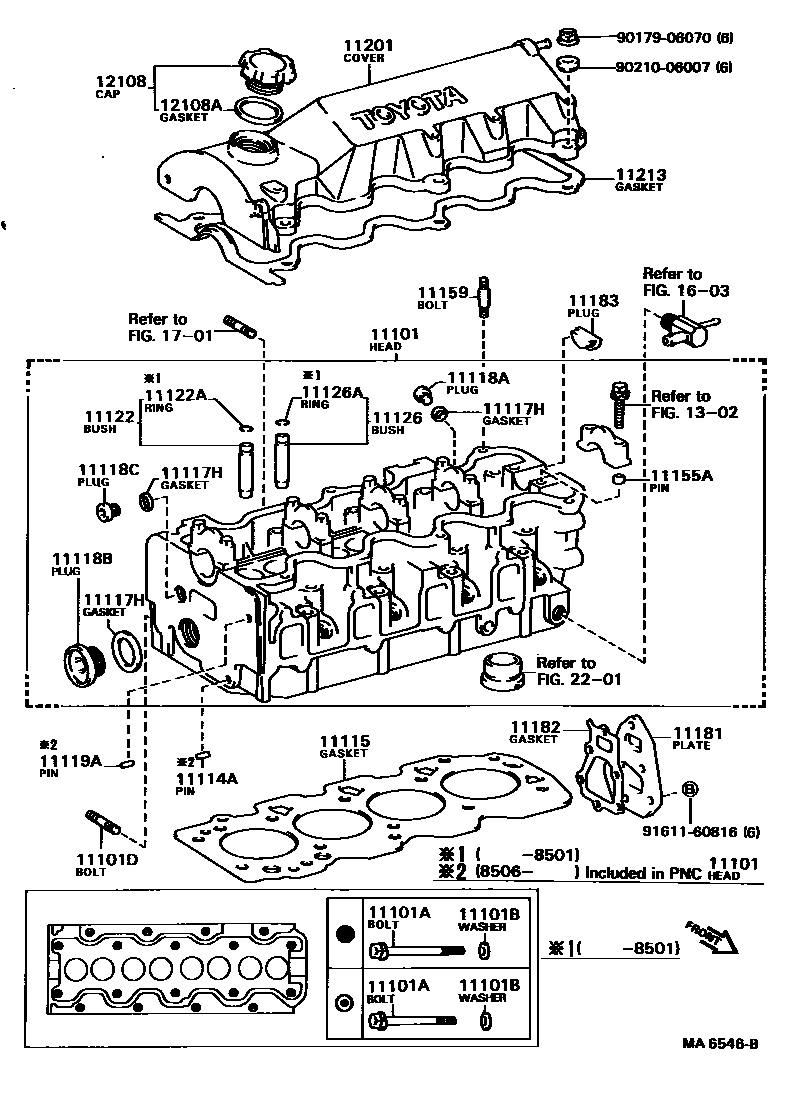

Toyota COROLLA EPC diagram 1104, Cylinder Head, with 2 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-15031 · 11101-15080 · 11101-64011 · 11101-64050 · 11101-64051 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90105-11011 · 90105-11012 · 90109-10025 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-10344 · 90201-12222 |
| 11101D | Stud bolts (for water outlet) | 92122-60820 |
| 11114A | direct selling | 90250-06068 · 90254-03003 |
| 11115 | GASKET, CYLINDER HEAD | 11115-16020 · 11115-16050 · 11115-64050 · 11115-64070 |
| 11117A | No. 1 headed tapered thread plug | 90344-51002 |
| 11117B | No. 2 headed tapered thread plug | 90341-20002 |
| 11117C | No. 3 headed tapered thread plug | 90344-54002 |
| 11117H | Gasket (for coolant hole) | 90430-10204 · 90430-12005 · 90430-12010 · 90430-20004 · 90430-33133 |
| 11118A | No. 1 straight screw plug | 90341-10005 |
| 11118B | No. 2 straight screw plug | 90341-32070 |
| 11118C | No. 3 straight screw plug | 90341-12002 |
| 11119A | No. 1 direct sales | 90250-06068 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-15011 · 11122-15020 · 11122-64010 · 11123-15011 · 11123-15020 · 11123-64010 · 11126-24020 · 11127-24020 |
| 11122A | Shaft snap ring (for valve guide bushing) | 90520-10001 · 90520-12049 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11126-15011 · 11126-15020 · 11126-24020 · 11126-64010 · 11126-64020 · 11127-15011 · 11127-15020 · 11127-24020 · 11127-64010 · 11127-64020 |
| 11126A | Shaft snap ring (for valve guide bushing) | 90520-10001 · 90520-12049 |
| 11131 | intake valve seat | 11131-15020 · 11132-15020 |
| 11135 | Exhaust valve seat | 11135-15020 · 11136-15020 |
| 11151A | Ring pin (for securing camshaft bearing cap) | 90253-11021 |
| 11151B | OIL SEAL (FOR CAMSHAFT SETTING) | 90311-35013 |
| 11155A | PIN, RING W/HEAD | 90253-11021 |
| 11159 | Studs (for mounting cylinder head to camshaft bearing cap) | 90116-06023 |
| 11181 | cylinder head rear plate | 11181-15050 · 11181-64010 |
| 11182 | Rear cylinder head gasket | 11182-15011 · 11182-64010 |
| 11183 | PLUG, SEMICIRCULAR | 11183-15010 · 11183-64010 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-64020 · 11210-15040 · 11210-19025 |
| 11201A | Cap nut (for cylinder head cover) | 90176-08007 |
| 11201B | Gasket (for cylinder head cover) | 90210-09001 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-15020 · 11213-15040 · 11213-64020 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-13030 · 12180-62010 · 12180-70010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90430-37140 |
