Toyota COROLLA 后视镜 — Figure 8701

Toyota COROLLA EPC diagram 8701, 后视镜, with 2 images and 17 PNC and OE references.

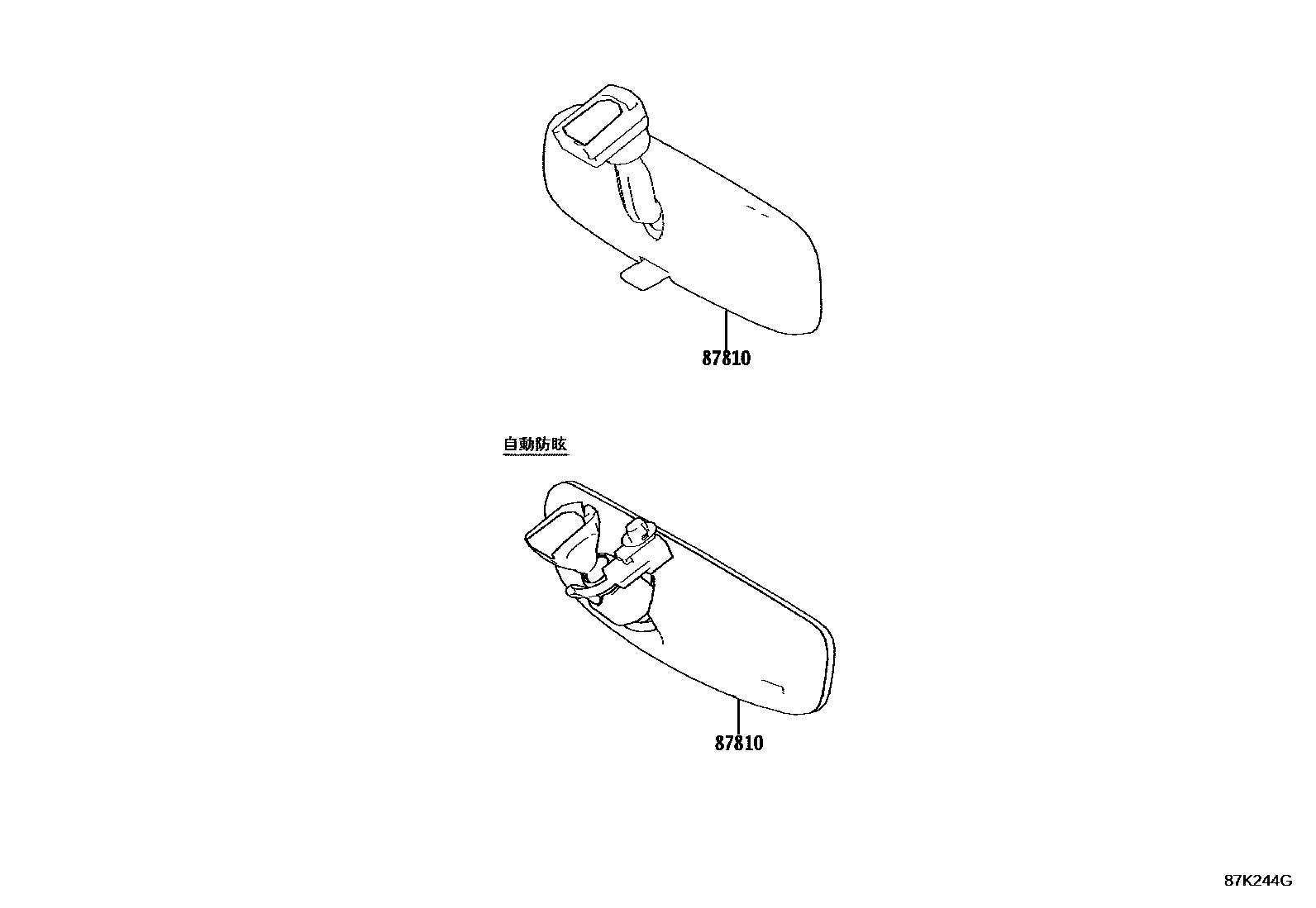

Toyota COROLLA 后视镜 EPC diagram — 87K244G
后视镜 — 87K244G (202108 – 999999)

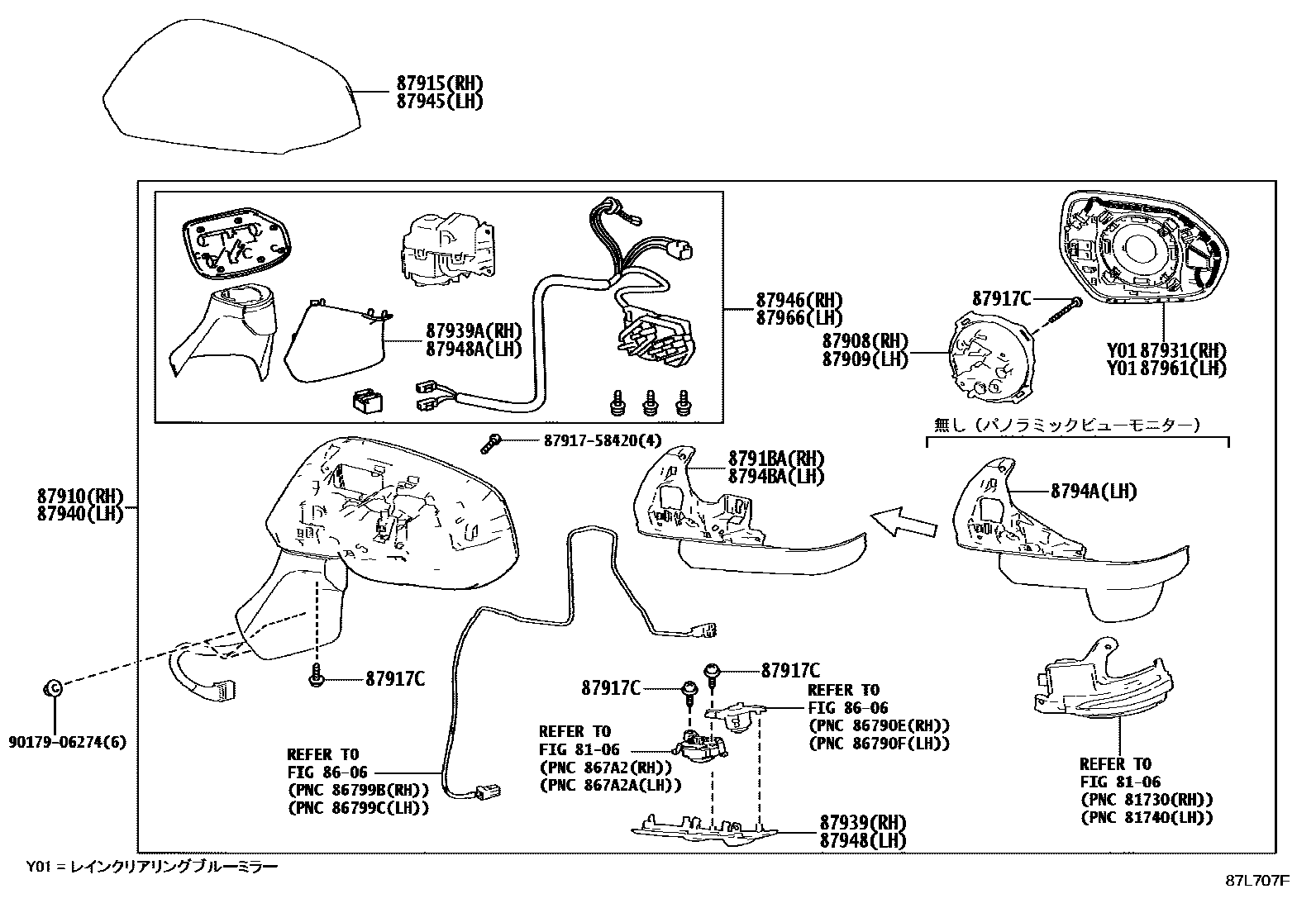

Toyota COROLLA 后视镜 EPC diagram — 87L707F
后视镜 — 87L707F (202108 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-16070 · 87810-28140
87908Right exterior rearview mirror actuator assembly87908-42E71 · 87908-42M50
87909Left exterior rearview mirror actuator assembly87908-42E71 · 87908-42M50
87910Right exterior rearview mirror assembly87910-16A00 · 87910-16A01 · 87910-16A10 · 87910-16A11 · 87910-16A30 · 87910-16A31 · 87910-16B50 · 87910-16B51 · 87910-16B70
87917CExterior rearview mirror screws87917-15010
8791BAToyota part8791B-28C70 · 8791B-28D00
87931Right exterior rearview mirror87931-16A70 · 87931-28C70 · 87931-28C80 · 87931-28C90
87939Right exterior rearview mirror hole cover87939-16A00
87939ARight exterior rearview mirror hole cover87939-16A30
87940Left exterior rearview mirror assembly87940-16A00 · 87940-16A01 · 87940-16A10 · 87940-16A11 · 87940-16A30 · 87940-16A31 · 87940-16B40 · 87940-16B41 · 87940-16B70
87946Right exterior rearview mirror retractor87946-16A00 · 87946-16A10 · 87946-16A30 · 87946-16B20 · 87946-16B50
87948Left exterior rearview mirror hole cover87948-16A00
87948ALeft exterior rearview mirror hole cover87948-16A30
8794ANo. 2 left exterior rearview mirror cap8794A-28D10
8794BAToyota part8794B-28D40
87961Left exterior rearview mirror87961-16A60 · 87961-28D10 · 87961-28D20 · 87961-28D30
87966Left exterior rearview mirror retractor87966-16A00 · 87966-16A10 · 87966-16A30 · 87966-16B10 · 87966-16B40
