Toyota COROLLA 车载电话和呼救装置 — Figure 8615

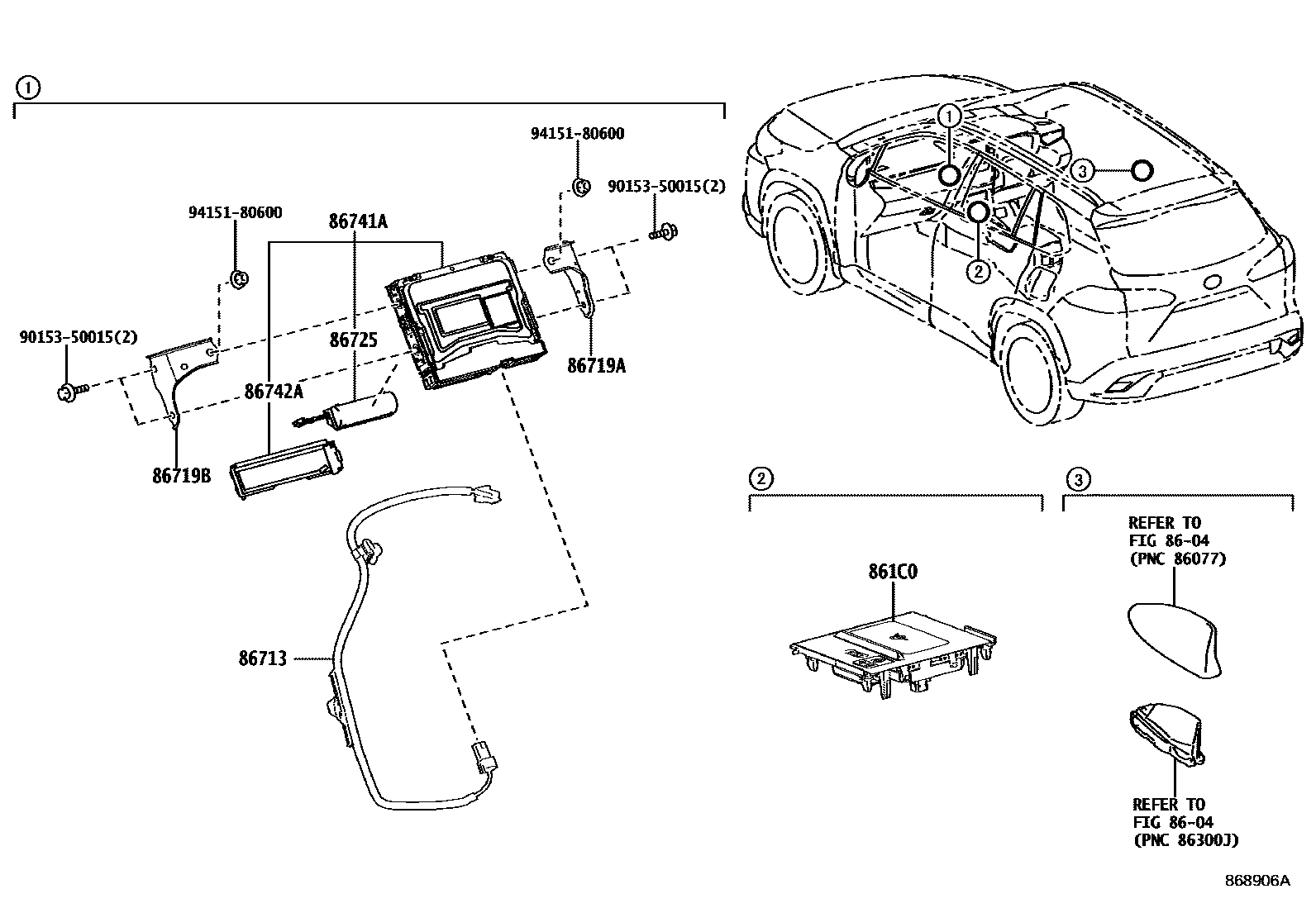

Toyota COROLLA EPC diagram 8615, 车载电话和呼救装置, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 861C0 | Toyota part | 861C0-16020 · 861C0-16040 |
| 86713 | Telephone ECU wiring harness | 86713-16010 · 86713-16040 · 86713-16050 |
| 86719A | Phone holder No. 1 | 86719-12010 |
| 86719B | Phone holder No. 2 | 86719-12020 |
| 86725 | mobile phone battery | 86725-26010 · 86725-78020 |
| 86741A | Telecommunications transceiver | 86741-11042 · 86741-42220 · 86741-42221 · 86741-52080 |
| 86742A | transceiver cover | 86742-26010 |
