Toyota COROLLA 喇叭 — Figure 8611

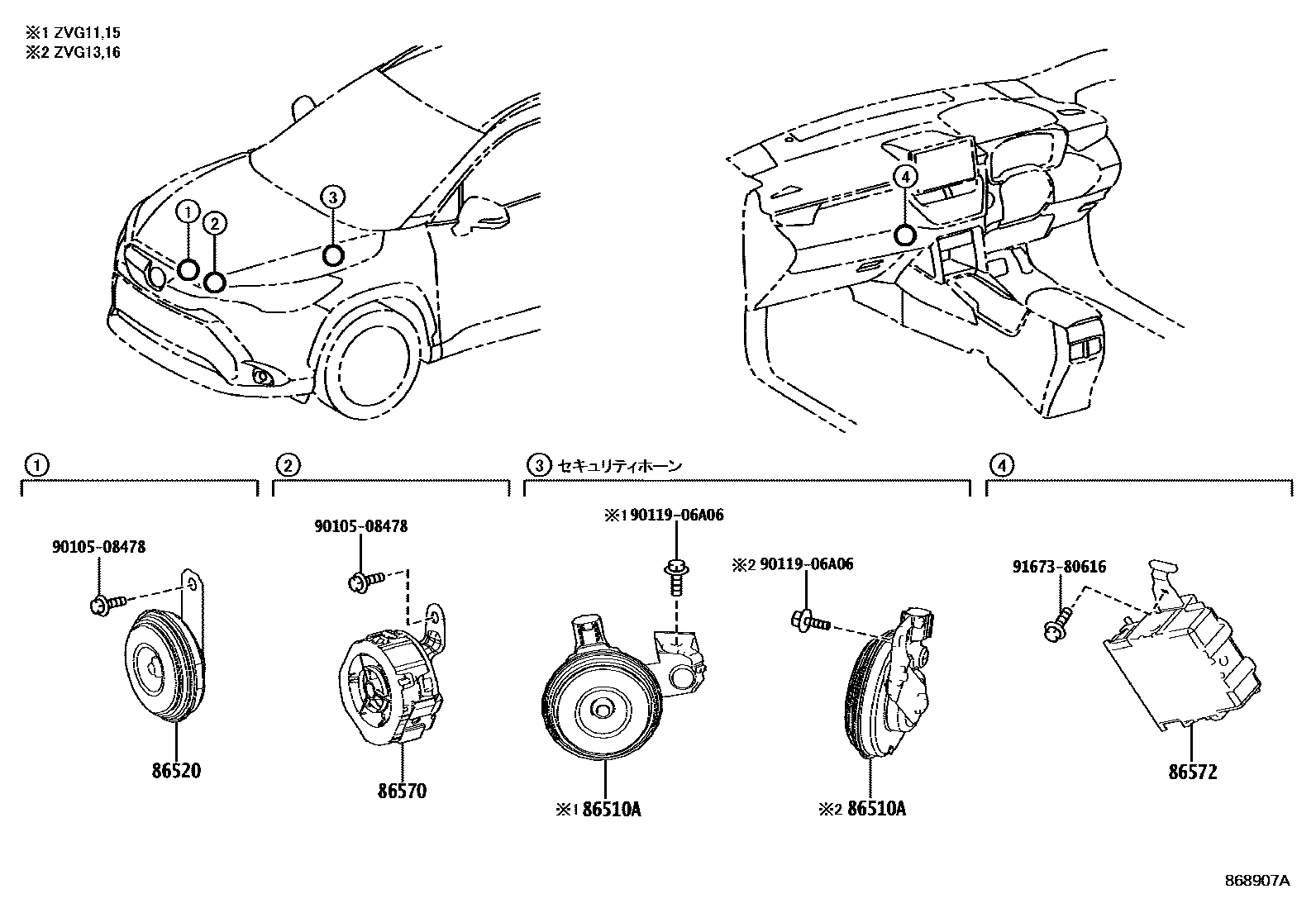

Toyota COROLLA EPC diagram 8611, 喇叭, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86510A | Alarm horn assembly | 86560-10020 · 86560-47050 |
| 86520 | Subwoofer assembly | 86520-68010 |
| 86570 | Vehicle intrusion speaker assembly | 86570-12030 |
| 86572 | vehicle hacking speaker controller | 86572-16030 · 865H2-16010 |
