Toyota COROLLA 收音机通信和ETC — Figure 8610

Toyota COROLLA EPC diagram 8610, 收音机通信和ETC, with 2 images and 4 PNC and OE references.

Toyota COROLLA 收音机通信和ETC EPC diagram — 868908A
收音机通信和ETC — 868908A (202108 – 999999)

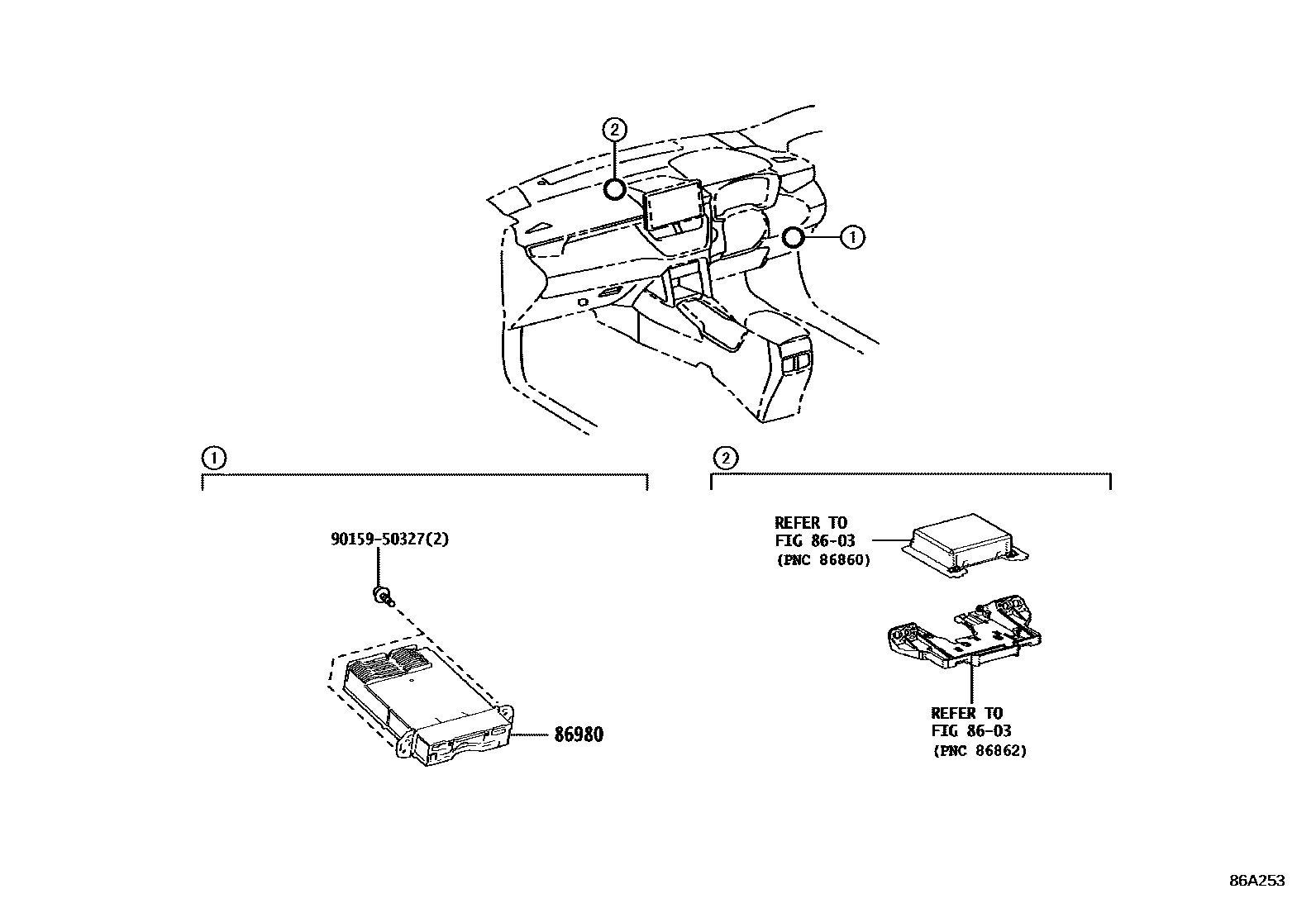

Toyota COROLLA 收音机通信和ETC EPC diagram — 86A253
收音机通信和ETC — 86A253 (202310 – 999999)

PNC and OE references

PNCPart nameOE numbers
86915AToyota part86915-K0010
86980Toll collection machine ECU assembly86980-12030 · 86980-30150 · 86980-30160 · 86980-K0011 · 86980-K0021
86982Toll collection machine wiring harness86982-K0010 · 86982-K0020
86988Toyota part86988-11010
