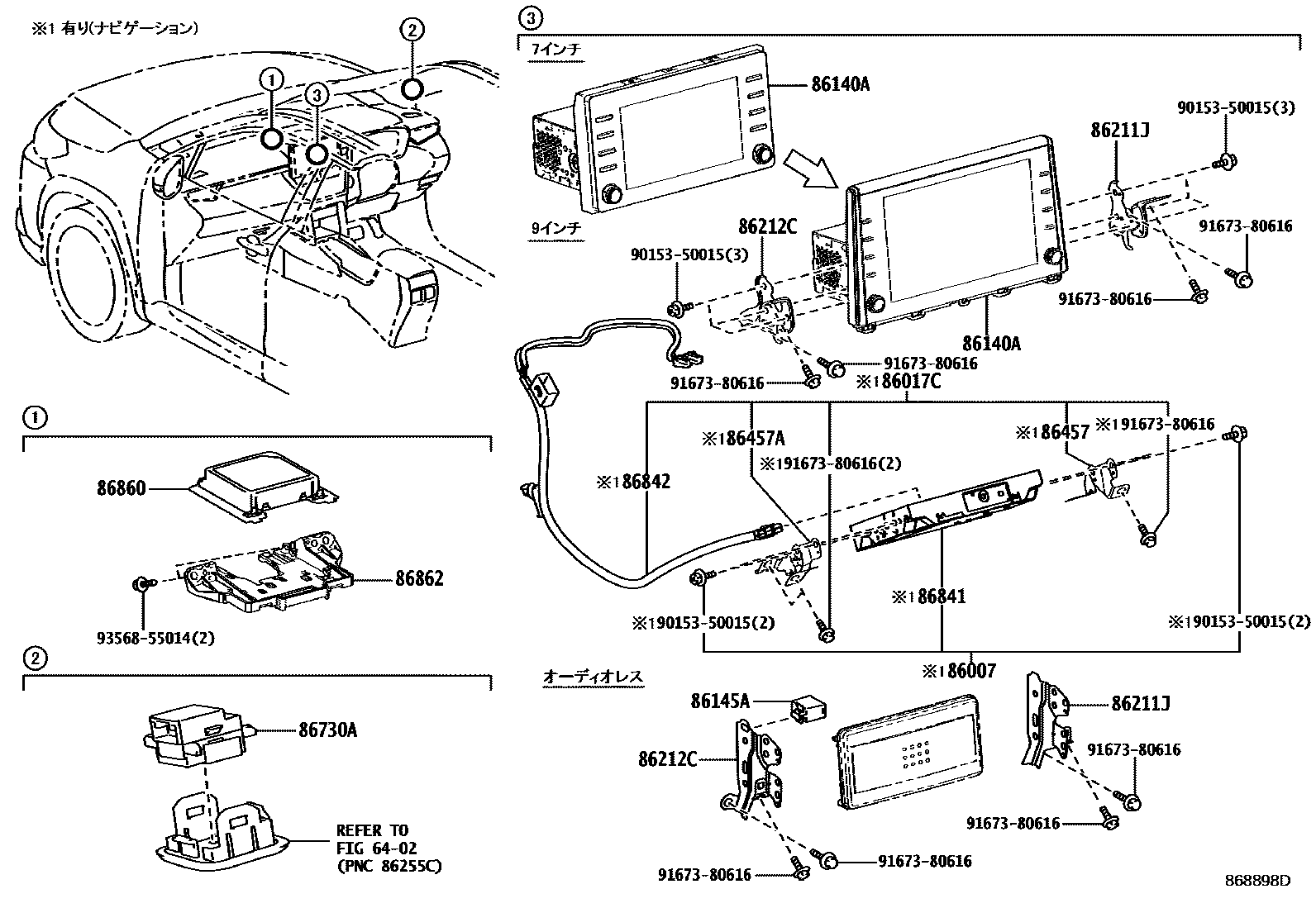

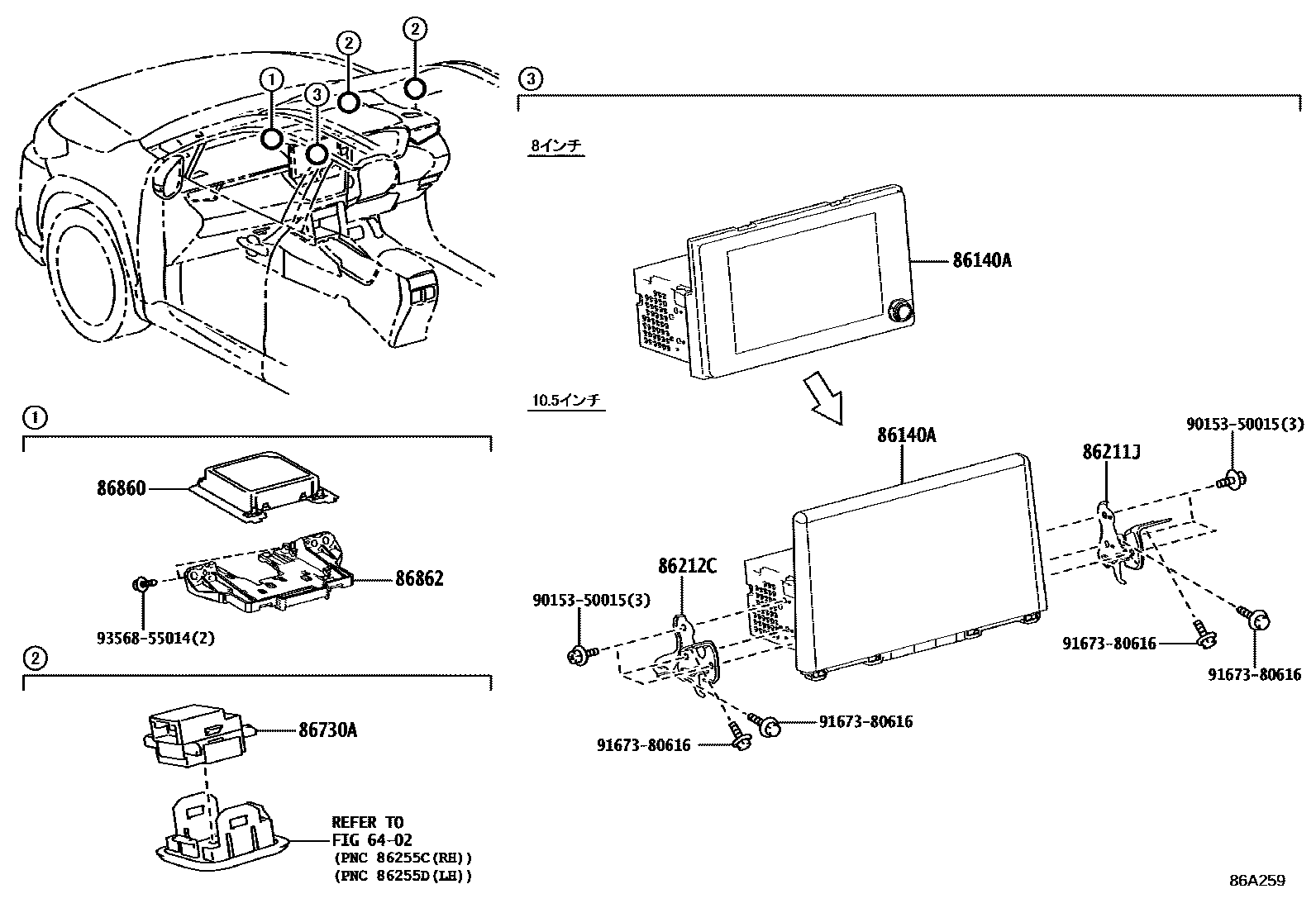

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86007 | Toyota part | 86007-52010 · 86007-52020 |
| 86017C | Toyota part | 86017-12010 |
| 86140A | Radio and display receiver assembly | 86100-16520 · 86140-16080 · 86140-16090 · 86140-16180 · 86140-16190 · 86140-16310 · 86140-16311 · 86140-16312 · 86140-16400 · 86140-16401 · 86140-16402 |
| 86145A | Toyota part | 86145-52010 |
| 86211J | No. 1 radio bracket | 86211-12470 · 86211-12490 |
| 86212C | No. 2 radio bracket | 86212-12460 · 86212-12480 |
| 86457 | Multimedia module bracket No. 1 | 86457-12010 |
| 86457A | Multimedia module bracket No. 2 | 86457-12020 |
| 86730A | Telephone amplifier assembly | 86730-16010 · 86730-45030 |
| 86841 | Navigation ECU | 86840-K0034 · 86840-K0035 · 86840-K0036 · 86840-K0037 · 86840-K0038 · 86840-K0044 · 86840-K0045 · 86840-K0046 · 86840-K0047 · 86840-K0048 |
| 86842 | Navigation harness No. 1 | 86842-12040 |
| 86860 | Navigation antenna assembly | 86880-52030 · 86880-78010 |
| 86862 | Navigation antenna bracket | 86862-42010 |
