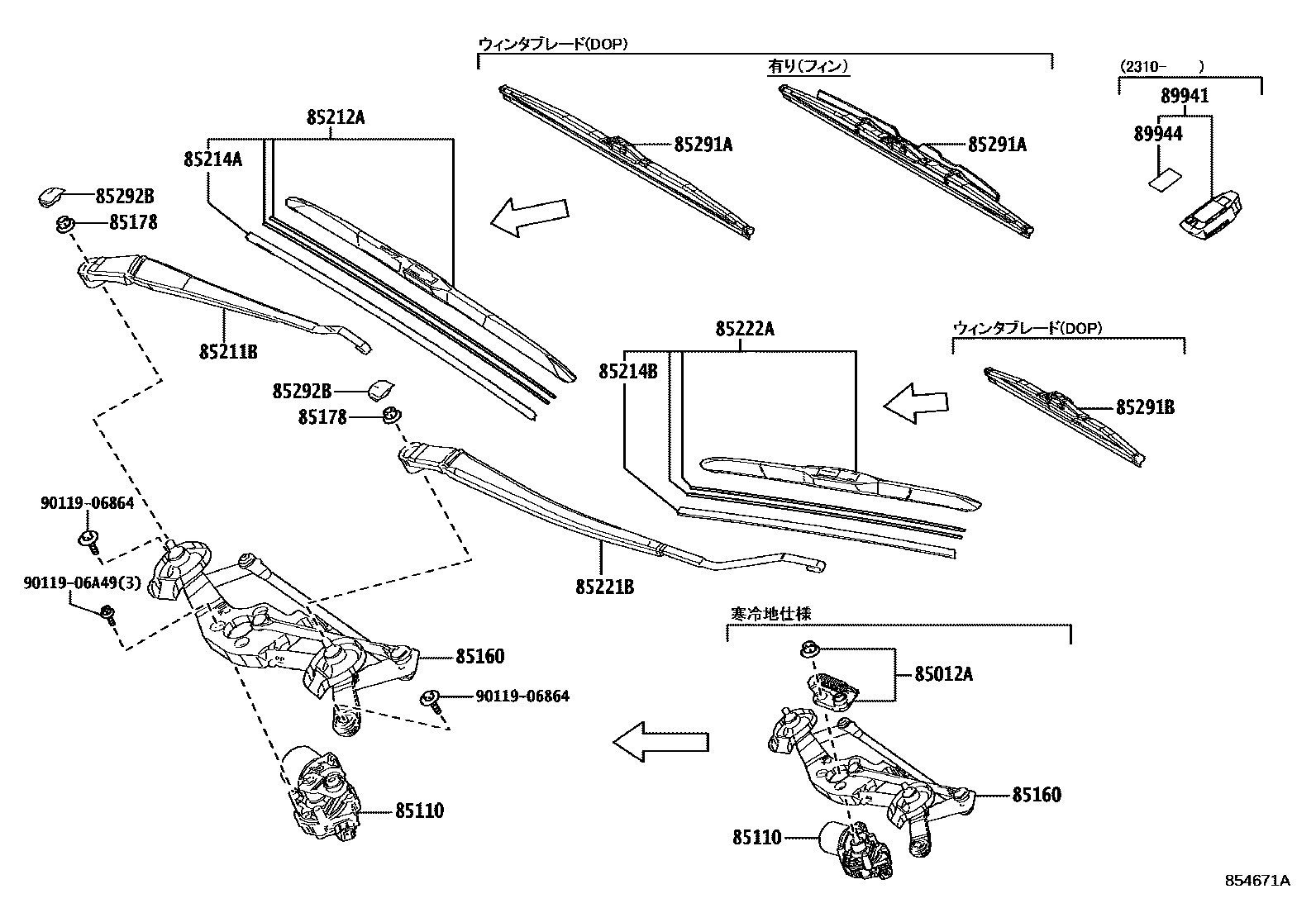

Toyota COROLLA 挡风玻璃刮水器 — Figure 8501
Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85012A | Front wiper elbow tie rod sub-assembly | 85012-58030 |
| 85110 | Windshield wiper motor assembly | 85110-12C80 · 85110-16680 |
| 85160 | Windshield wiper connecting rod assembly | 85150-16550 |
| 85178 | Nut (for securing front wiper arm) | 90182-10006 |
| 85211B | Right front wiper arm | 85211-16160 |
| 85212A | Right front wiper blade | 85212-30470 |

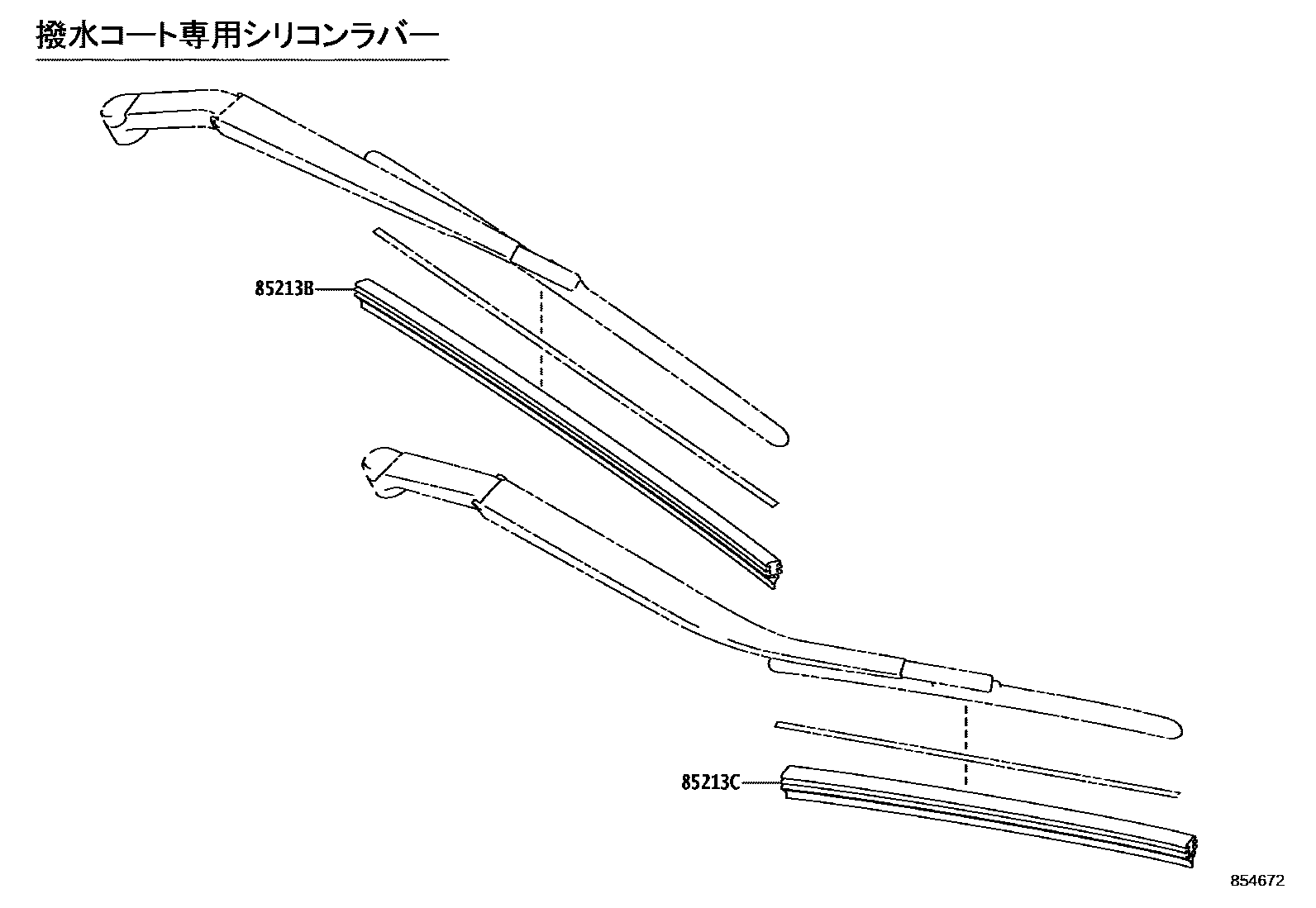

| 85213B | Toyota part | 85213-30280 |
| 85213C | Toyota part | 85213-28120 |
| 85214A | Right wiper rubber strip | 85214-52110 |
| 85214B | Left wiper rubber strip | 85214-28090 |
| 85221B | Left front wiper arm | 85221-16210 |
| 85222A | Left front wiper blade | 85222-76030 |
| 85291A | Right front wiper blade for winter use | 85291-47040 · 85291-60091 |
| 85291B | Left front wiper blade for winter use | 85291-71020 |
| 85292B | Front wiper arm cap | 85292-13010 |
| 89941 | rain sensor | 89941-78020 |
| 89944 | Rain sensor tape | 89944-42020 |
