Toyota COROLLA HV逆变器 — Figure 8431

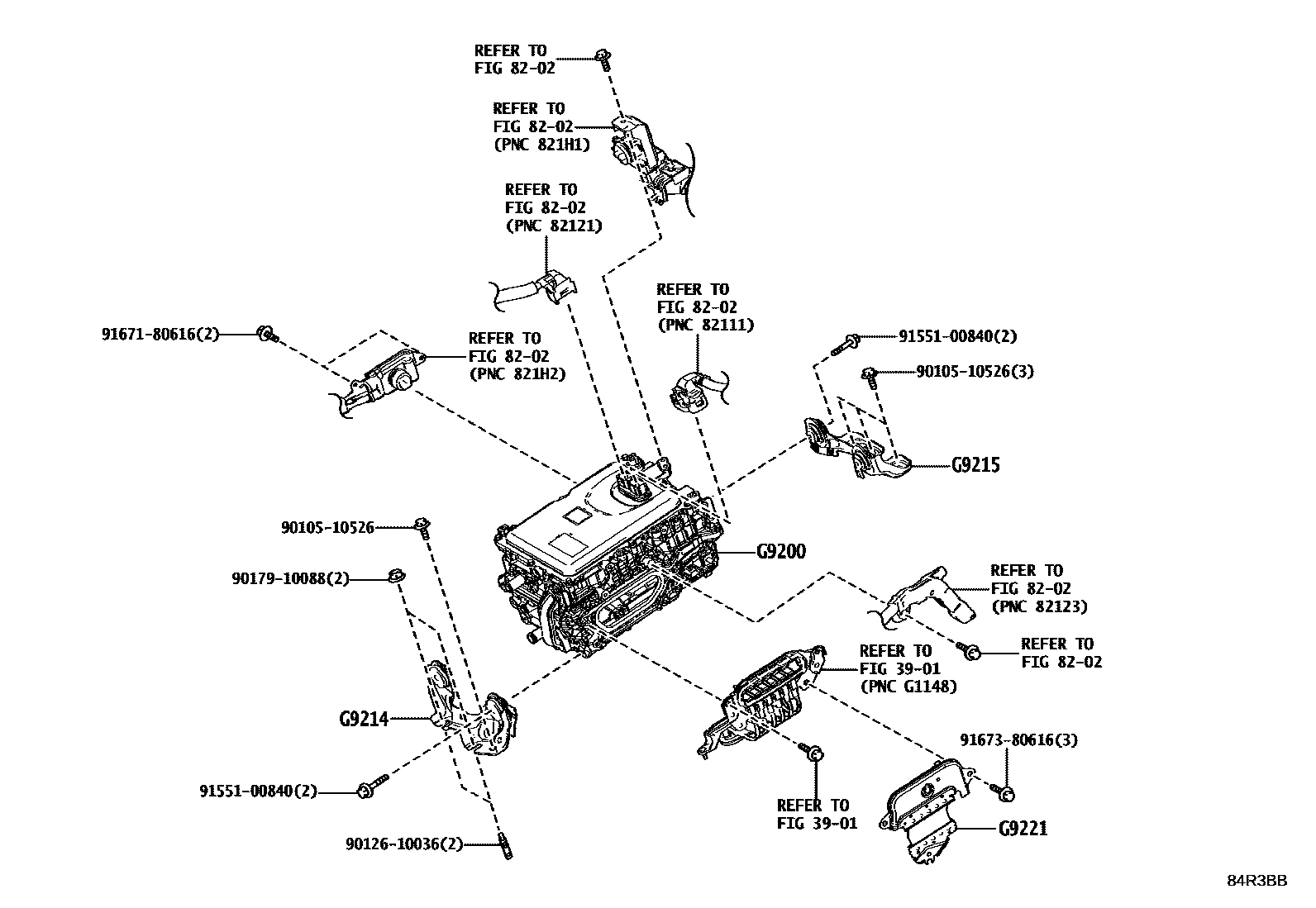

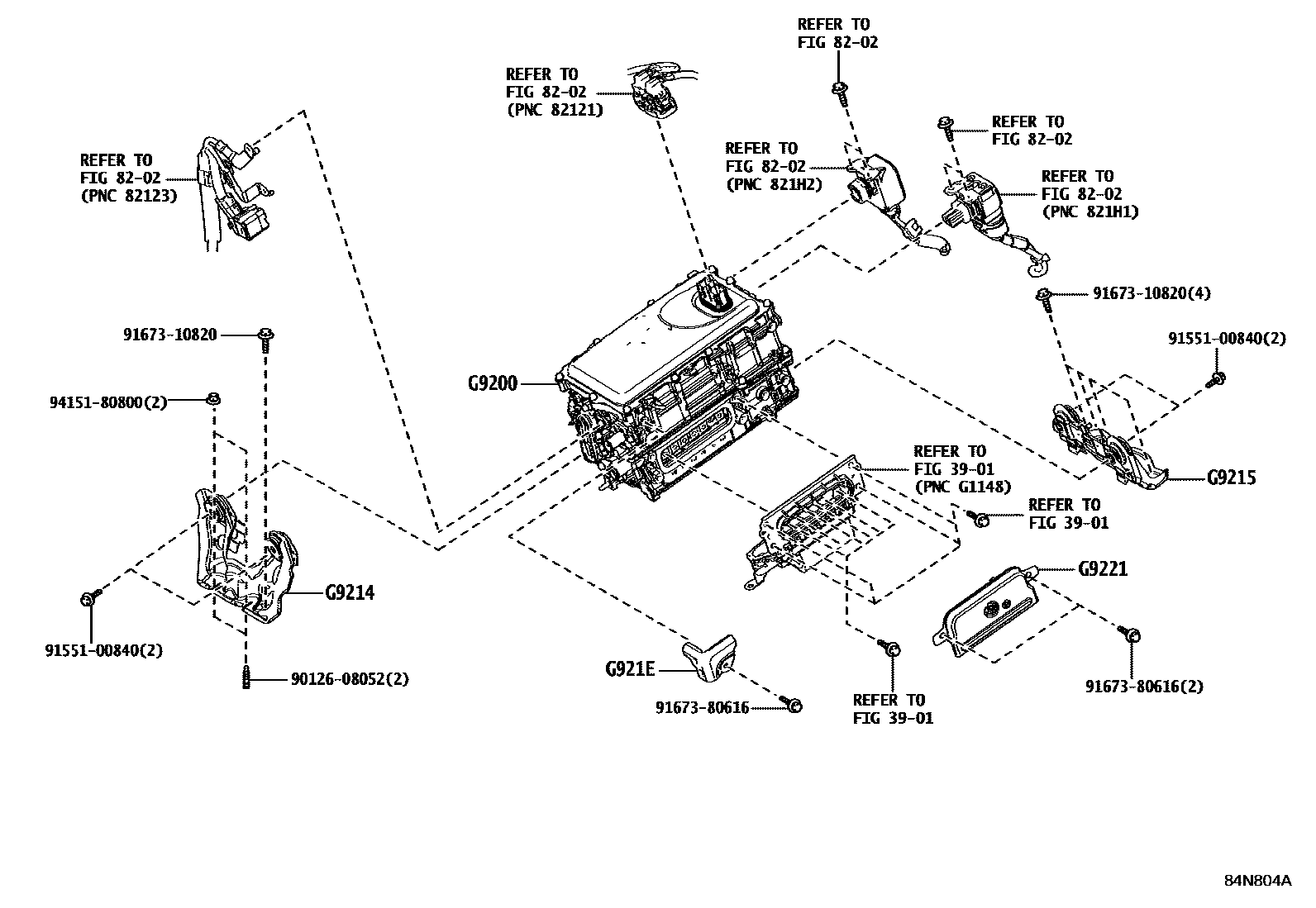

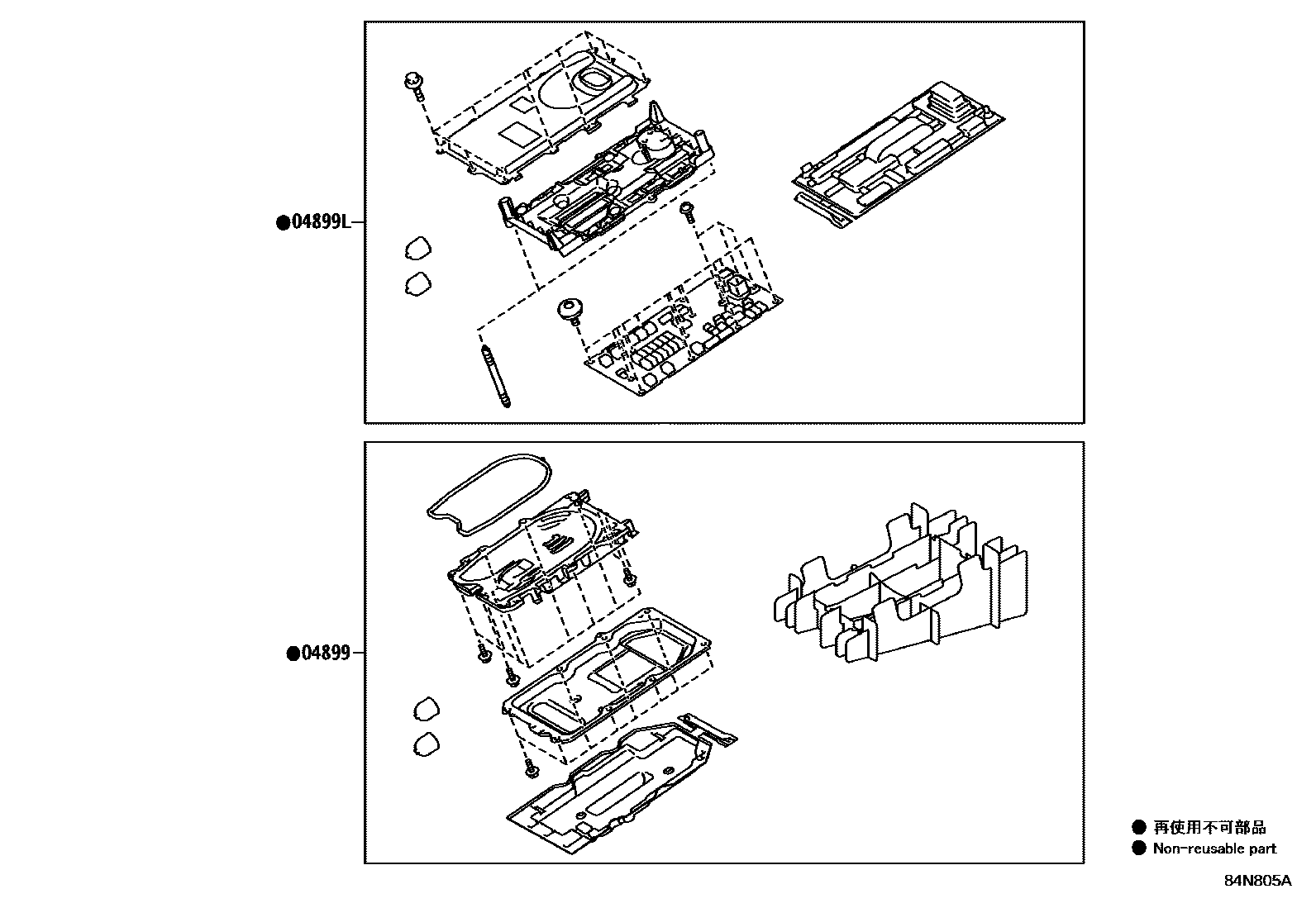

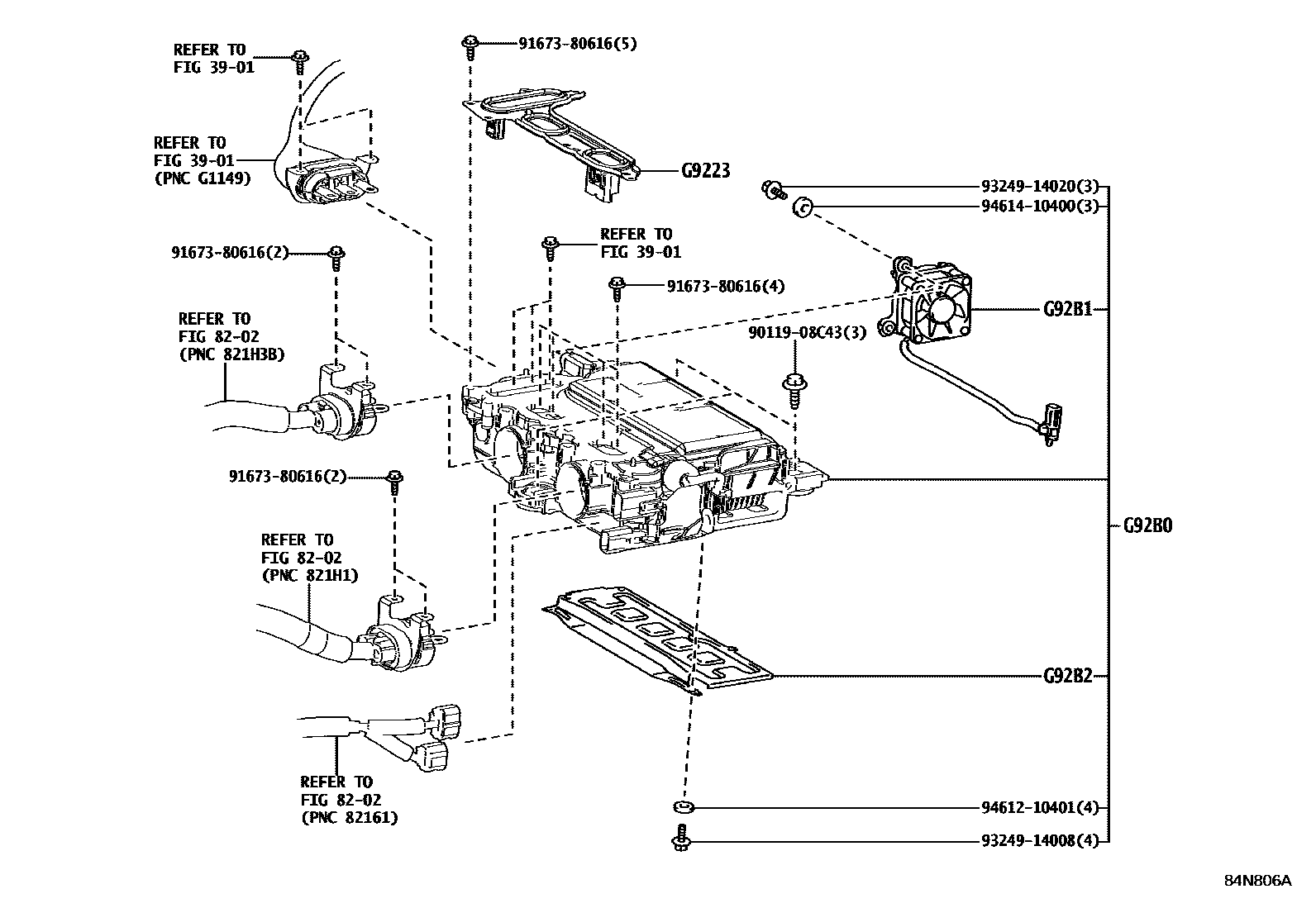

Toyota COROLLA EPC diagram 8431, HV逆变器, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04899 | Toyota part | 04899-47110 |
| 04899L | Toyota part | 04899-47172 · 04899-47183 |
| G9200 | Inverter assembly with converter | G9200-49136 · G9200-49146 · G92A0-47220 · G92A0-47231 |
| G9214 | No. 1 inverter bracket | G9214-28090 · G9214-47070 |
| G9215 | No. 2 inverter bracket | G9215-28050 · G9215-28060 · G9215-47050 |
| G921E | Inverter protection device | G921E-47010 |
| G9221 | Inverter cover | G9022-28030 · G9022-47050 |
| G9223 | Inverter terminal cover | G9223-47030 |
| G92B0 | Rear HV motor control inverter assembly | G92B0-76020 |
| G92B1 | Toyota part | G92B1-47010 |
| G92B2 | Toyota part | G92B2-47010 |
