Toyota COROLLA 空气囊 — Figure 8421

Toyota COROLLA EPC diagram 8421, 空气囊, with 1 images and 7 PNC and OE references.

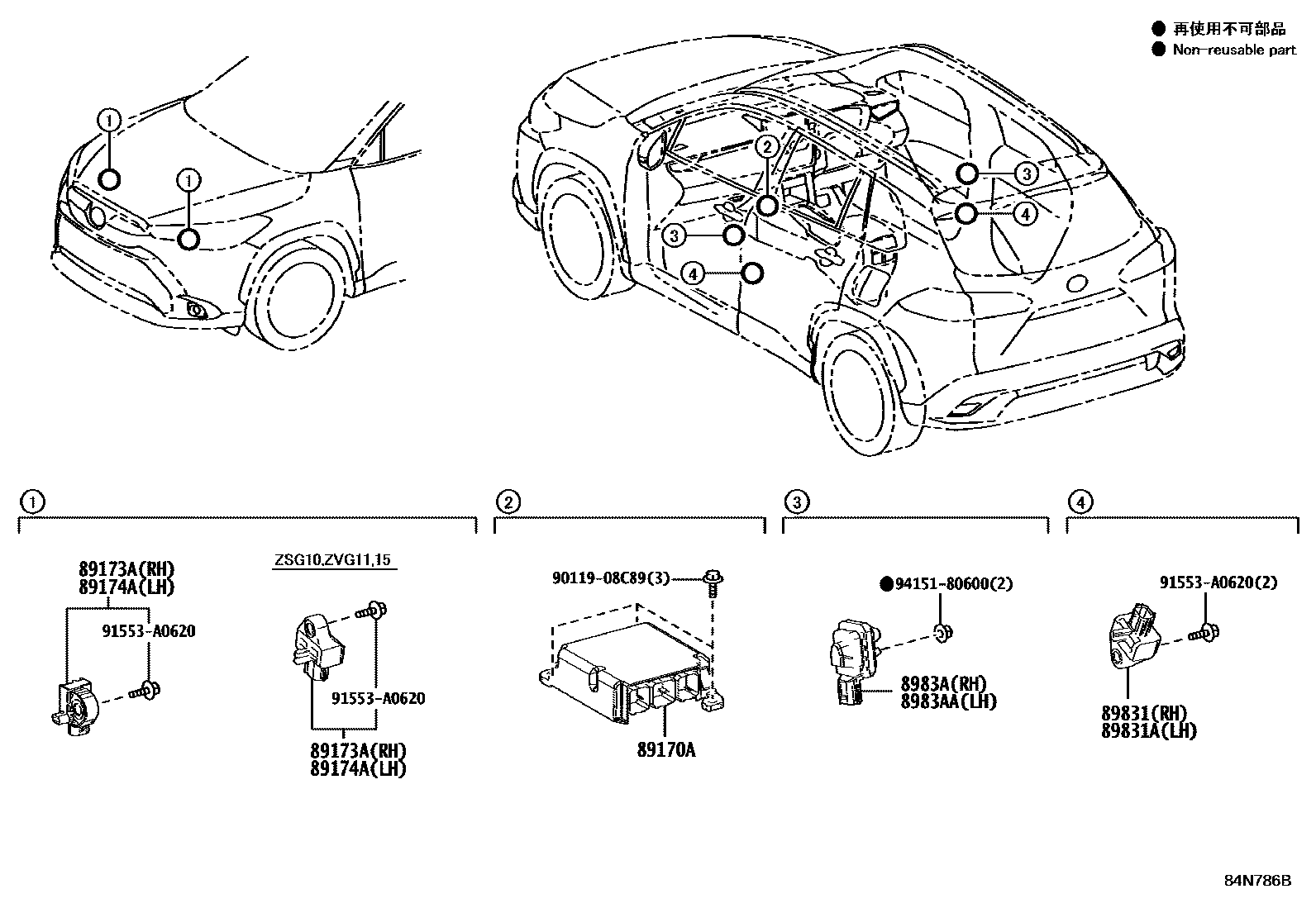

Toyota COROLLA 空气囊 EPC diagram — 84N786B
空气囊 — 84N786B (202108 – 999999)

PNC and OE references

PNCPart nameOE numbers
89170AAir bag ECU assembly89170-16160 · 89170-16170 · 89170-16240
89173ARight front air bag sensor89173-49505 · 89173-59415
89174ALeft front air bag sensor89173-49505 · 89173-59415
89831Toyota part89831-42060 · 89831-47050
89831AToyota part89831-42060 · 89831-47050
8983AToyota part8983A-12030 · 8983A-52011
8983AAToyota part8983A-12030 · 8983A-52011
