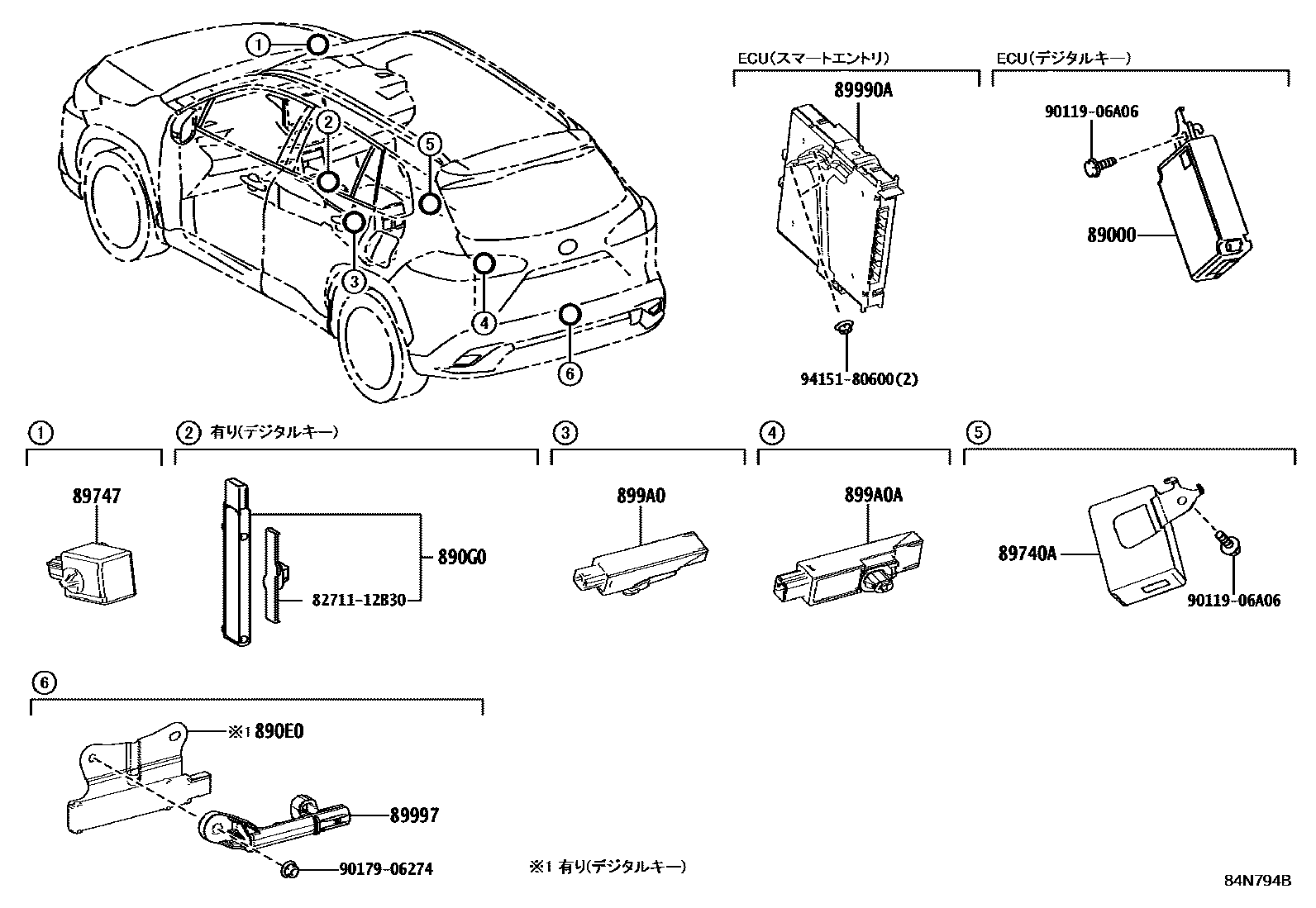

Toyota COROLLA 遥控门锁 — Figure 8420
Toyota COROLLA EPC diagram 8420, 遥控门锁, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89000 | Toyota part | 89000-16010 · 89000-16020 |
| 890E0 | Toyota part | 890E0-16010 |
| 890G0 | Toyota part | 890G0-V1010 |
| 89740A | Toyota part | 89740-16020 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 89990A | Smart key ECU assembly | 899H0-16110 · 899H0-16120 · 899H0-16190 · 899H0-16210 · 899H0-16220 · 899H0-16230 |
| 89997 | electronic key antenna | 89997-30100 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-12080 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-12130 |
