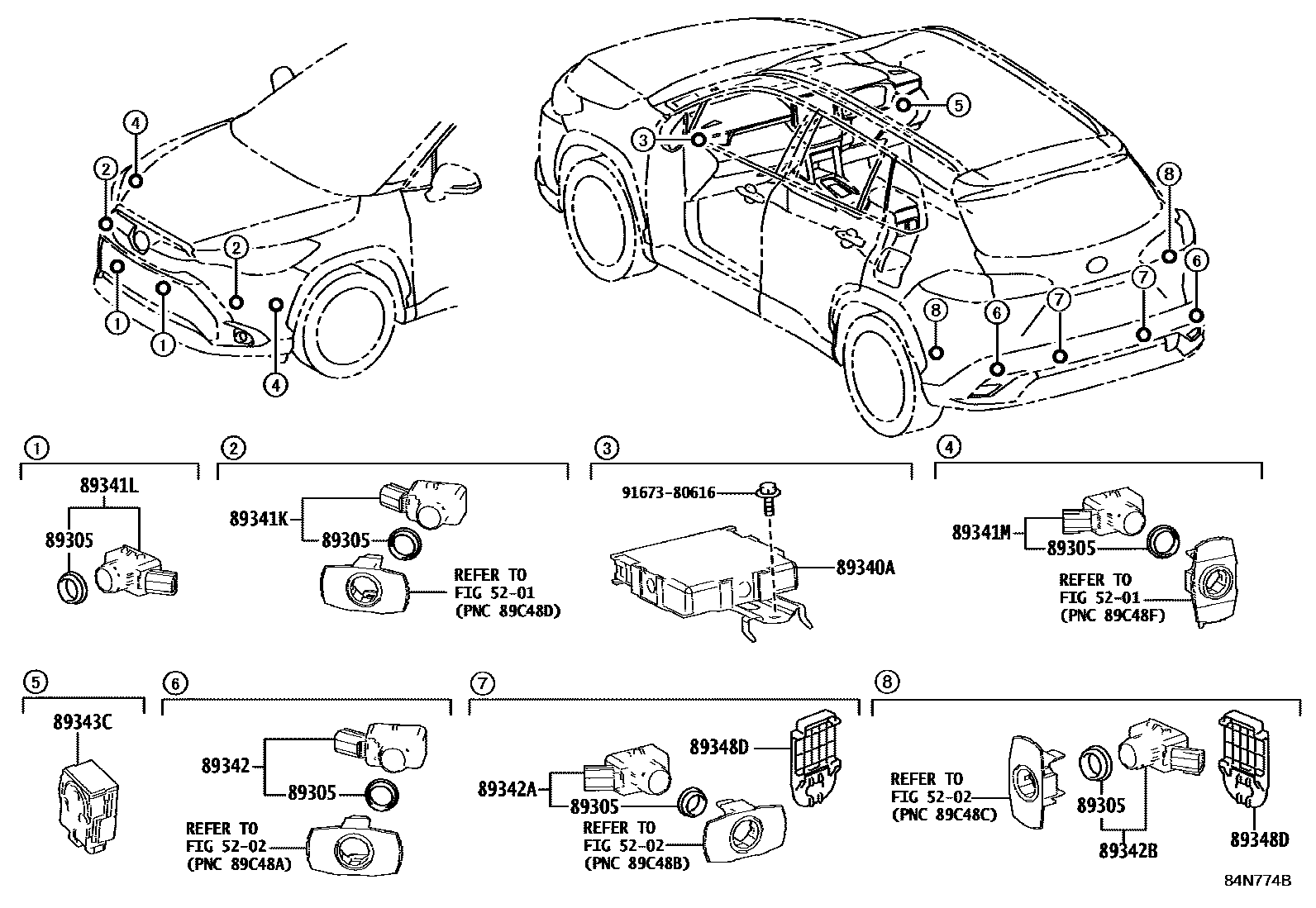

Toyota COROLLA 测距雷达和倒车雷达 — Figure 8417
Toyota COROLLA EPC diagram 8417, 测距雷达和倒车雷达, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89305 | Toyota part | 89305-52010 |
| 89340A | Distance warning ECU assembly | 89340-16050 · 89340-16061 · 89340-16081 |
| 89343C | No. 1 distance warning buzzer | 89343-48010 |
| 89348D | Ultrasonic sensor clip | 89348-50220 |
