Toyota COROLLA ABS 和 VSC — Figure 8414

Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 1 images and 7 PNC and OE references.

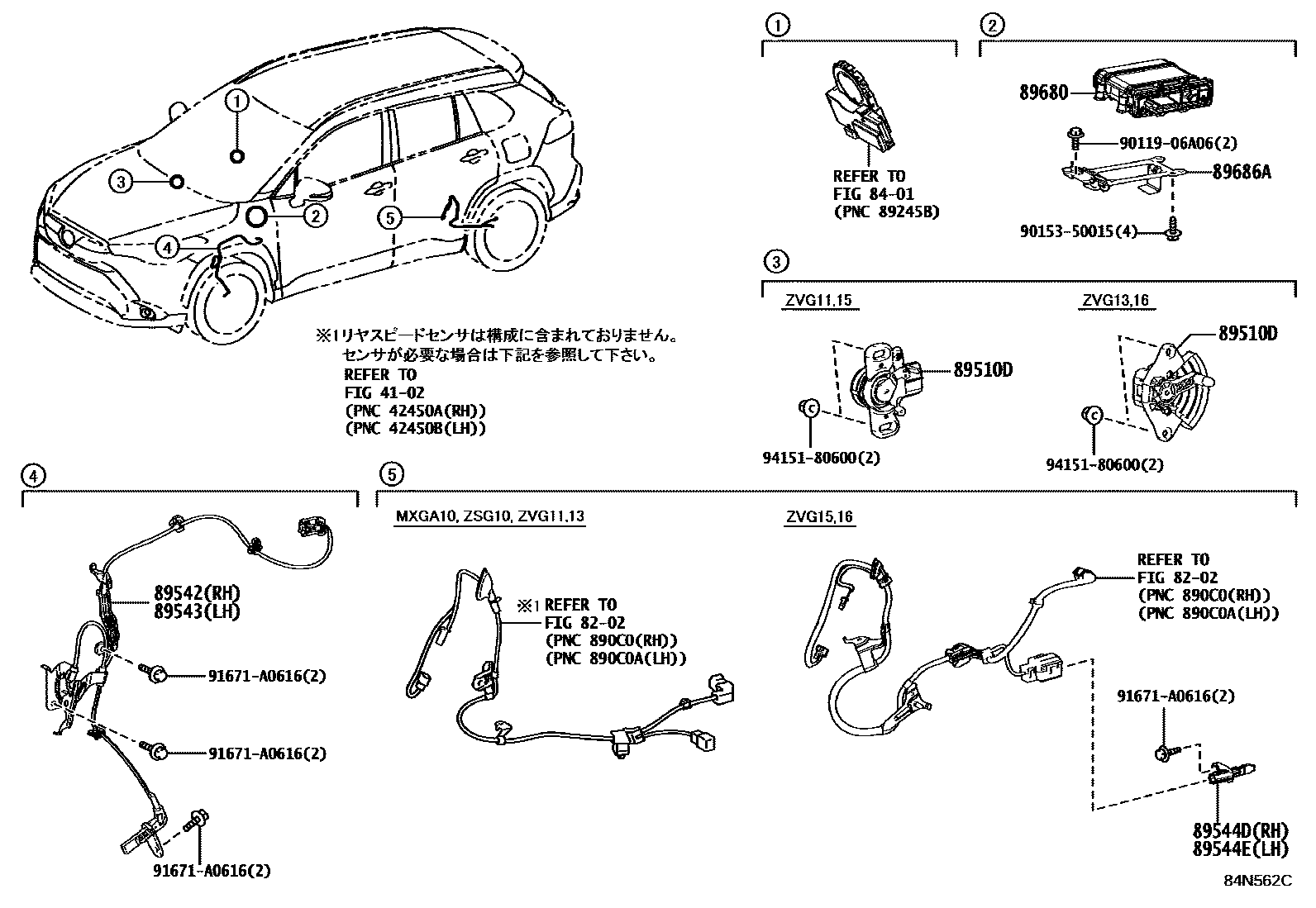

Toyota COROLLA ABS 和 VSC EPC diagram — 84N562C
ABS 和 VSC — 84N562C (202108 – 999999)

PNC and OE references

PNCPart nameOE numbers
89510DBrake pedal stroke sensor assembly89510-47030 · 89510-K0021
89542Right front wheel speed sensor89542-12130 · 89542-12150
89543Left front wheel speed sensor89543-12130 · 89543-12150
89544DToyota part89544-52050 · 89544-F4020
89544EToyota part89544-52050 · 89544-F4020
89680Brake control power supply assembly89680-48030
89686ANo. 1 brake control power bracket89686-12010
